How To Proceed With Troubleshooting

HINT:

The hand-held tester can be used at step 3, 4, 5, 7 and 10.

1. VEHICLE BROUGHT TO WORKSHOP
2. CUSTOMER PROBLEM ANALYSIS ( CUSTOMER PROBLEM ANALYSIS CHECK   )
3. CONNECT HAND-HELD TESTER TO DLC3

   HINT:

   If the display indicates a communication fault in the tool, inspect the DLC3.

4. CHECK DTC AND FREEZE FRAME DATA ( DTC CHECK/CLEAR   )

   HINT:

   Record or print DTC and freeze frame data, if needed.

5. CLEAR DTC AND FREEZE FRAME DATA ( DTC CHECK/CLEAR   )
6. VISUAL INSPECTION
7. SETTING CHECK (TEST) MODE DIAGNOSIS ( CHECK MODE PROCEDURE   )
8. PROBLEM SYMPTOM CONFIRMATION

   HINT:

   If the engine does not start, perform steps 10 and 12 first.

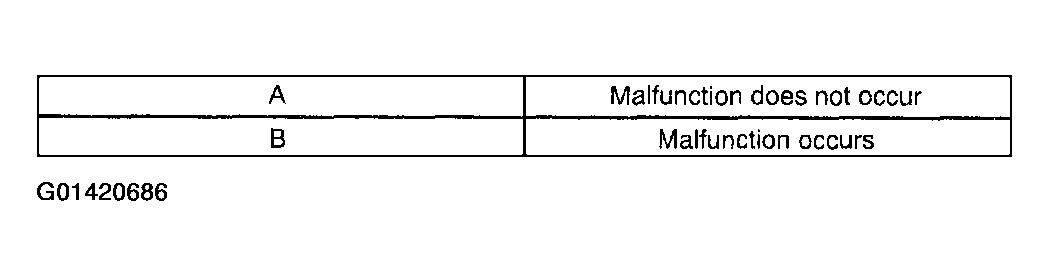

   Fig 1: Problem Symptom Confirmation Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. B: GO TO STEP   10
   2. A: GO TO NEXT STEP.
9. SYMPTOM SIMULATION
10. DTC CHECK ( DTC CHECK/CLEAR   )

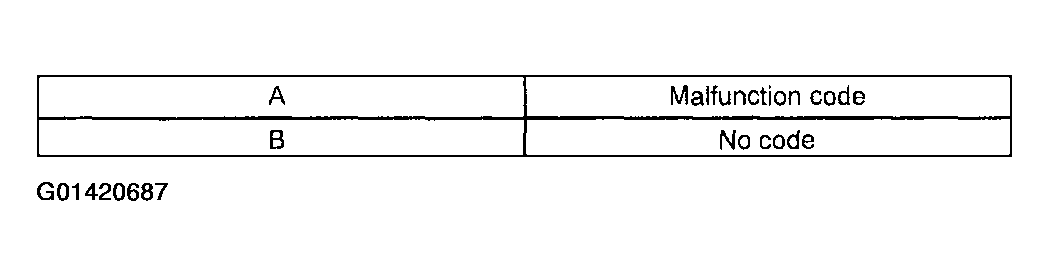

    Fig 2: DTC Check Table

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: GO TO STEP   12
    2. A: GO TO NEXT STEP.
11. DTC CHART ( DIAGNOSTIC TROUBLE CODE CHART   )

    GO TO STEP   14

12. BASIC INSPECTION ( BASIC INSPECTION   )

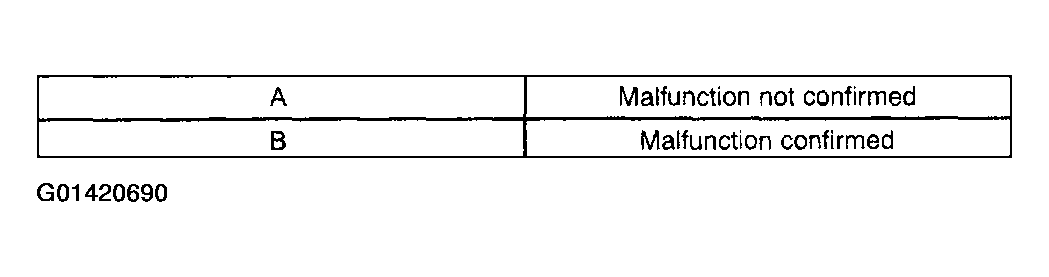

    Fig 3: Basic Inspection Chart

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: GO TO STEP   17
    2. A: GO TO NEXT STEP.
13. PROBLEM SYMPTOMS TABLE ( PROBLEM SYMPTOMS TABLE   )

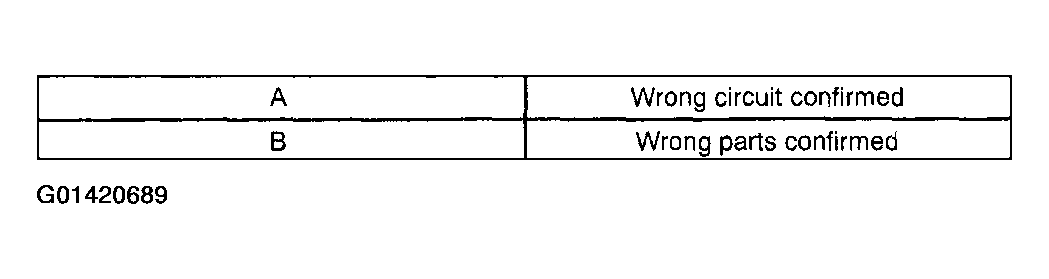

    Fig 4: PROBLEM SYMPTOMS TABLE

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: GO TO STEP   17
    2. A: GO TO NEXT STEP.
14. CHECK ECM POWER SOURCE CIRCUIT ( ECM POWER SOURCE CIRCUIT   )
15. CIRCUIT INSPECTION

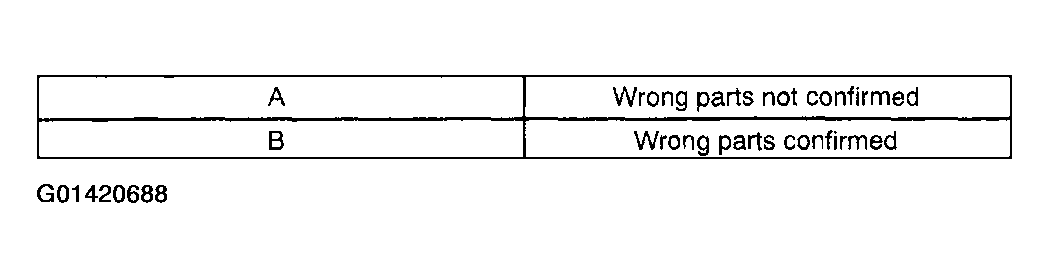

    Fig 5: Circuit Inspection Chart

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. B: GO TO STEP   18
    2. A: GO TO NEXT STEP.
16. CHECK FOR INTERMITTENT PROBLEMS ( CHECK FOR INTERMITTENT PROBLEMS   )

    GO TO STEP   18

17. PARTS INSPECTION
18. IDENTIFICATION OF PROBLEM
19. ADJUSTMENT AND/OR REPAIR
20. CONFIRMATION TEST

    END
