2004 Lexus GX 470FACTORY OEM SERVICE PROCEDURE

Camshaft Position Sensor: Replacement

  1. DRAIN ENGINE COOLANT (See  COOLANT REPLACEMENT (2UZ-FE)  )
  2. REMOVE FAN AND GENERATOR V BELT (See  FAN AND GENERATOR V BELT  )
  3. REMOVE OIL COOLER PIPE (See  REPLACEMENT  )
  4. REMOVE TIMING BELT COVER SUB-ASSY NO.3 LH (See  REPLACEMENT  )
  5. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt, stud bolt and camshaft position sensor.

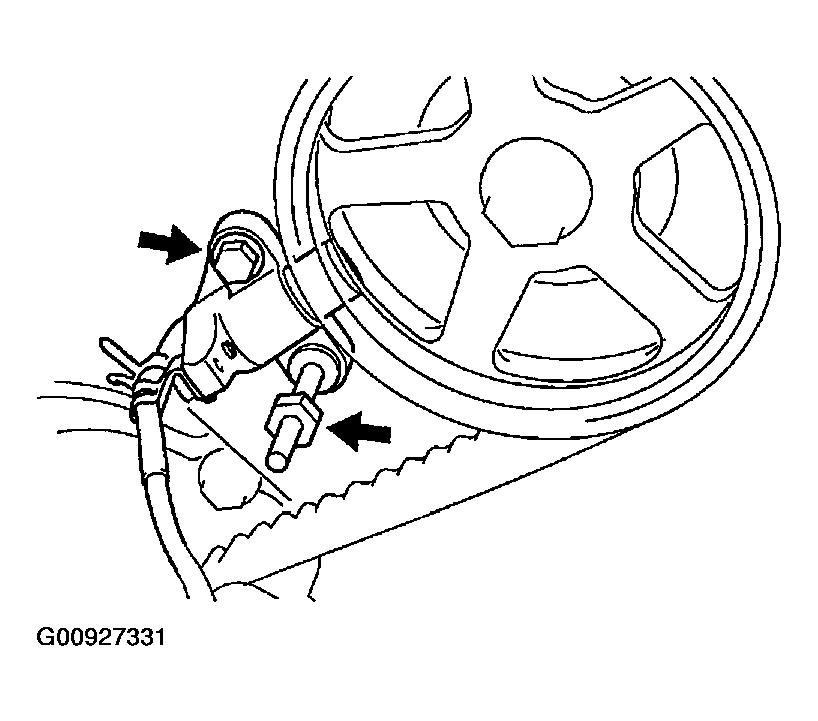

    Fig 1: Removing Bolt
    G00927331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL CAMSHAFT POSITION SENSOR
    1. Install the camshaft position sensor with bolt and stud bolt.
      1. Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
  7. INSTALL TIMING BELT COVER SUB-ASSY NO.3 LH (See  REPLACEMENT  )
  8. INSTALL OIL COOLER PIPE (See  REPLACEMENT  )
  9. INSTALL FAN AND GENERATOR V BELT (See  FAN AND GENERATOR V BELT  )
  10. REFILL ENGINE COOLANT (See  COOLANT REPLACEMENT (2UZ-FE)  )
  11. CHECK FOR ENGINE COOLANT LEAKS (See  COOLING SYSTEM (2UZ-FE)  )
