Transmitter Sub-ASSY Module Set Door Control: Replacement
2004 Lexus GX 470SECTION Replacement
HINT:
The installation is in the reverse order of the removal.
- REMOVE TRANSMITTER SUB-ASSY MODULE SET DOOR CONTROL NOTE: Special caution should be taken for handling each component as they are precise electronic components.
- Using a screwdriver, remove the screw.

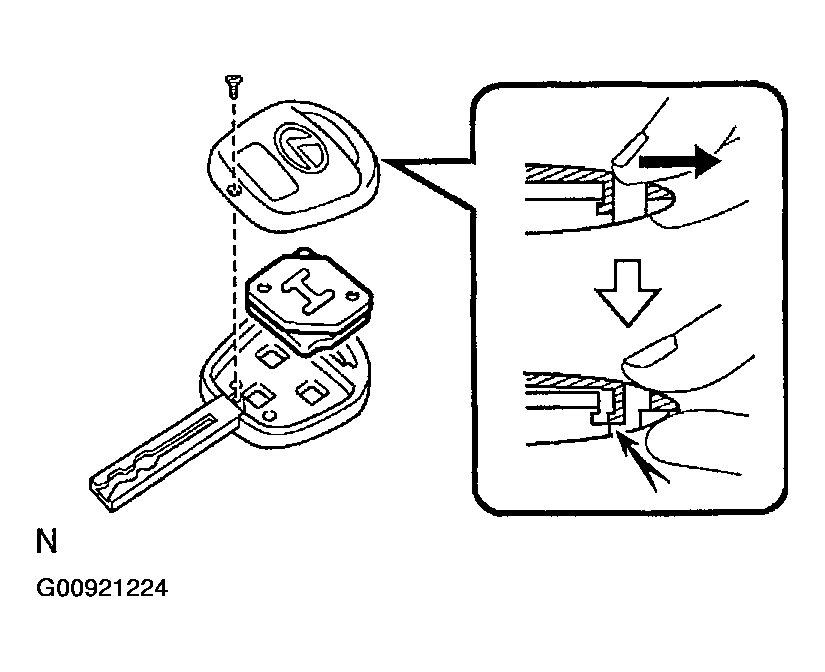

- Push the cover with your finger, as shown in the illustration, so a gap appears, then pry out the cover using that gap.
NOTE: Do not forcibly pry the cover up.
