Absorber Control Ecu: Replacement
- REMOVE FRONT DOOR SCUFF PLATE LH (See REPLACEMENT )
- REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (See REPLACEMENT )
- REMOVE INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH (See REPLACEMENT )
- REMOVE ABSORBER CONTROL ECU
- Disconnect the 2 absorber control ECU connectors.

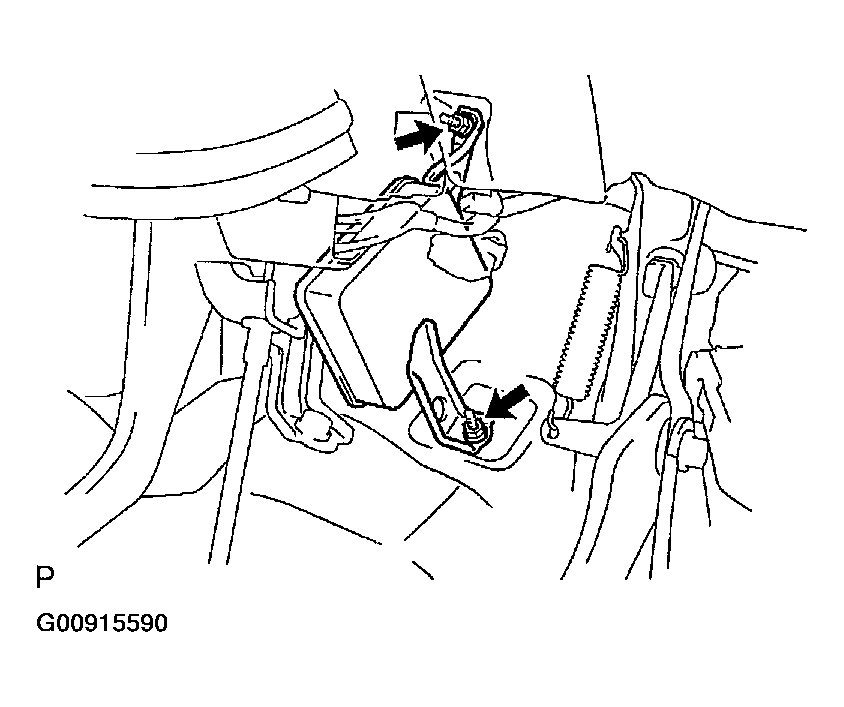

- Remove the 2 nuts and absorber control ECU.
- INSTALL ABSORBER CONTROL ECU
- Install the absorber control ECU with the 2 nuts.
Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
- Connect the 2 absorber control ECU connectors.
- Install the absorber control ECU with the 2 nuts.
