2004 Lexus ES 330FACTORY OEM SERVICE PROCEDURE
On-Vehicle Inspection
WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT INTAKE AIR CONTROL SYSTEM

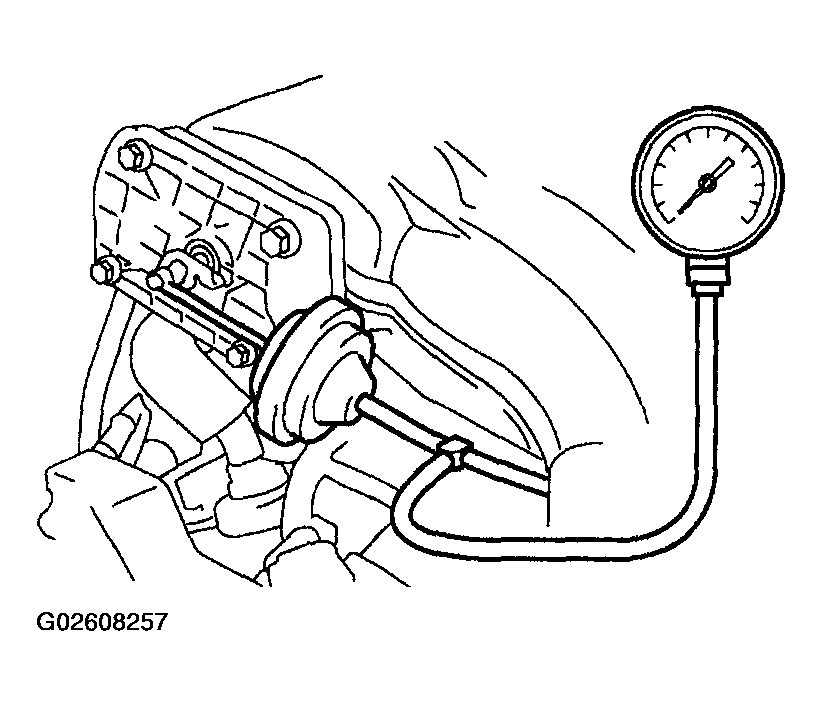

- Using a three-way connector, connect vacuum gauge to the actuator hose.
- Connect the hand-held tester to the DLC 3.
- Start the engine.
- Select the active test mode according to the message on the hand-held tester.
Vacuum:
VACUUM TABLEVSV ON Approx. 27 kPa (200 mm Hg, 7.9 in.Hg) VSV OFF 0 kPa (0 mm Hg, 0 in.Hg.)
