INSPECT MASS AIR FLOW METER

Output voltage inspection.
1. Apply battery voltage across terminals 1 (+B) and 2 (E2G).
2. Connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
3. Blow air into the MAF meter, and check that the voltage output fluctuates.
Resistance inspection.
1. Using an ohmmeter, measure the resistance between terminals 4 (THA) and 5 (E2).

Resistance:

TERMINAL AND RESISTANCE TEMPERATURE

Terminals	Resistance	Temperature
THA - E2	13.6 to 18.4 kΩ	-20°C (-4°F)
THA - E2	2.21 to 2.69 kΩ	20°C (68°F)
THA - E2	0.493 to 0.667 kΩ	60°C (140°F)

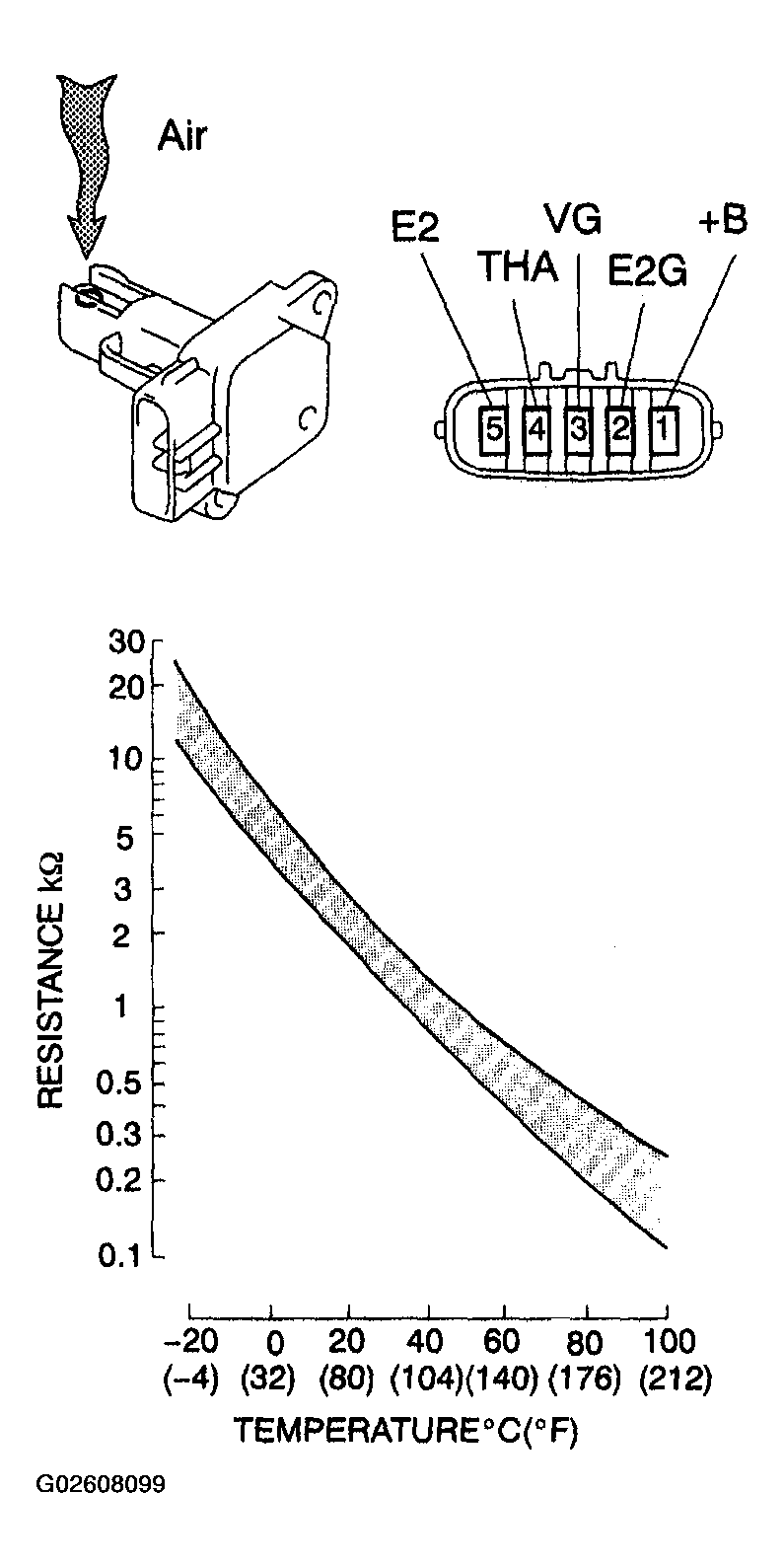

Fig 1: Resistance To Temperature Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSY
1. Resistance inspection.
  1. Using an ohmmeter, measure the resistance between the terminals.
  Resistance: 6.9 to 7.9 Ω at 20°C (68°F)
2. Movement inspection.
  1. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, and check the movement of the valve.

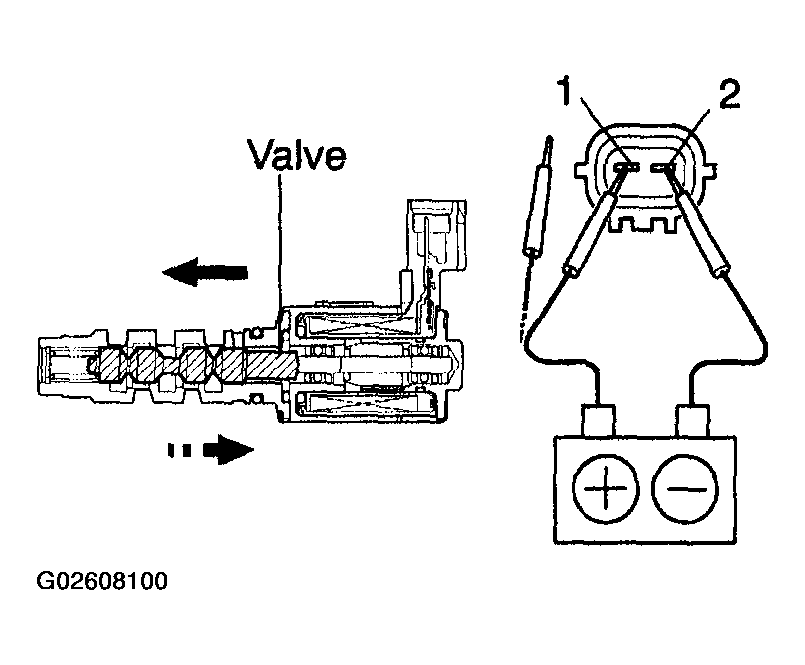

  Fig 2: Connecting Battery To Terminal 1 & 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Confirm the valve moves freely and does not stick in any position.

HINT:

Dirt or foreign objects in the oil line cause the subtle pressure leaks in the valve. The pressure leak will cause the camshaft to advance. This condition will usually set a DTC.

INSPECT ACCELERATOR PEDAL ROD ASSY

Resistance inspection
1. Using an ohmmeter, measure the resistance between the terminals.

Resistance:

ACCELERATOR PEDAL ROD

Terminal	Resistance
3 (VPA2) - 5 (EP1)	5.0 kΩ or less
6 (VPA1) - 2 (EP2)	5.0 kΩ or less
4 (VCP1) - 5 (EP1)	2.25 to 4.75 kΩ
1 (VCP2) - 2 (EP2)	2.25 to 4.75 kΩ

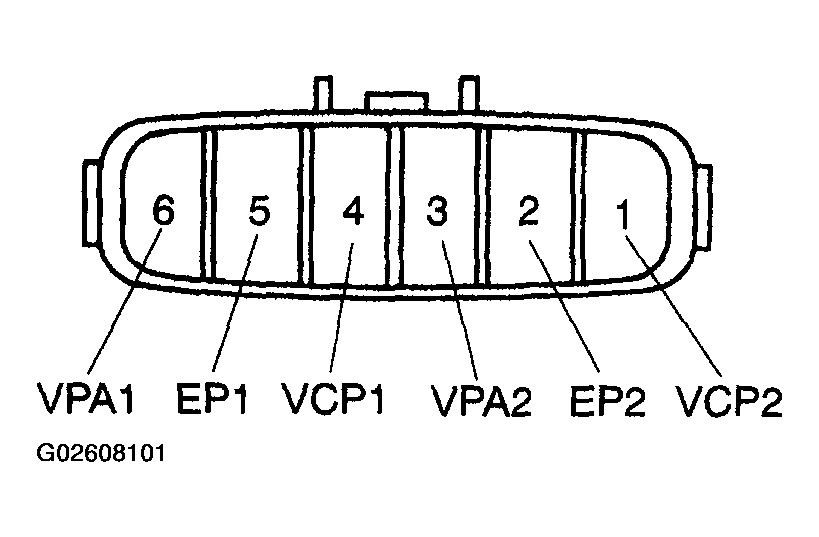

Fig 3: Measuring Resistance Between Accelerator Pedal Rod

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT THROTTLE BODY ASSY

Resistance inspection
1. Using an ohmmeter, measure the resistance between the terminals.

Resistance:

TERMINAL AND RESISTANCE TEMPERATURE

Terminals	Resistance	Temperature
2 (M+) - 1 (M-)	0.3 to 100 Ω	20°C (68°F)

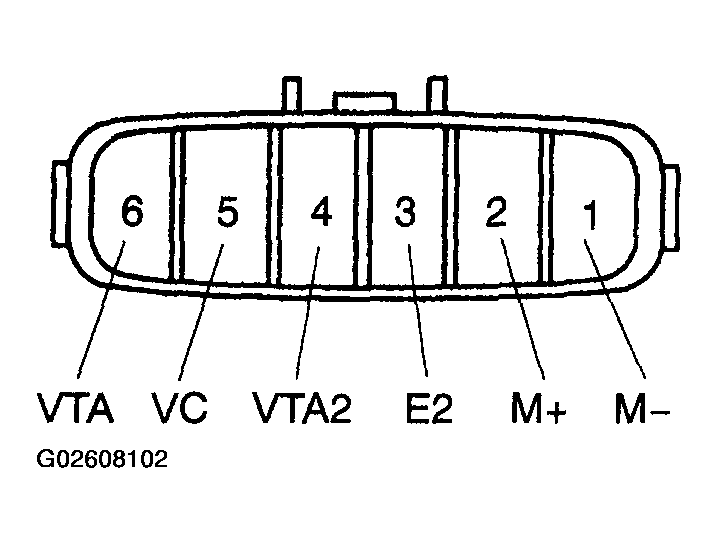

Fig 4: Measuring Resistance Between Throttle Body

INSPECT E.F.I. ENGINE COOLANT TEMPERATURE SENSOR
1. Resistance inspection.
  1. Using an ohmmeter, measure the resistance between each terminal.
  Resistance:
  - 2.32 to 2.59 kΩ at Approx. 20°C (68°F)
  - 0.310 to 0.326 kΩ at Approx. 80°C (126°F)
NOTE: While checking the engine coolant temperature sensor in water, be careful not to allow water to go into the terminals, and after checking, dry the sensor.
