WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: COMPONENTS: See COMPONENTS .

REMOVE REAR DOOR SCUFF PLATE RH (See ROOF HEADLINING ASSY )
REMOVE REAR DOOR WEATHERSTRIP RH (See ROOF HEADLINING ASSY )
REMOVE BACK DOOR WEATHERSTRIP (See ROOF HEADLINING ASSY )
REMOVE BACK DOOR SCUFF PLATE (See ROOF HEADLINING ASSY )
REMOVE QUARTER TRIM PANEL ASSY FRONT RH (See ROOF HEADLINING ASSY )
REMOVE MULTI-DISPLAY CONTROLLER W/BRACKET
1. Disconnect the connectors.
2. Remove the 3 bolts and the multi-display controller w/bracket.

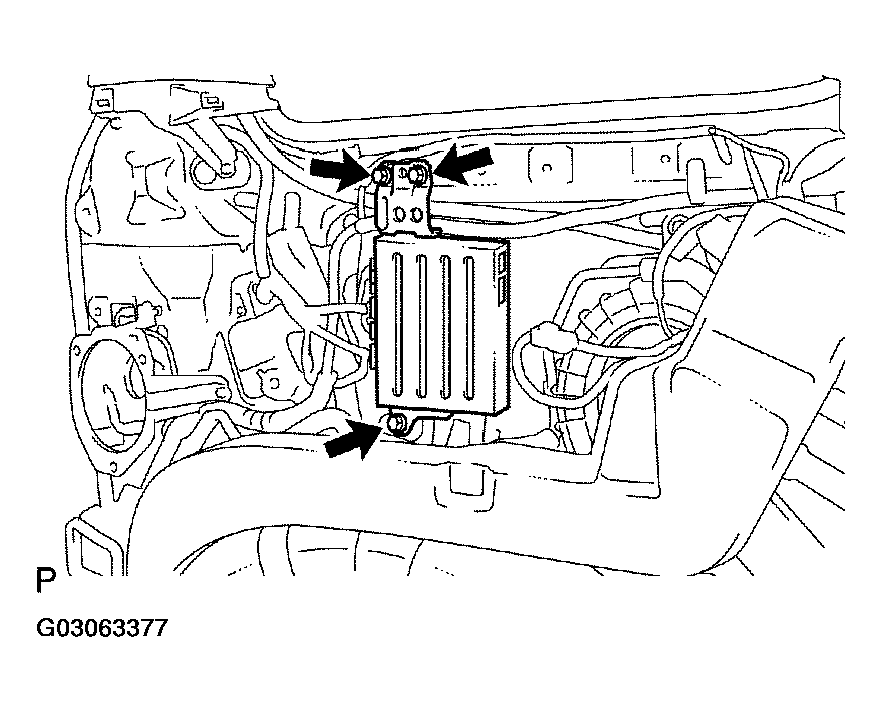

Fig 1: Removing Multi-Display Controller W/Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
1. Remove the 2 screws and the multi-display controller bracket A.

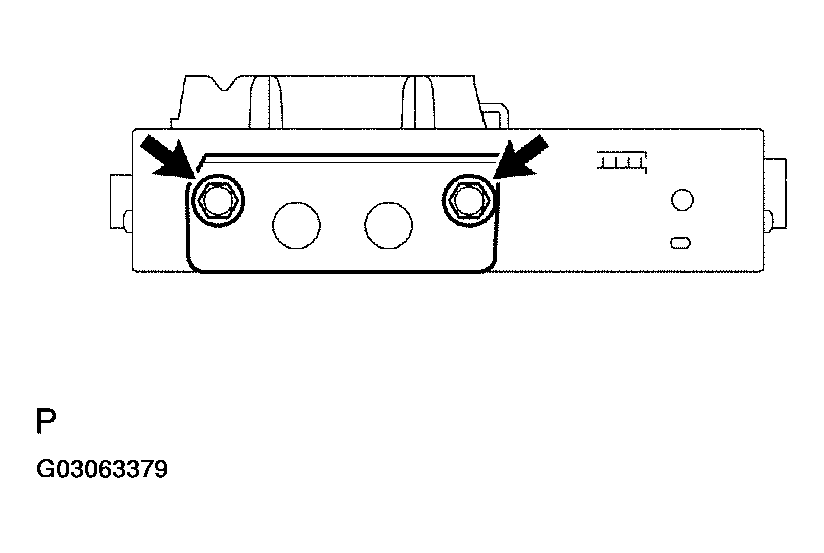

Fig 2: Removing Multi-Display Controller Bracket (A)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTI-DISPLAY CONTROLLER BRACKET B
1. Remove the 2 screws and the multi-display controller bracket B.

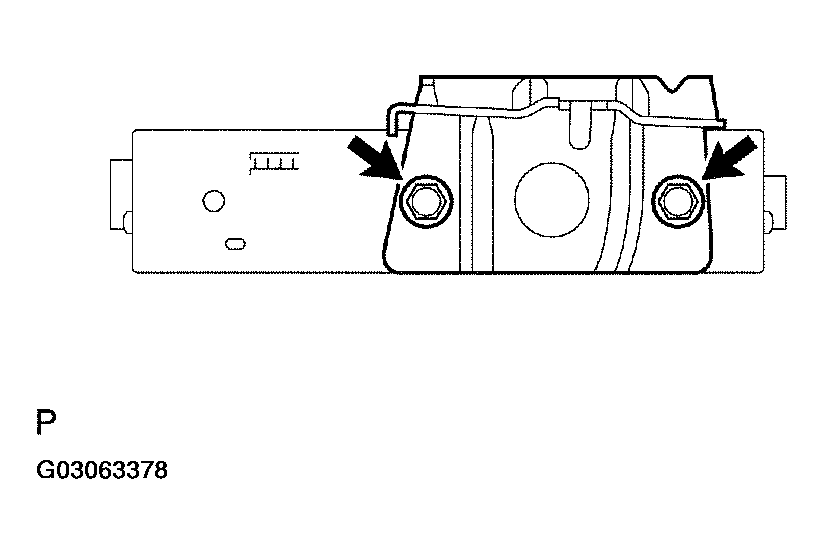

Fig 3: Removing Multi-Display Controller Bracket (B)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSY
