2004 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

Ignition System (3MZ-FE): Inspection

INSPECT SPARK PLUG
NOTE:
- Do not use a wire brush to clean the spark plug.
- Do not try to adjust the electrode gap of a used spark plug.
1. Inspect the resistance.
  1. Using an ohmmeter, measure the resistance between the insulation and body ground.
    Resistance: 10 MΩ or more

    If the resistance is not as specified, check the electrode gap.

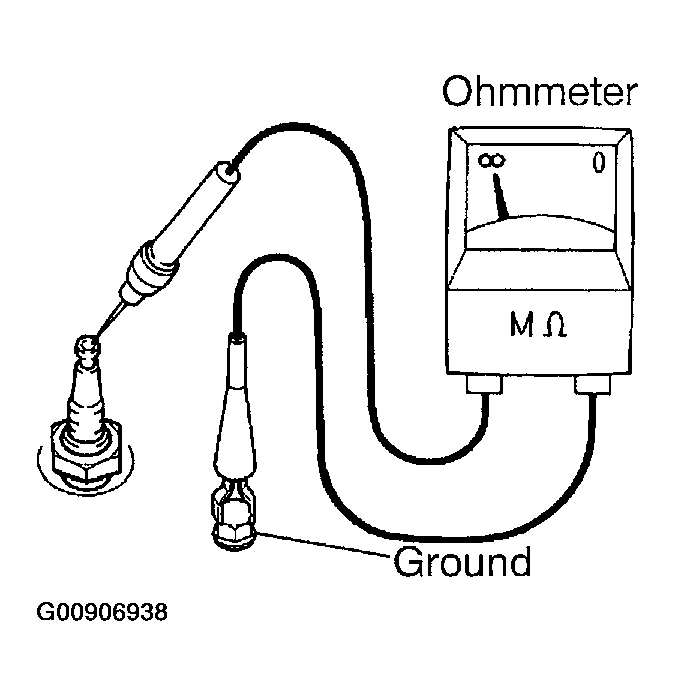

    Fig 1: Measuring Resistance Between Insulation And Body Ground
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Alternative inspection method.
  1. Quickly accelerate the engine speed to 4,000 rpm 5 times.
  2. Remove the spark plug.
  3. Visually check the spark plug.
  4. If the electrode is dry...OK.
  5. If the electrode is wet...Proceed to step (c).
  6. Reinstall the spark plug.

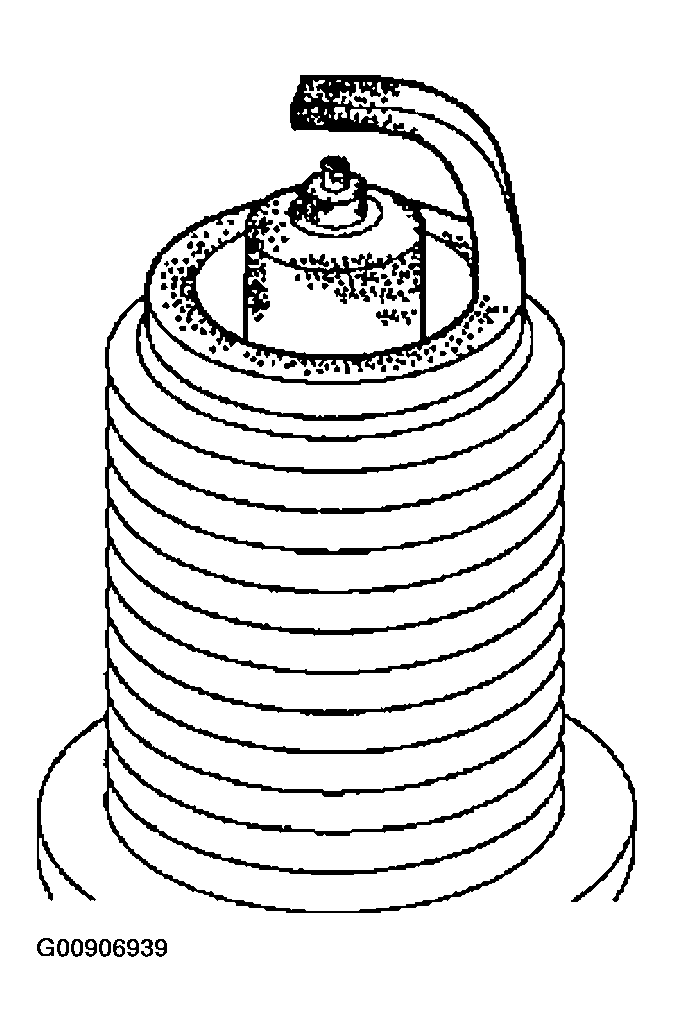

    Fig 2: Checking Spark Plug Electrode
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the appearance.
  1. Check the thread and insulator of the spark plug for damage.
    If damaged, replace the spark plug.

    Recommended spark plug:

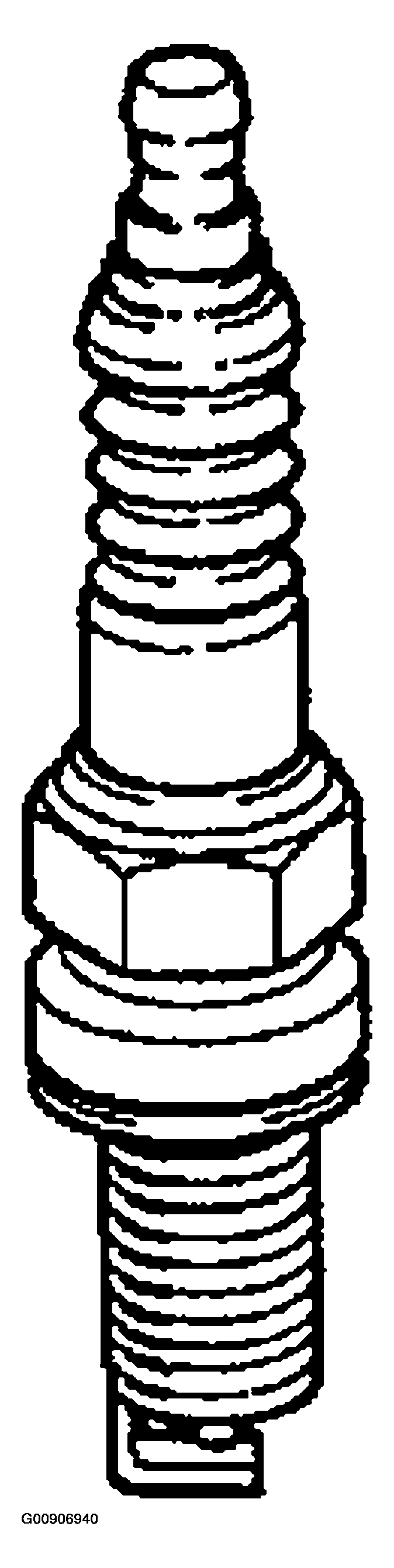

    Fig 3: Identifying Spark Plug
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
