2004 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

On-Vehicle Inspection

  1. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSY
    1. Check the operation.
      1. Connect the hand-held tester to the DLC3.
      2. Turn the ignition switch ON.
      3. Start the engine and allow it to warm up.
      4. Connect the hand-held tester, then select VVT from the ACTIVE TEST menu.
      5. Check the engine speed when the OCV is operated with the hand-held tester.

        Standard:

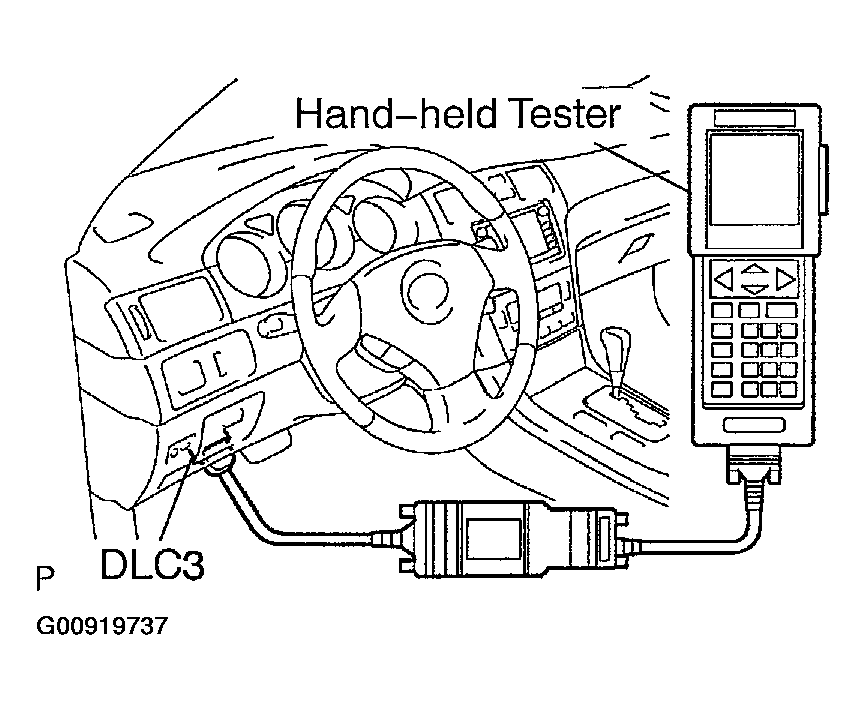

        Fig 1: Connecting Hand-Held Tester To DLC3
        G00919737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the operation is not as specified, inspect the camshaft timing oil control valve (see INSPECTION ).

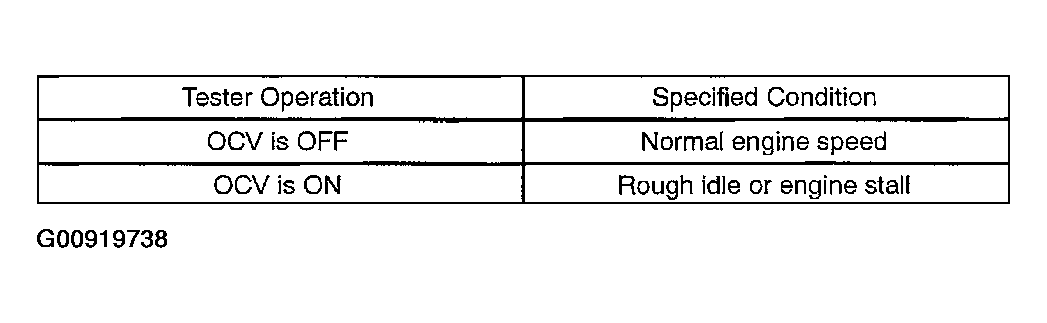

      Fig 2: Tester Operation Specified Conditions Table
      G00919738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT THROTTLE BODY ASSY
    1. Check the operation (throttle control motor).
      1. Turn the ignition switch ON.
      2. When turning the accelerator pedal position sensor lever, check the running sound of the motor. Also, check that there is no friction sound.

        If the operation is not as specified, inspect the throttle body (see INSPECTION ).

    2. Check the operation (throttle position sensor).
      1. Connect the hand-held tester to the DLC3.
      2. Turn the ignition switch ON.
      3. Check that the check engine warning light does not light up.
      4. Check that the throttle valve opening percentage (THROTTLE POS) of CURRENT DATA shows the standard value.

        Standard throttle valve opening percentage: 60 % or more

      NOTE: When checking the standard throttle valve opening percentage, the transmission is in the neutral position.
