SFI System (3MZ-FE): Inspection
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSY
- Inspect the resistance.

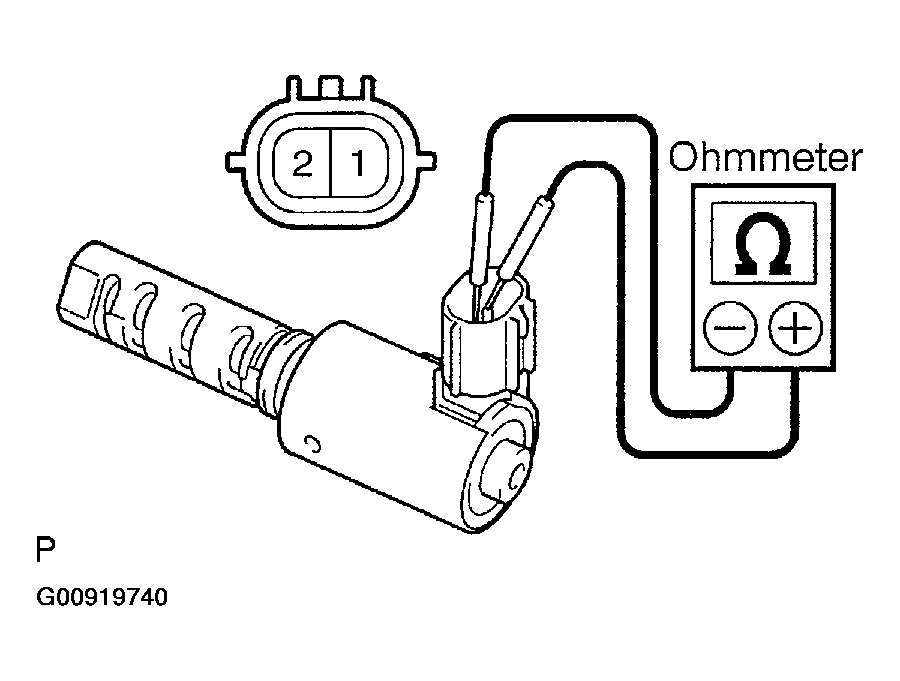

- Using an ohmmeter, measure the resistance between the terminals.

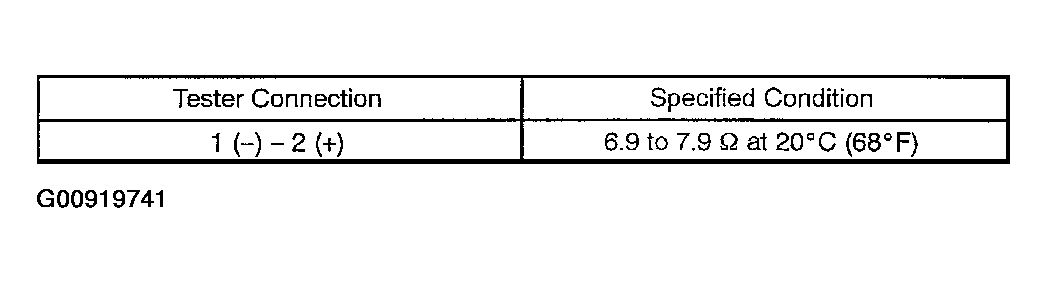

Standard:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the resistance is not as specified, replace the camshaft timing oil control valve.
- Using an ohmmeter, measure the resistance between the terminals.
- Check the operation.

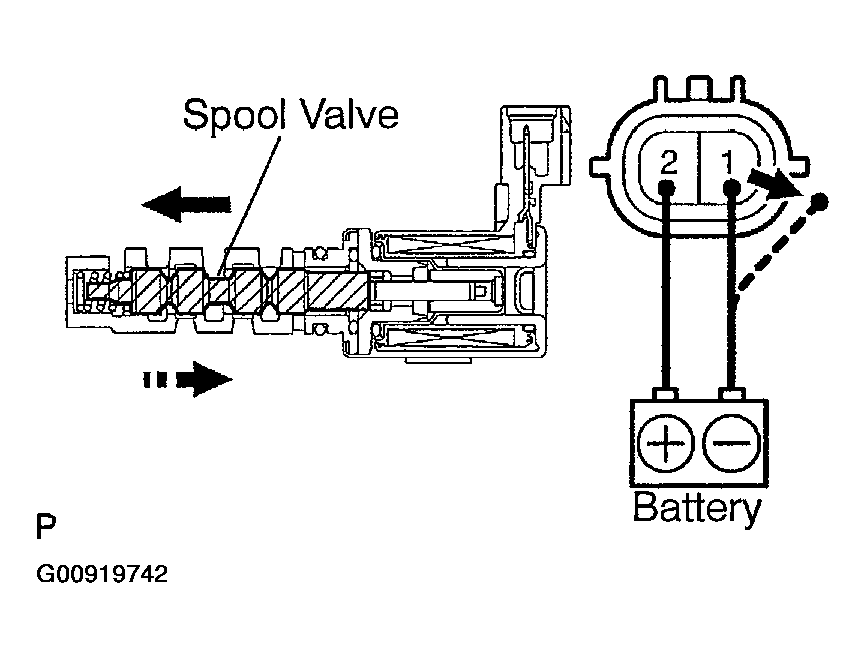

- Connect the positive (+) lead from the battery to terminal 2 (+) and negative (-) lead to terminal 1 (-), then check the movement of the spool valve.
- Inspect the resistance.
