2004 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

Knock Sensor, Intake Manifold (3MZ-FE): Replacement

  1. DISCHARGE FUEL SYSTEM PRESSURE (See  FUEL SYSTEM (3MZ-FE)  )
  2. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
  3. DRAIN ENGINE COOLANT (See  ENGINE COOLANT (3MZ-FE)  )
  4. REMOVE FRONT SUSPENSION UPPER BRACE CENTER (W/O TEMS) (See  REPLACEMENT  )
  5. REMOVE V-BANK COVER SUB-ASSY (See  REPLACEMENT  )
  6. REMOVE AIR CLEANER CAP SUB-ASSY (See  REPLACEMENT  )
  7. REMOVE EMISSION CONTROL VALVE SET (See  FUEL INJECTOR ASSY (3MZ-FE)  )
  8. REMOVE INTAKE AIR SURGE TANK (See  FUEL INJECTOR ASSY (3MZ-FE)  )
  9. REMOVE ENGINE MOVING CONTROL ROD
    1. Remove the pipe from the clamp.
    2. Remove the 4 bolts, then remove the engine moving control rod and setting condenser

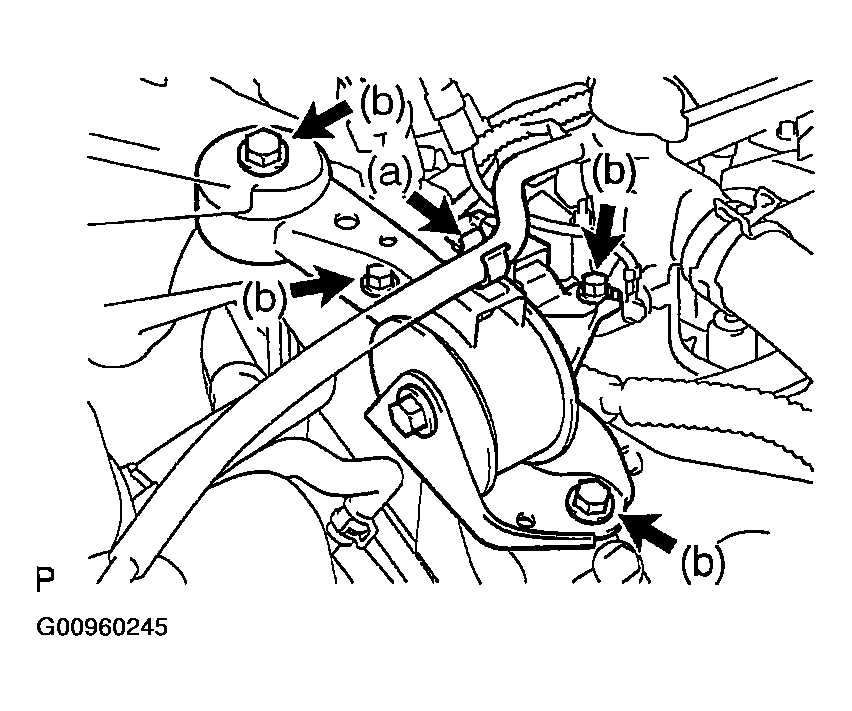

    Fig 1: Removing Engine Moving Control Rod
    G00960245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE INTAKE MANIFOLD
    1. Disconnect the fuel pipe No. 1
      1. Remove the fuel pipe clamp.
      2. Pinch the tube connector, then pull out the fuel pipe No. 1
      NOTE:
      • Check around the quick connector for dirt or mud before this operation. Remove the dirt if necessary.
      • Be careful of mud because the quick connector has an O-ring which seals the pipe and quick connector that can be contaminated.
      • Do not use any tools in this operation.
      • Do not bend or twist the nylon tube. Protect the quick connector by covering it with a vinyl or plastic bag
      • When the pipe and quick connector are stuck, push and pull the quick connector to release and pull the quick connector out carefully.
