2004 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

ECM (3MZ-FE): Replacement

  1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
  2. REMOVE FRONT DOOR SCUFF PLATE RH (See  INSTRUMENT PANEL SAFETY PAD SUB-ASSY  )
  3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. (See  INSTRUMENT PANEL SAFETY PAD SUB-ASSY  )
  4. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See  INSTRUMENT PANEL SAFETY PAD SUB-ASSY  )
  5. REMOVE STEREO COMPONENT AMPLIFIER ASSY
    1. Disconnect the 3 stereo component amplifier connectors.
    2. Remove the 2 nuts, then remove the stereo component amplifier.

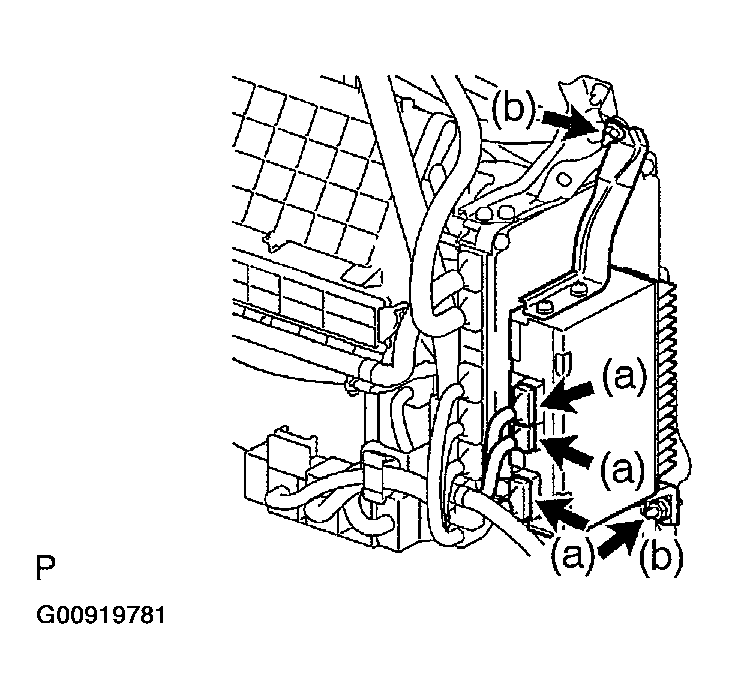

      Fig 1: Removing Stereo Component Amplifier Assy
      G00919781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ECM
    1. Remove the wire harness clamp.
    2. Disconnect the 5 ECM connectors.
    3. Remove the 2 nuts, then remove the ECM.

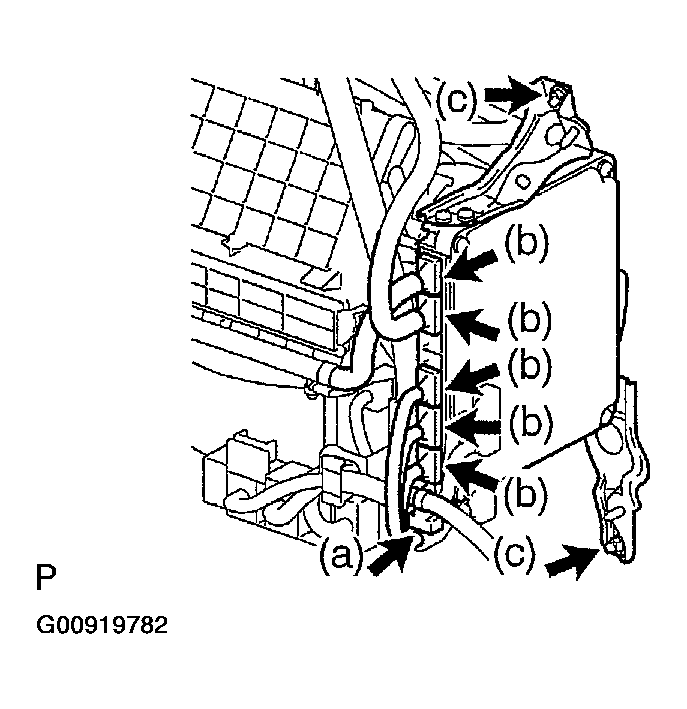

      Fig 2: Removing ECM
      G00919782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ECM BRACKET
    1. Remove the 2 screws, then remove the ECM bracket.

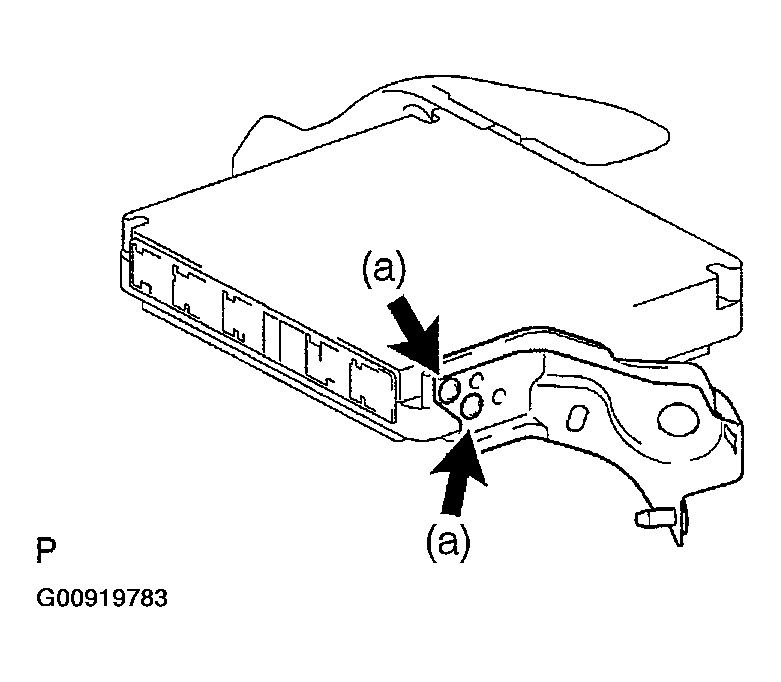

      Fig 3: Removing ECM Bracket
      G00919783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ECM BRACKET NO. 2
    1. Remove the 2 screws, then remove the ECM bracket No. 2.

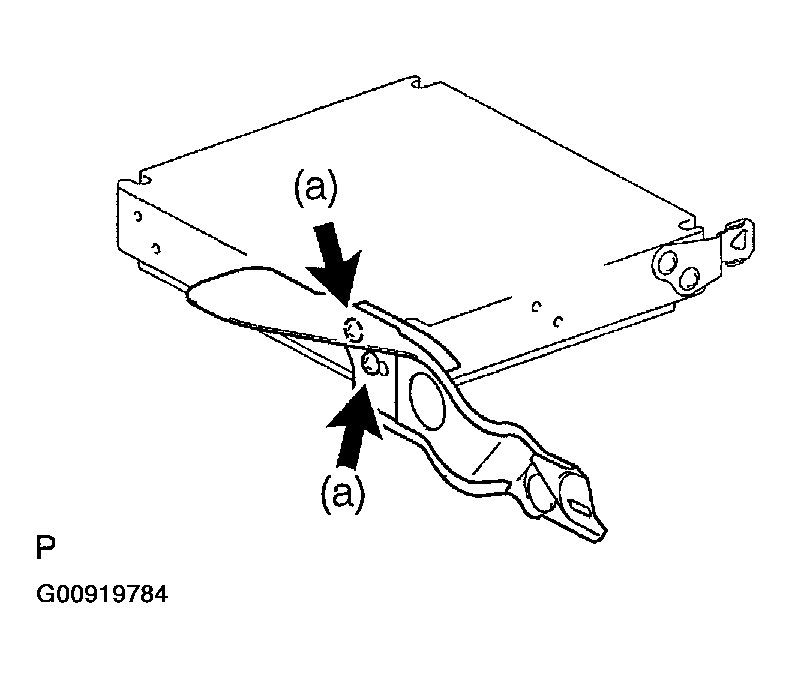

      Fig 4: Removing ECM Bracket No. 2
      G00919784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE ECM BRACKET NO. 3
    1. Remove the 2 screws, then remove the ECM bracket No. 3.

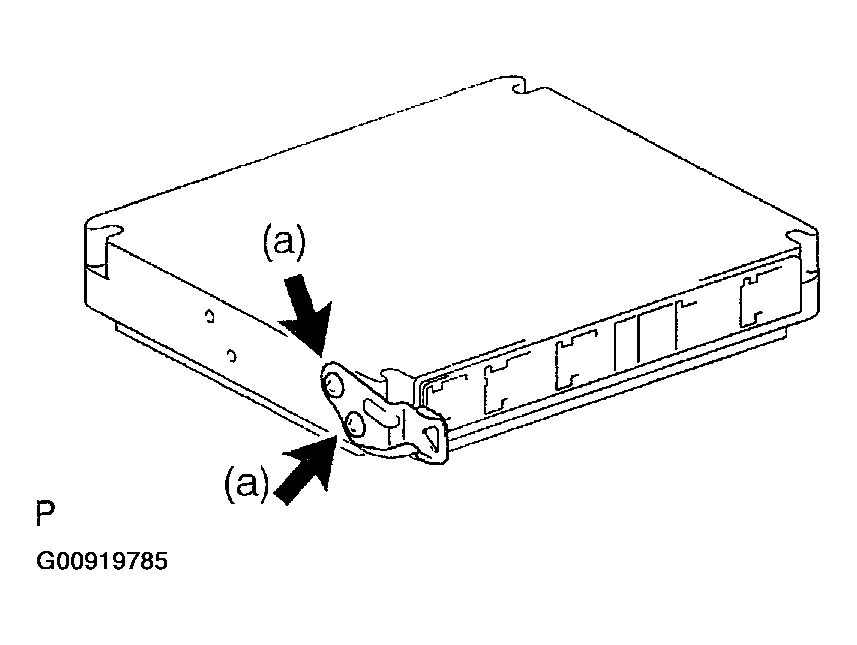

      Fig 5: Removing ECM Bracket No. 3
      G00919785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ECM BRACKET NO. 3
  11. INSTALL ECM BRACKET NO. 2
  12. INSTALL ECM BRACKET
  13. INSTALL ECM

    Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

  14. INSTALL STEREO COMPONENT AMPLIFIER ASSY

    Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

  15. INSTALL INSTRUMENT PANEL SUB-ASSY LOWER
  16. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1
  17. INSTALL FRONT DOOR SCUFF PLATE RH
  18. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)

    Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

  19. RESET MEMORY
  20. SYSTEM INITIALIZATION (See  PRECAUTION  )
