2004 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

Camshaft Timing Oil Control Valve ASSY (3MZ-FE): Replacement

  1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
  2. REMOVE V-BANK COVER SUB-ASSY (See  REPLACEMENT  )
  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSY
    1. Disconnect the 2 camshaft timing oil control valve connectors.

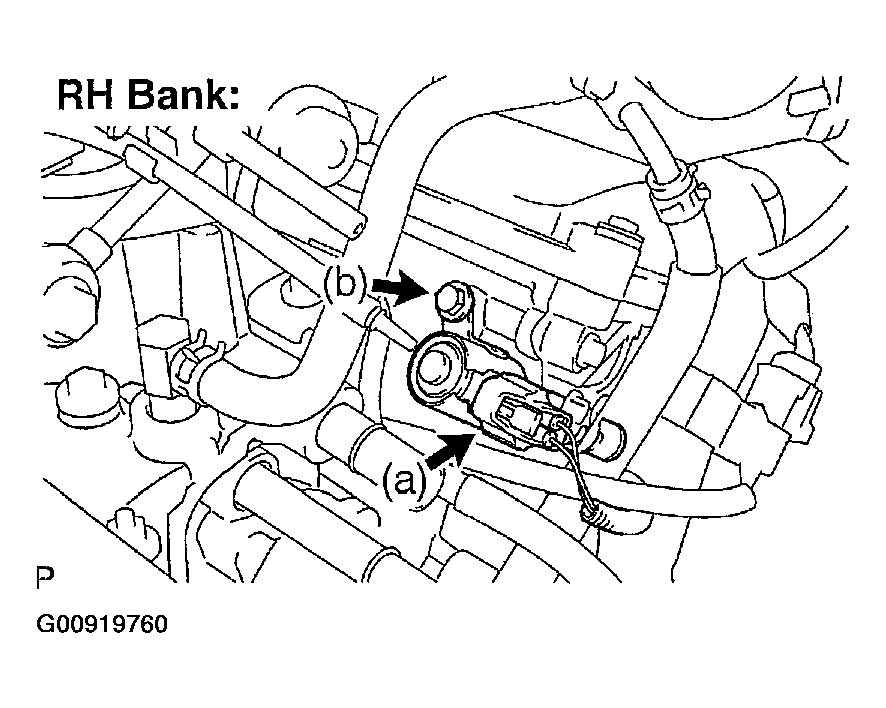

      Fig 1: Removing Camshaft Timing Oil Control Valve Assy (RH Bank)
      G00919760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, then remove the 2 camshaft timing oil control valves.

      HINT:

      The camshaft timing oil control valve is installed with the bolt.

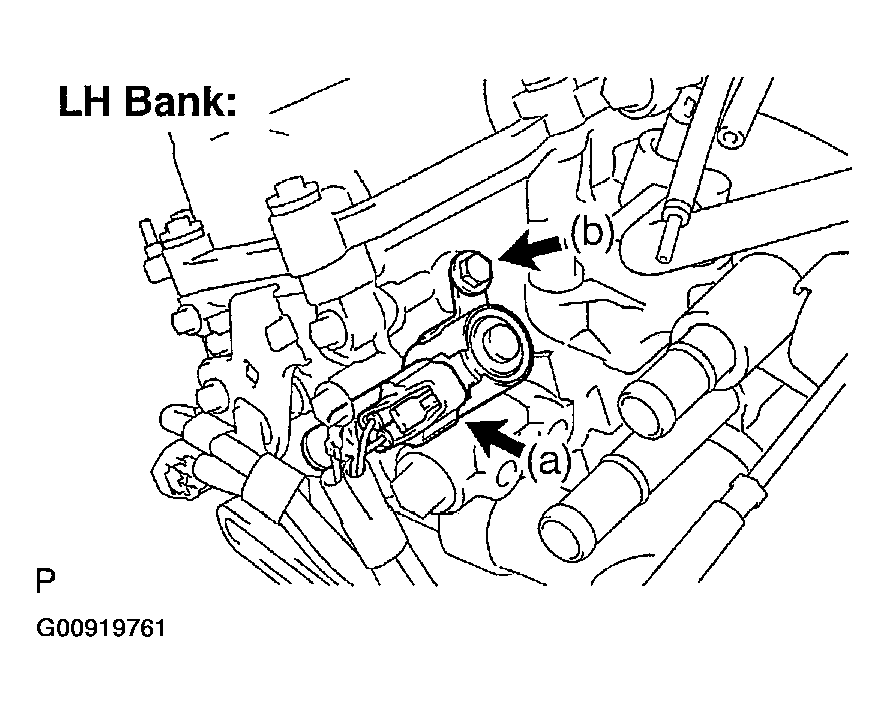

      Fig 2: Removing Camshaft Timing Oil Control Valve Assy (LH Bank)
      G00919761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSY
    1. Apply a light coat of engine oil to the O-ring on each camshaft timing oil control valve.
    2. Install the 2 camshaft timing oil control valves with the 2 bolts.

      Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)

      NOTE: Be careful not to twist the O-ring.
    3. Connect the 2 camshaft timing oil control valve connectors.
  5. INSTALL V-BANK COVER SUB-ASSY (See  REPLACEMENT  )
  6. CONNECT ENGINE WIRE NO. 3 (BATTER NEGATIVE TERMINAL)

    Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

  7. CHECK FOR ENGINE OIL LEAKS
  8. SYSTEM INITIALIZATION (See  PRECAUTION  )
