How To Proceed With Troubleshooting

HINT: The hand-held tester can be used at step 3, 4, 5, 7 and 10.

1. VEHICLE BROUGHT TO WORKSHOP
2. CUSTOMER PROBLEM ANALYSIS (See  CUSTOMER PROBLEM ANALYSIS CHECK  )
3. CONNECT HAND-HELD TESTER TO DLC3

   HINT: If the display indicates a communication fault in the tool, inspect DLC3.

4. CHECK DTC AND FREEZE FRAME DATA (See  DTC CHECK/CLEAR  )

   HINT: Record or print DTC and freeze frame data, if needed.

5. CLEAR DTC AND FREEZE FRAME DATA (See  DTC CHECK/CLEAR  )
6. VISUAL INSPECTION
7. SETTING CHECK (TEST) MODE DIAGNOSIS (See  CHECK MODE PROCEDURE  )
8. PROBLEM SYMPTOM CONFIRMATION

   HINT: If the engine does not start, perform steps 10 and 12 first.

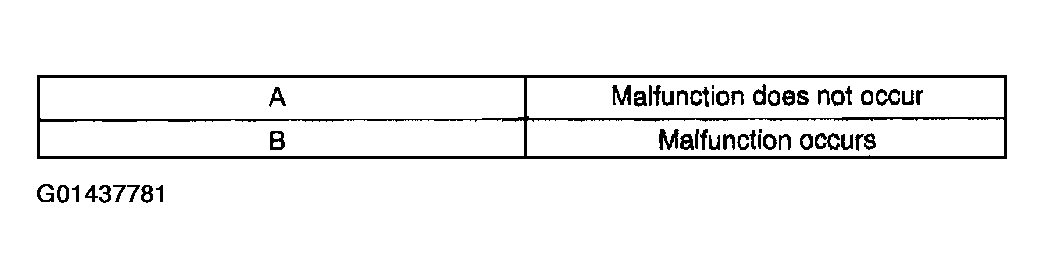

   Fig 1: Problem Symptom Confirmation Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   B: GO TO STEP   10

   A: GO TO NEXT STEP

9. SYMPTOM SIMULATION
10. DTC CHECK (See  DTC CHECK/CLEAR  )

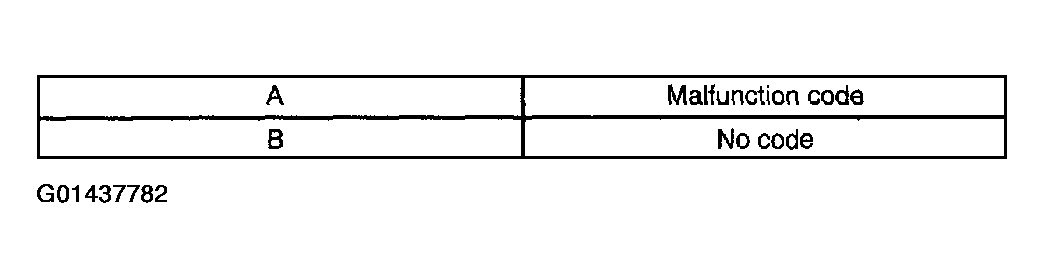

    Fig 2: Symptom Simulation Table

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: GO TO STEP   12

    A: GO TO NEXT STEP

11. DTC CHART (See  DIAGNOSTIC TROUBLE CODE CHART  )

    GO TO STEP   14

12. BASIC INSPECTION (See  BASIC INSPECTION  )

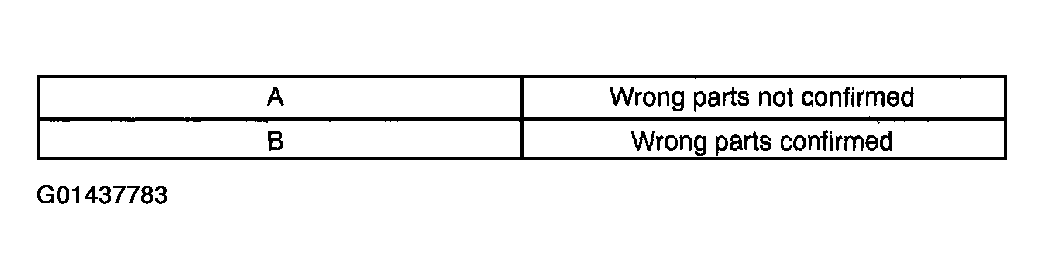

    Fig 3: Basic Inspection Table

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: GO TO STEP   17

    A: GO TO NEXT STEP

13. PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
    Fig 4: Problem Symptoms Table

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: GO TO STEP   17

    A: GO TO NEXT STEP

14. CHECK ECM POWER SOURCE CIRCUIT (See  ECM POWER SOURCE CIRCUIT  )
15. CIRCUIT INSPECTION

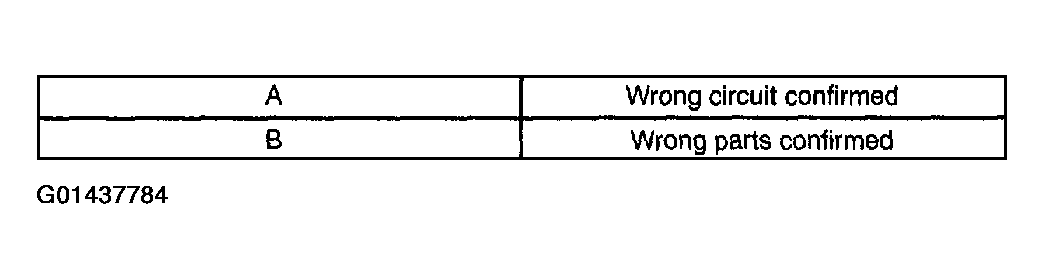

    Fig 5: Circuit Inspection Table

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B: GO TO STEP   18

    A: GO TO NEXT STEP

16. CHECK FOR INTERMITTENT PROBLEMS (See  CHECK FOR INTERMITTENT PROBLEMS  )

    GO TO STEP   18

17. PARTS INSPECTION
18. IDENTIFICATION OF PROBLEM
19. ADJUSTMENT AND/OR REPAIR
20. CONFIRMATION TEST

    END
