2004 Lexus ES 330FACTORY OEM SERVICE PROCEDURE

Hand-held tester

  1. PERFORM ACTIVE TEST BY HAND-HELD TESTER (OPERATE CIRCUIT OPENING RELAY)
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to ON and turn the hand-held tester ON.
    3. Select the item: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / FUEL PUMP / SPD.
    4. Check the relay operation while operating it with the hand-held tester.

      Standard: Operating sound can be heard from the relay.

    OK: Go to step   5

    NG: GO TO NEXT STEP.

  2. INSPECT CIRCUIT OPENING RELAY
    1. Remove the circuit opening relay from the engine room J/B.
    2. Check for continuity in the circuit opening relay.

      Standard:

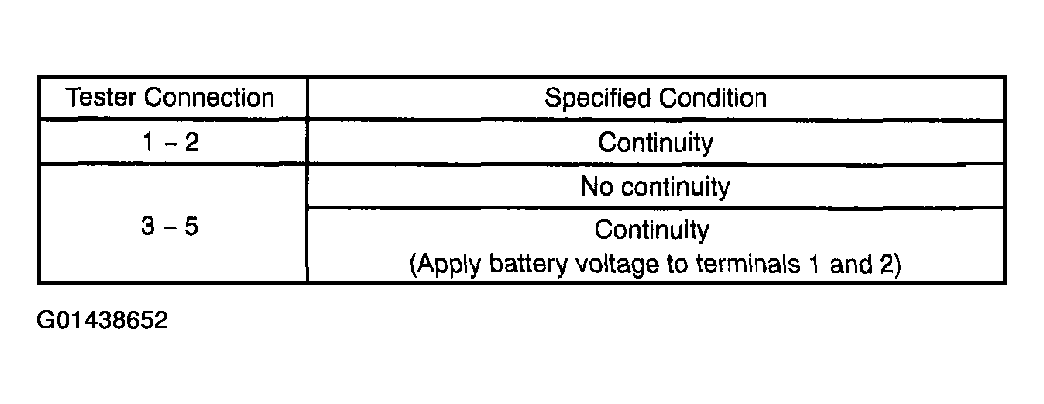

      Fig 1: Circuit Opening Relay Terminals Continuity Chart
      G01438652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
