Checking Monitor Status

HINT: "MONITOR RESULT" indicates normal or malfunction of each component and system when judgment has done.

1. HOW TO READ DATA
   1. Connect the hand-held tester to the DLC 3.
   2. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / MONITOR INFO / MONITOR RESULT

      The Test ID will appear at the beginning of each line, followed by INCMP, PASS, or FAIL.

      HINT:

      • INCMP: Stands for "incomplete". The judgement has not been done yet.
      • PASS: Normal is detected.
      • FAIL: A malfunction has been detected.

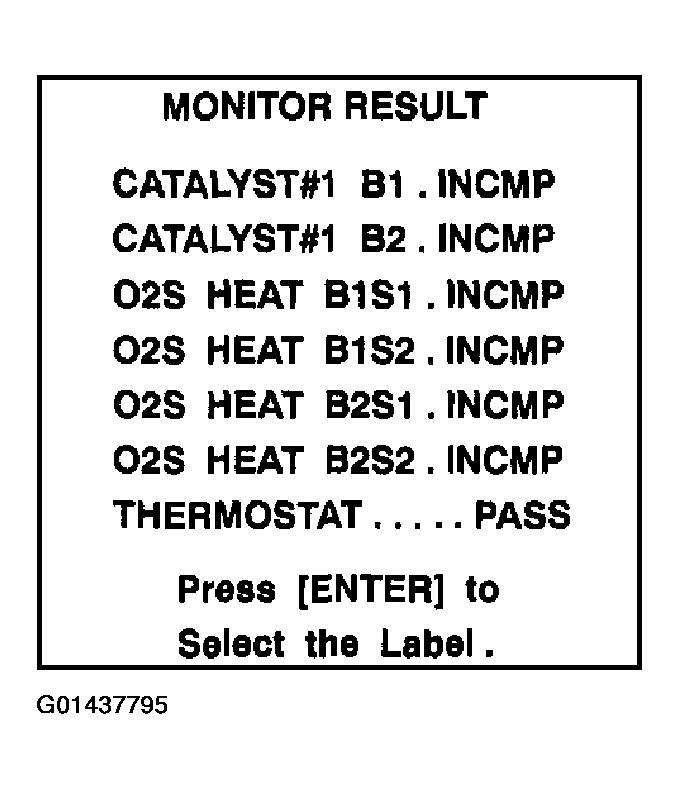

        Fig 1: Display Monitor Result Screen

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Select a Test ID that you want from the list and press the "ENTER" button. You will see the following screen:
      1. VAL (TEST VALUE) [Test Data] [Unit]
      2. LMT (TEST LIMIT) [Test Limit] [Unit]
      3. TLT [Test Limit Type]

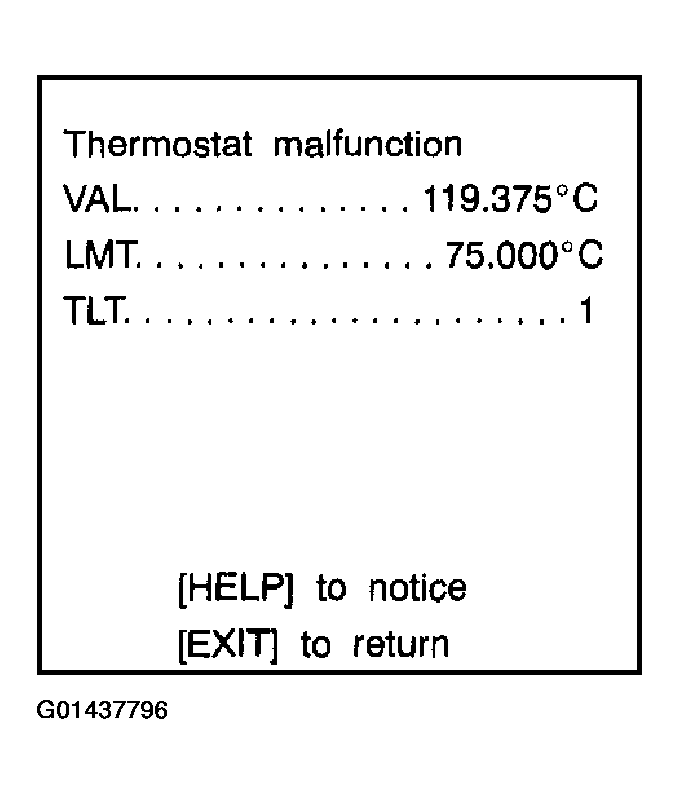

         Fig 2: Display Thermostat Malfunction Screen

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. By pressing the "HELP" button, you can see more information.

      HINT:

      • Monitor test results can be viewed in the MONITOR RESULT screen.
      • Monitor test results indicate the latest malfunction judgement result of this diagnostic.
      • TEST VALUE indicates the detection parameter value (Example: P0128 Thermostat Malfunction = Engine coolant temperature) at the time of malfunction (or normal) judgement is done.
      • TEST LIMIT indicates a threshold of malfunction judgement (Example: P0128 Thermostat Malfunction = 75°C).
      • When the monitor runs, the monitored Parameter's VALUE is recorded. The value is then compared to the TEST LIMIT to determine if the result is PASS or FAIL.
      • By comparing the Parameter VALUE to the TEST LIMIT, it is possible to determine the degree of failure.

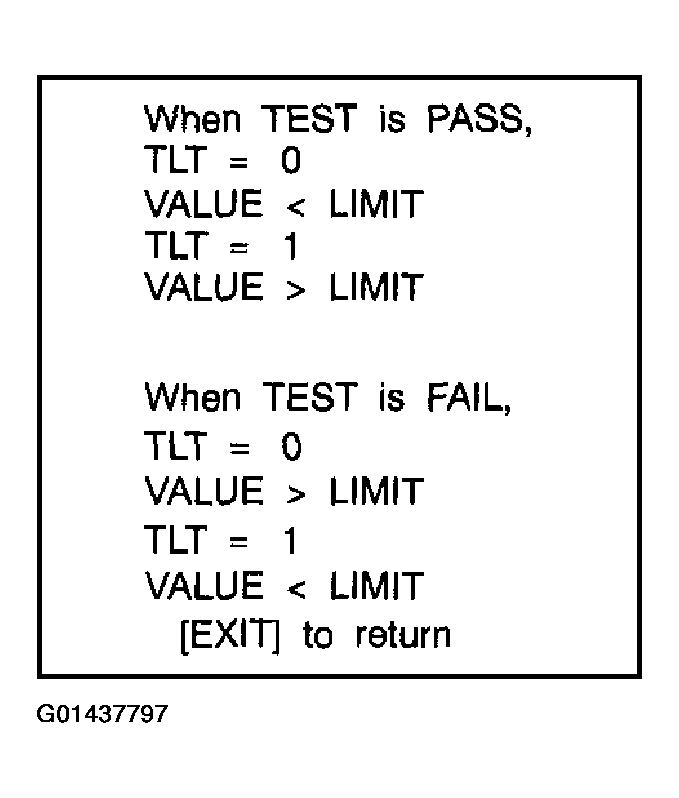

        Fig 3: Display Monitor Result Screen

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • In rare cases, the monitor may have passed even with a DTC set and MIL illuminated. The monitor possibly detect malfunction on a previous trip, and then passed on the most recent trip. This would indicated an intermittent problem may be the cause of the DTC.
