Check Mode Procedure
HINT: Hand-held tester only:
Check mode has a higher sensitivity to detect malfunctions and can detect malfunctions that normal mode cannot detect.
Check mode can also detect all the malfunctions that normal mode can detect.
- CHECK MODE PROCEDURE (Using the hand-held tester)
- Make sure that the items below are true.
- Battery positive voltage 11 V or more
- Throttle valve fully closed
- Transmission in the P or N position
- A/C switched OFF
- Turn the ignition switch to OFF.

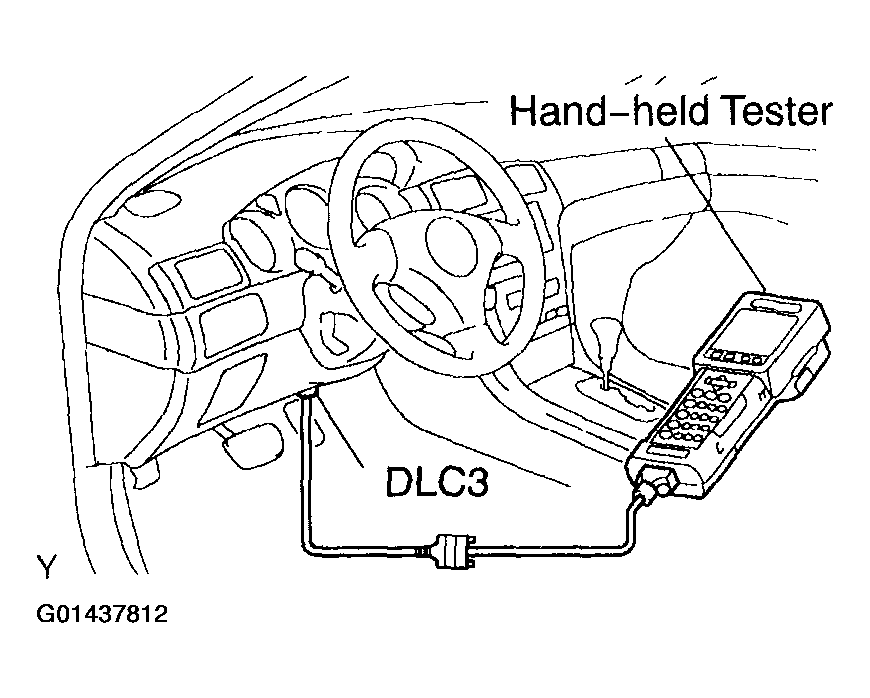

- Connect the hand-held tester to the DLC3.
- Turn the ignition switch to ON.
- Change the ECM to check mode with the hand-held tester. Make sure the MIL flashes as shown in the illustration.
- Make sure that the items below are true.
