Inspection Procedure

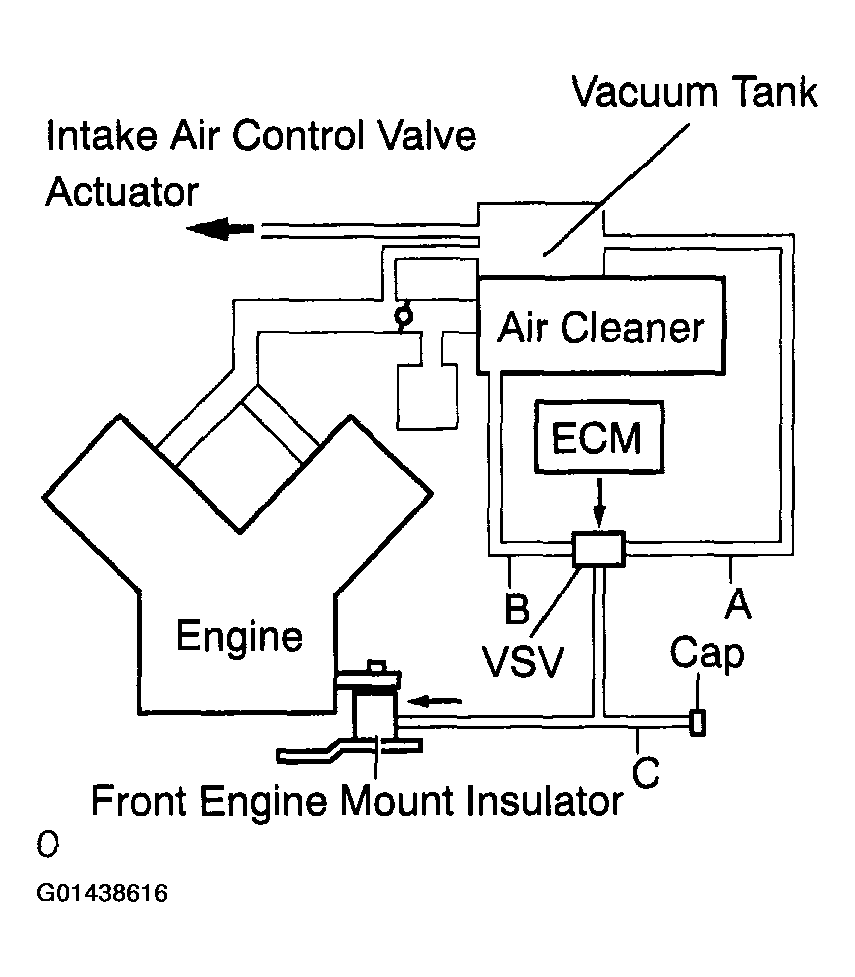

- CHECK VACUUM HOSES
- Check whether the cap of vacuum hose is missing or not.
- If the hose is damaged, replace the vacuum hose assembly.
- Check the air and vacuum hoses for looseness, disconnection and blockage.
NG: REPAIR OR REPLACE VACUUM HOSES
OK: GO TO NEXT STEP.
- CHECK VACUUM
- Start the engine.
- Disconnect the vacuum hose from the vacuum tank.

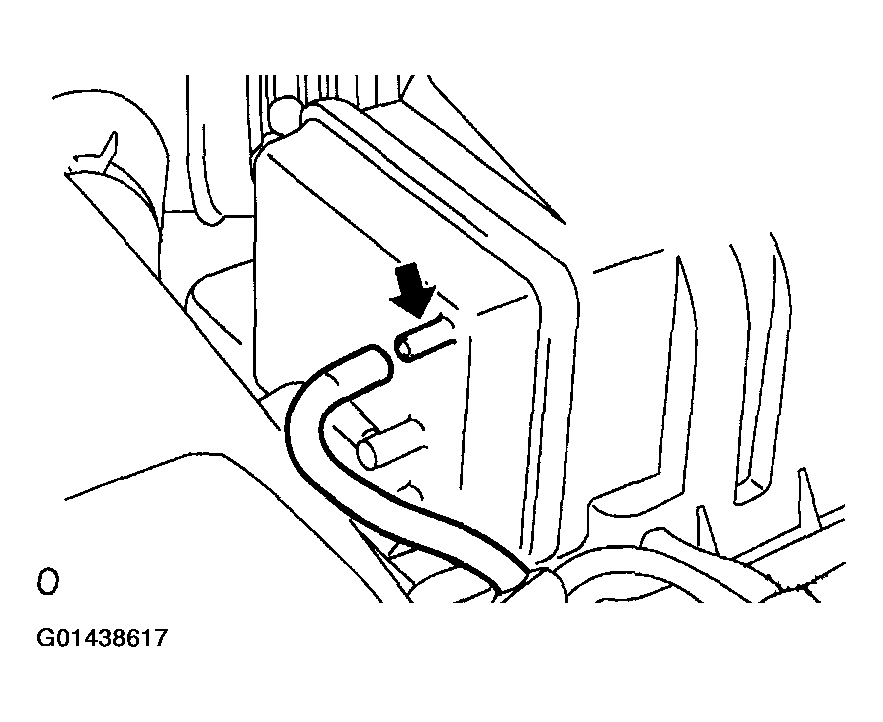

- Check that an unconnected port located on the vacuum tank applies suction to your finger.
- Reconnect the vacuum hose.
NG: CHECK AND REPLACE VACUUM SOURCE AND HOSES
OK: GO TO NEXT STEP.
- INSPECT ECM
- Connect the oscilloscope between terminals ACM and of the E8 ECM connector.
- Warm up the engine to normal operating temperature.
- Turn the A/C switch ON.
- Measure the voltage between terminals ACM and E1 of the E8 ECM connector.

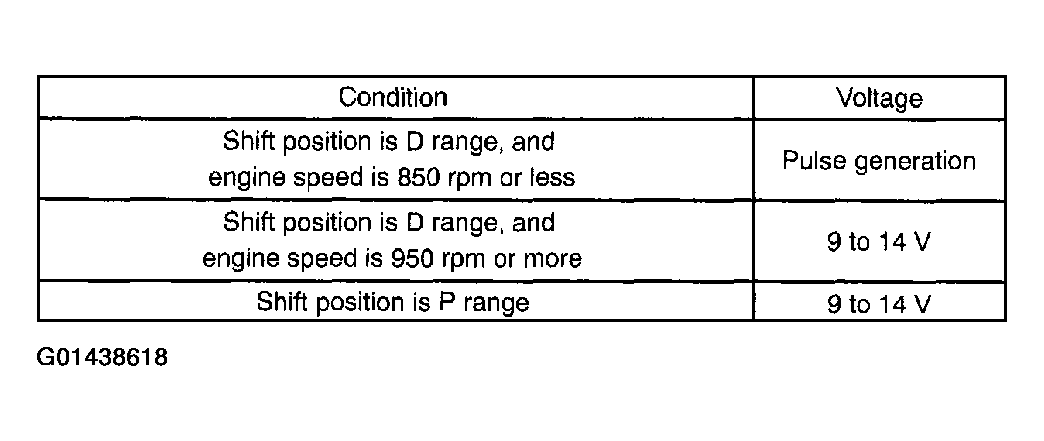

Result:
