2004 Lexus ES 330FACTORY OEM SERVICE PROCEDURE
Ignition Coil ASSY (3MZ-FE): Replacement
- DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
- DRAIN ENGINE COOLANT (RH BANK) (See REPLACEMENT )
- REMOVE FRONT SUSPENSION UPPER BRACE CENTER (W/O TEMS, RH BANK) (See REPLACEMENT )
- REMOVE V-BANK COVER SUB-ASSY (See REPLACEMENT )
- REMOVE AIR CLEANER CAP SUB-ASSY (RH BANK) (See REPLACEMENT )
- REMOVE EMISSION CONTROL VALVE SET (RH BANK) (See REPLACEMENT )
- REMOVE INTAKE AIR SURGE TANK (RH BANK) (See REPLACEMENT )

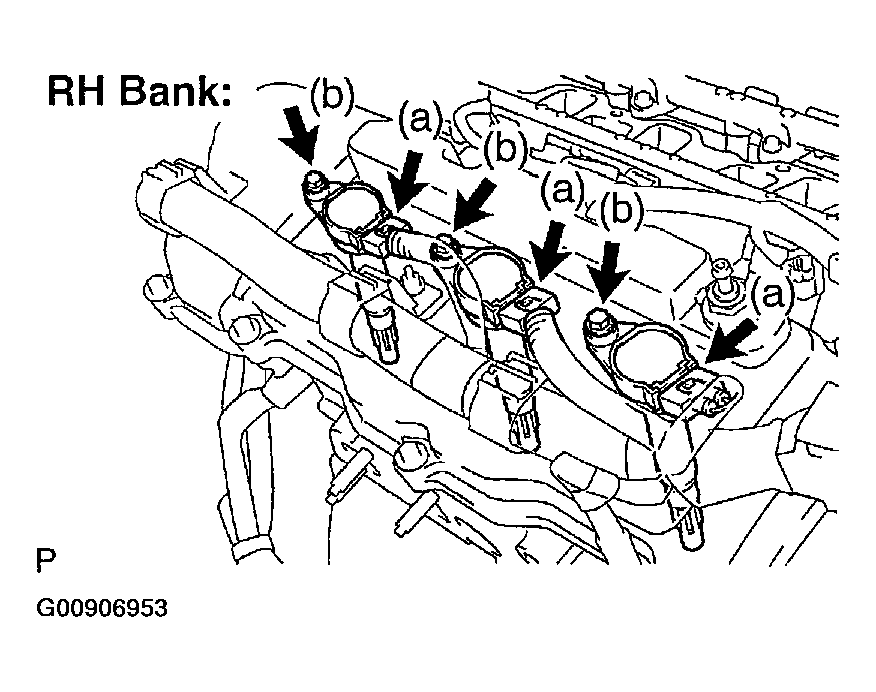

- REMOVE IGNITION COIL ASSY
- Disconnect the 6 connectors.
- Remove the 6 bolts, then remove the 6 ignition coils.
HINT:
The ignition coil is installed with the bolt.
