Crankshaft Position Sensor (3MZ-FE): Replacement
- DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
- REMOVE ENGINE UNDER COVER NO. 1

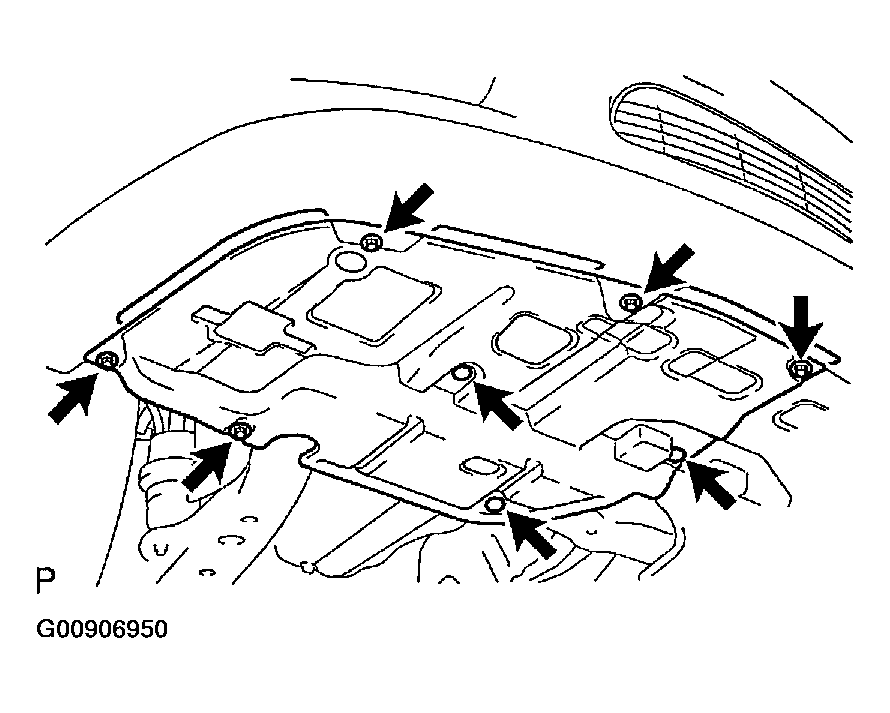

- Remove the 3 clips and 5 screws, then remove the engine under cover No. 1.
- REMOVE FRONT FENDER APRON SEAL RH

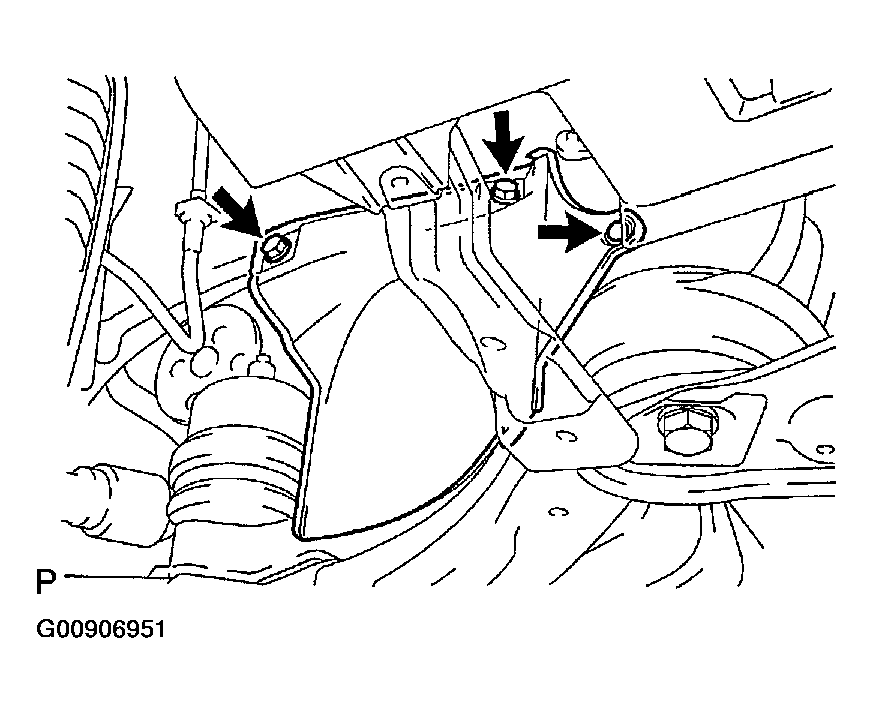

- Remove the clip and 2 bolts, then remove the front fender apron seal.
- REMOVE CRANKSHAFT POSITION SENSOR

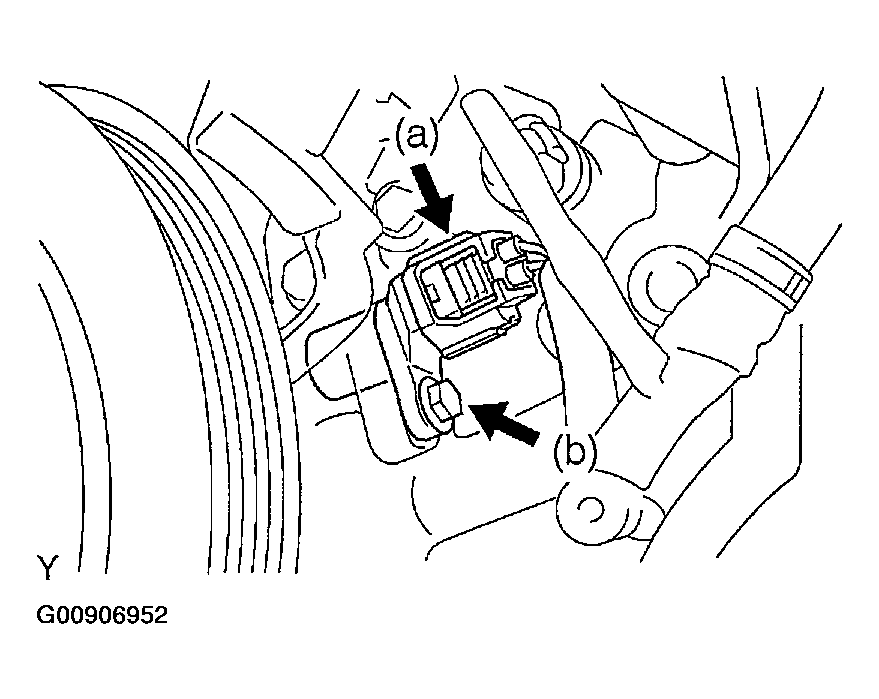

- Remove the crankshaft position sensor connector.
- Remove the bolt, then remove the crankshaft position sensor.
- INSTALL CRANKSHAFT POSITION SENSOR
Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)
- INSTALL FRONT FENDER APRON SEAL RH
- INSTALL ENGINE UNDER COVER NO.1
- CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
- SYSTEM INITIALIZATION (See GENERATORS & REGULATORS )
