Fuel System (3MZ-FE): Inspection
- INSPECT FUEL INJECTOR ASSY
- Inspect the resistance.
- Using an ohmmeter, measure the resistance between the terminals.

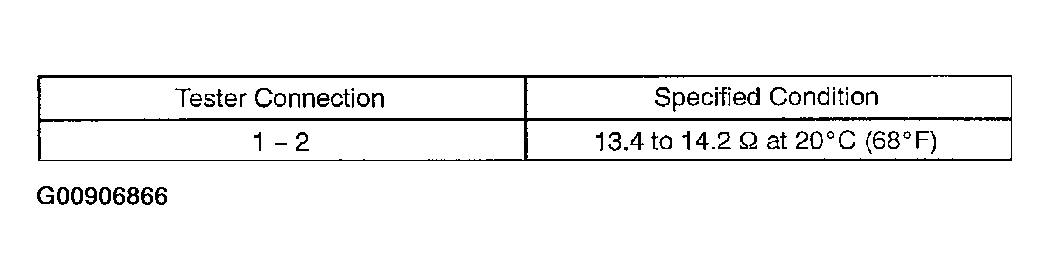

Standard:
If the resistance is not as specified, replace the fuel injector.
- Using an ohmmeter, measure the resistance between the terminals.
- Check the operation.CAUTION:
- This test involves high-pressure fuel and electricity. Keep the injector free of sparks during the test.
- Take every precaution regarding safe handling of both the fuel and electricity.
- Perform this test in a safe area, and avoid any sparks or flame.
- Do not smoke.

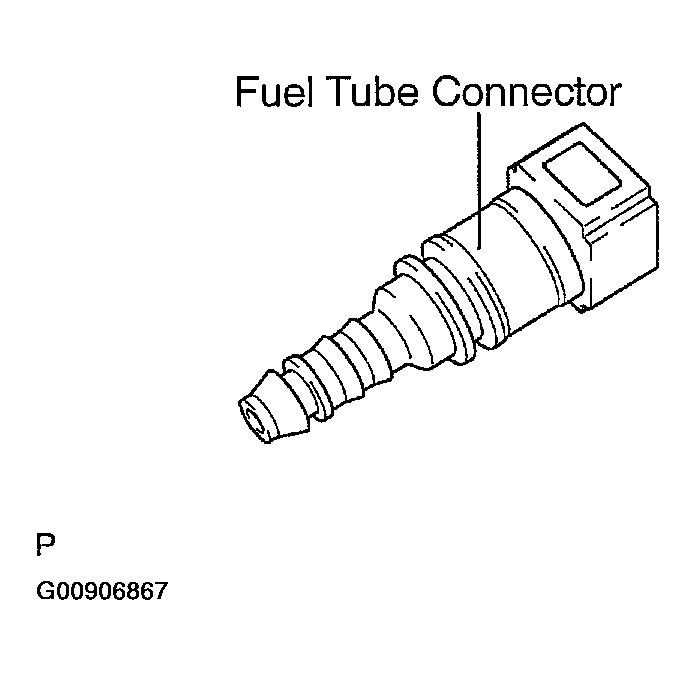

- Pull out the fuel tube connector from a new fuel tube.
HINT:
Part No. 23801 - 20190
- Connect SST and the fuel tube connector to the fuel pipe.
SST 09268-41047 (95336-08070)
CAUTION: After taking the precautions, connect the quick connector.
- Inspect the resistance.
