MAP LAMP ASSY

Inspect map light assy continuity.
1. Check that the continuity between terminals at each switch position, as shown in CONTINUITY TABLE .

CONTINUITY TABLE

Switch operation	Tester connection	Specified condition
OFF	1(B)-2(E),1(B)-3(CTY)	No continuity
DOOR	1 (B) - 3(CTY)	Continuity
ON	1(B)-2(E)	Continuity

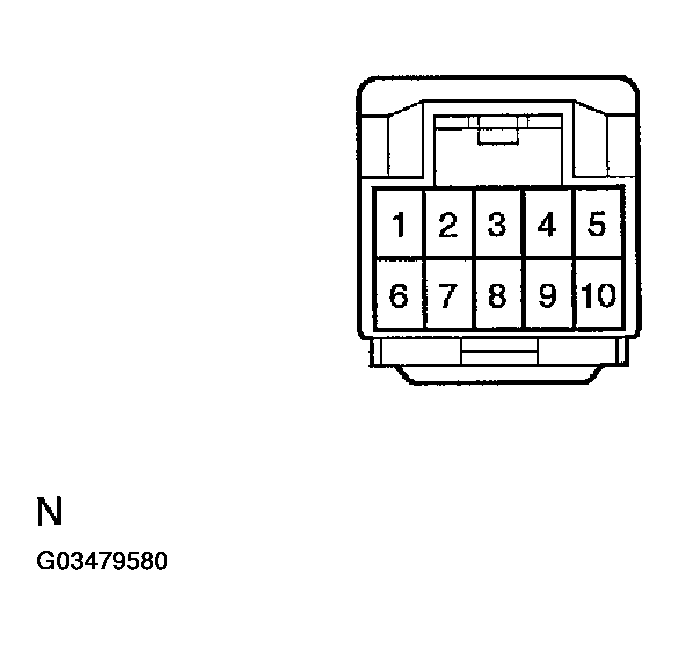

Fig 1: Identifying MAP Lamp Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VANITY LAMP ASSY
1. Inspect vanity light continuity.
  1. Check that the continuity exists between terminals 1 and 2, when light is operated.
Standard:
- OFF (closed): No continuity
- ON (opened): Continuity
GLOVE BOX LAMP SWITCH
1. Inspect glove box switch continuity.
  1. Check that the continuity exists between terminals 1 and 2, when switch is operated.
Standard:
- ON (when shaft is pressed): No continuity
- OFF (when shaft is not pressed): Continuity
GLOVE BOX LAMP ASSY
1. Check that the continuity exists between terminal.
Standard: Continuity exists
RETAINER FRONT DOOR SCUFF PLATE
1. Check that the continuity exists between terminal.
Standard: Continuity exists
