INSPECT OVERHEAD JUNCTION BLOCK ASSEMBLY

Disconnect the connector from the overhead J/B, and inspect the connector on the wire harness side, as shown.

If continuity is not as specified, repair or replace the wire harness.

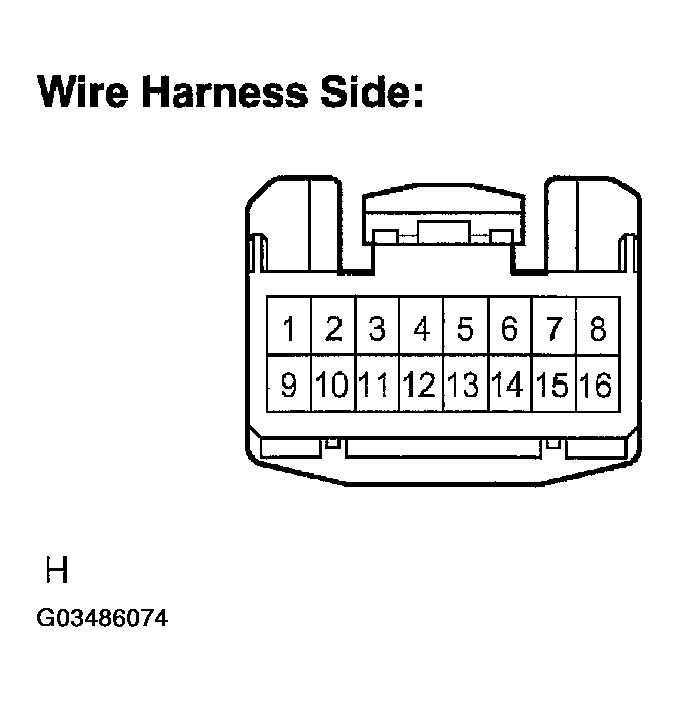

Fig 1: Identifying Connector From Overhead J/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TESTER CONDITION SPECIFICATION

Tester connection	Condition	Specified condition
1 - Ground	Always	Continuity
8 - Ground	Always	Battery positive voltage
11 - Ground	Ignition switch OFF or ACC	No voltage
11 - Ground	Ignition switch ON	Battery positive voltage

Overhead J/B side: INSPECT OVERHEAD JUNCTION BLOCK ASSEMBLY

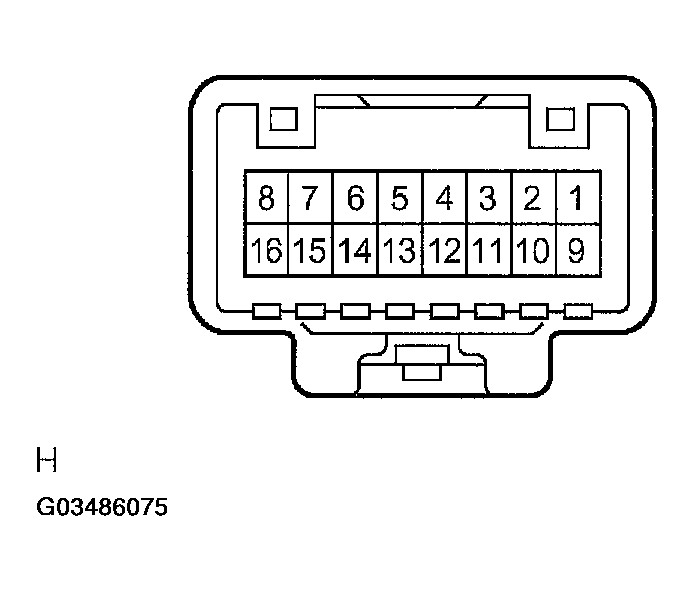

Fig 2: Identifying Overhead Junction Block Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OVERHEAD JUNCTION BLOCK CIRCUIT CONTINUITY SPECIFICATION CHART

Circuit name	Tester connection	Specified condition
Power source circuit	A8-B6-E6	Continuity
Power source circuit	A11-B8-G1	Continuity
Ground circuit	A1-B2-E8-D3-F1	Continuity
Microphone circuit	A2-B10-G4	Continuity
Microphone circuit	A3-B9-G2	Continuity
Mayday switch circuit	A13-B7-F4	Continuity
Mayday switch circuit	A7-B4-F3	Continuity
Mayday switch circuit	A14-B3-F12	Continuity

If continuity is not as specified, replace the overhead J/B assembly.
