Section 538 (Audio System): Inspection
- INSPECT POWER AMPLIFIER CIRCUIT
Disconnect the connector from the power amplifier and inspect the connector on the wire harness side.

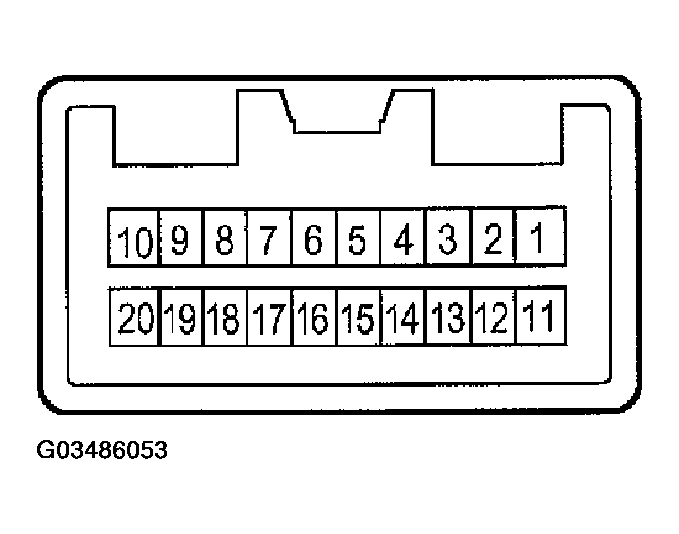

TESTER CONDITION SPECIFICATIONTester connection Condition Specified condition 12 - Ground Always Continuity 13 - Ground Always Continuity 7 - Ground Always Battery voltage 16 - Ground Always Battery voltage If the circuit is not as specified, inspect the circuits connected to other parts.
- INSPECT REAR SEAT AUDIO CIRCUIT
Disconnect the connector from RSA controller and inspect the connector on the wire harness side.

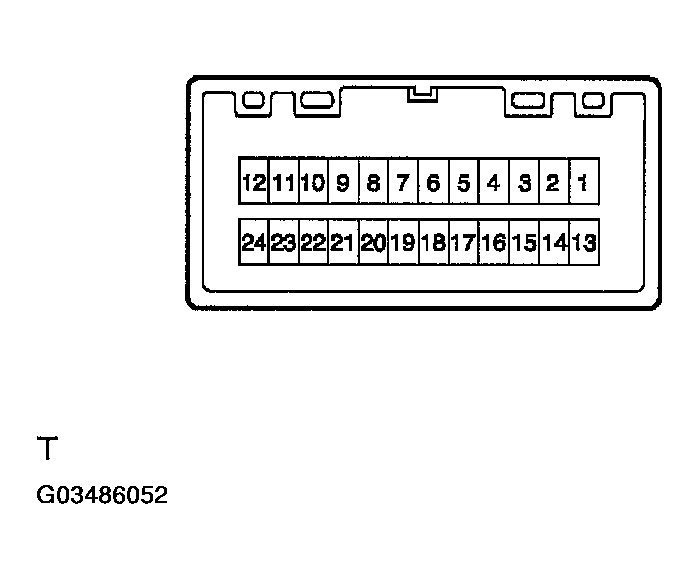

TESTER CONDITION SPECIFICATIONTester connection Condition Specified condition 17 - Ground Always Continuity 24 - Ground Ignition switch LOCK and radio switch ON No voltage 24 - Ground Ignition switch ACC or ON and radio switch ON Battery voltage 12 - Ground Always Battery voltage If the circuit is not as specified, inspect the circuits connected to other parts.
- INSPECT DVD CHANGER CIRCUIT
Disconnect the connector from the DVD changer and inspect the connector on the wire harness side.

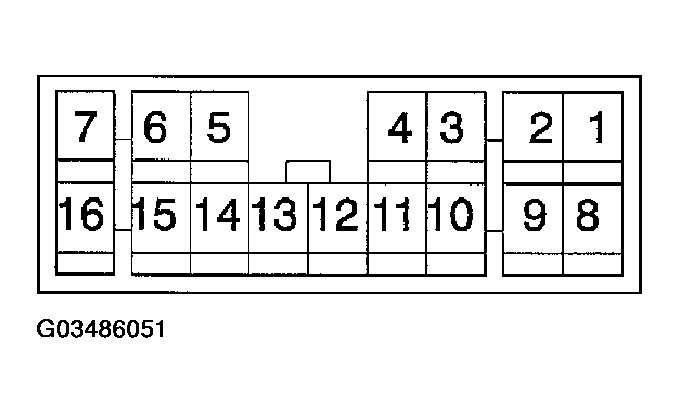

TESTER CONDITION SPECIFICATIONTester connection Condition Specified condition 20 - Ground Always Continuity 1 - Ground Ignition switch LOCK and radio switch ON No voltage 1 - Ground Ignition switch ACC or ON and radio switch ON Battery voltage 10 - Ground Always Battery voltage If the circuit is not as specified, inspect the circuits connected to other parts.
- INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT
Disconnect the connectors from the radio receiver assembly, and inspect the connector on the wire harness side.

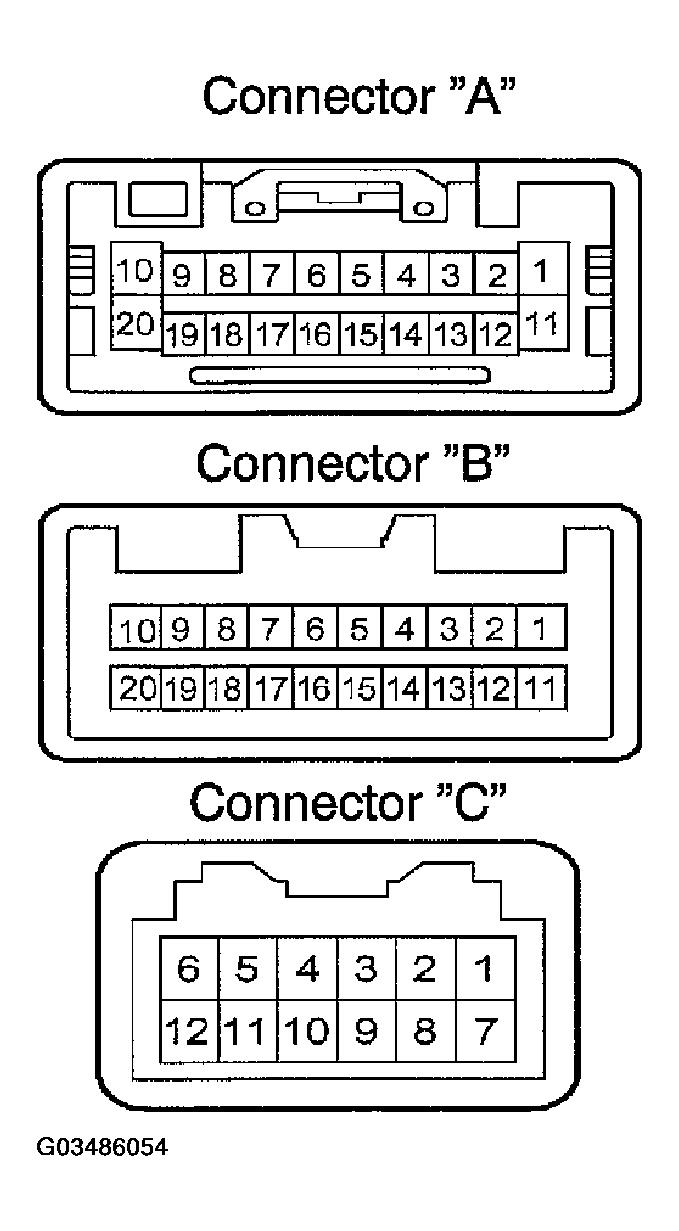

TESTER CONDITION SPECIFICATIONTester connection Condition Specified condition A20 - Ground Always Continuity A1 - Ground Always Battery voltage A11 - Ground Ignition switch LOCK No voltage A11 - Ground Ignition switch ACC or ON Battery voltage If the circuit is not as specified, inspect the circuits connected to other parts.
HINT:
Check the wire harness between the radio receiver assembly and the CD auto changer and between the radio receiver assembly and the power amplifier.
- INSPECT STEERING PAD SWITCH CIRCUIT
Disconnect the connectors from the steering pad switch, and inspect the connector on the wire harness side.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

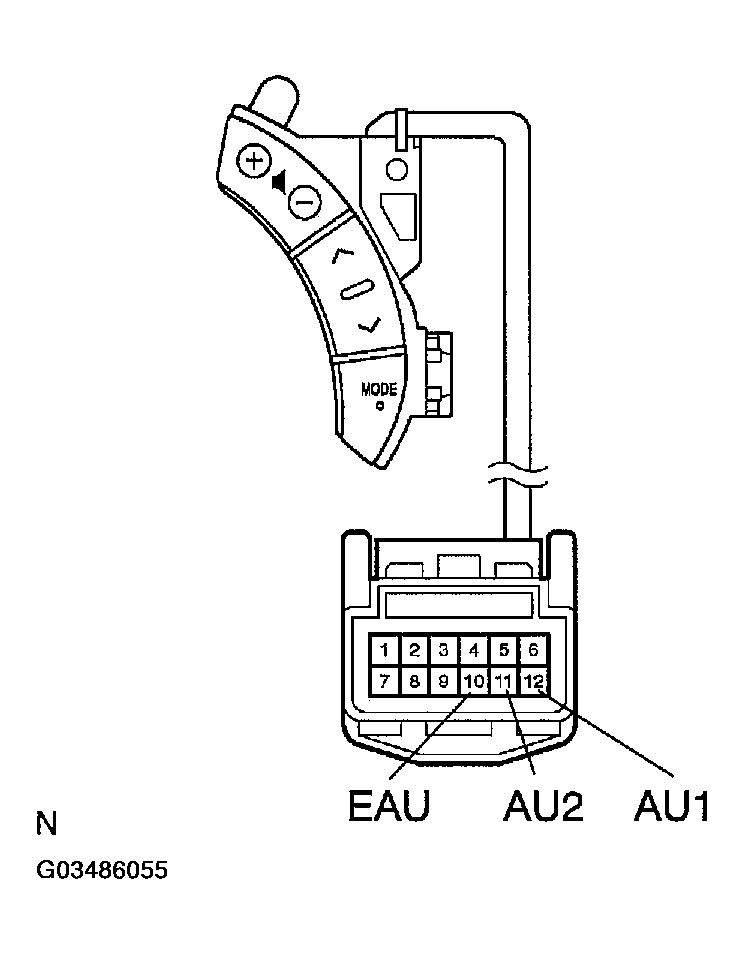

TESTER CONDITION SPECIFICATIONTester connection Condition Specified condition AU1 - EAU Do not switch position Approx. 100 kΩ AU1 - EAU SEEK+ switch: push 0Ω AU1 - EAU SEEK- switch: push Approx. 0.3 Ω AU1 - EAU VOL+ switch: push Approx. 1 kΩ AU1 - EAU VOL- switch: push Approx. 3.2 kΩ AU2 - EAU Do not switch position Approx. 100 kΩ AU2 - EAU MODE switch: push 0Ω If the circuit is not as specified, inspect the circuits connector to other parts.
