2003 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

How To Code Registration

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing the theft deterrent ECU or transmitter, registration of recognition code is necessary because they are provided as a single components.
  1. Select the operation mode.
    • Add mode
    • Rewrite mode
    • Prohibition mode
    • Confirmation mode

    HINT:

    • The "Add mode" is for adding new recognition codes while retaining the already registered codes. This mode is used when the transmitter is added. When the number of the registered codes exceeds 4 codes, the previously registered codes will be erased in order, staring from the first registered code.
    • The "Rewrite mode" is for erasing all the registered codes and registering newly recognized codes only. This mode is used when the transmitter or the door control receiver is replaced.
    • The "Prohibition mode" is for erasing all the registered codes to prohibit the wireless door lock operation. This mode is used when the transmitter is lost.
    • The "Confirmation mode" is for confirming the number of recognition codes that are registered. This mode is used to check the number of registered codes when new codes are added to the registration, etc.
  2. Follow the flow chart on the Fig 1 to register the transmitter recognition code to the theft deterrent ECU.

    HINT:

    • When procedure is outside the specification, the registration operation is cancelled.
    • Maximum of 4 recognition codes can be registered.
  3. By LEXUS Hand-Held Tester

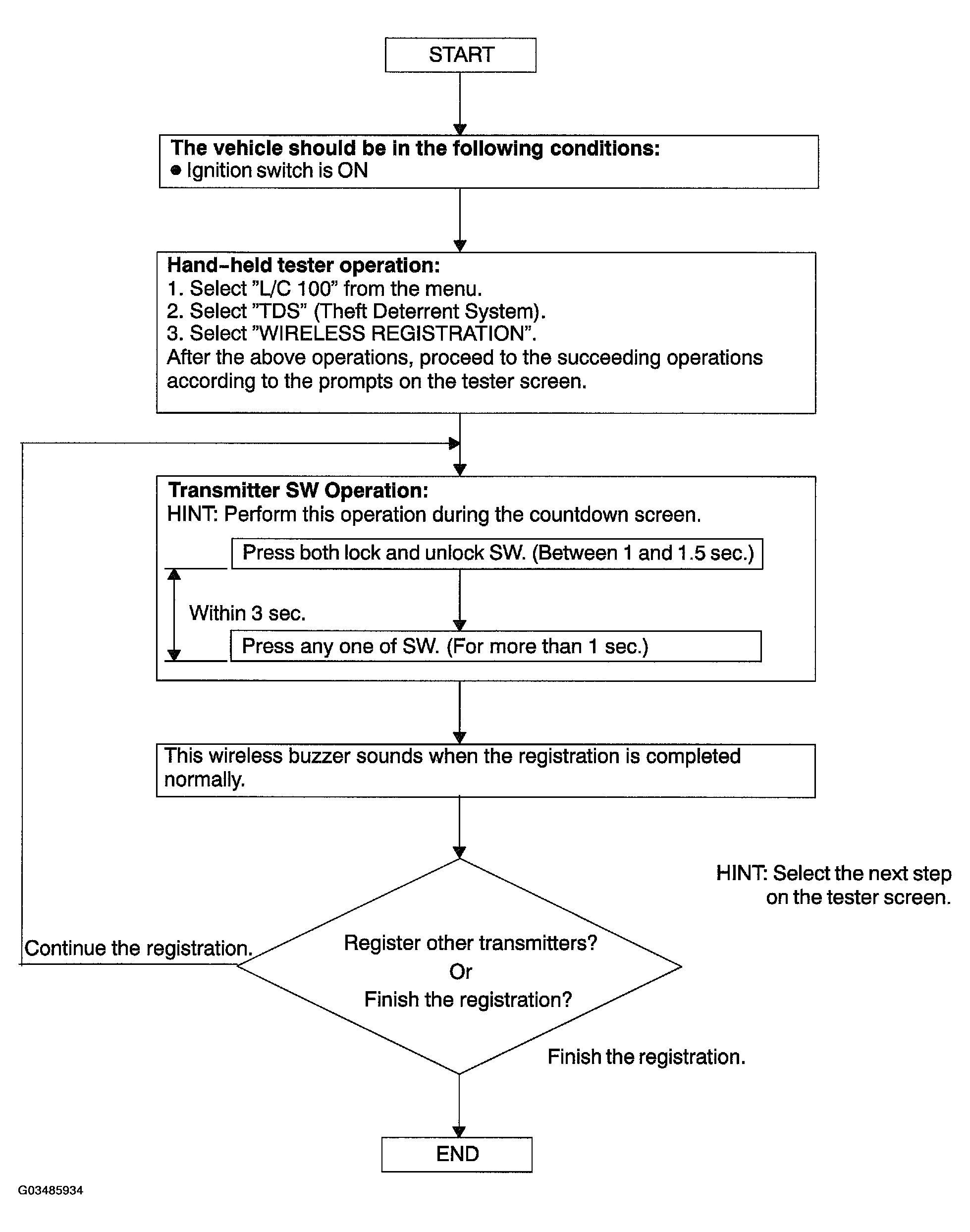

    Fig 1: Identifying Lexus Hand-Held Tester Flow Chart
    G03485934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    This page is to show the registration procedure briefly using the hand-held tester.

    For detailed procedures, please refer to the prompts on the tester screen.

    The number of currently registered codes can be checked out on the first screen of the WIRELESS REGISTRATION.

  4. By Switch Operation:

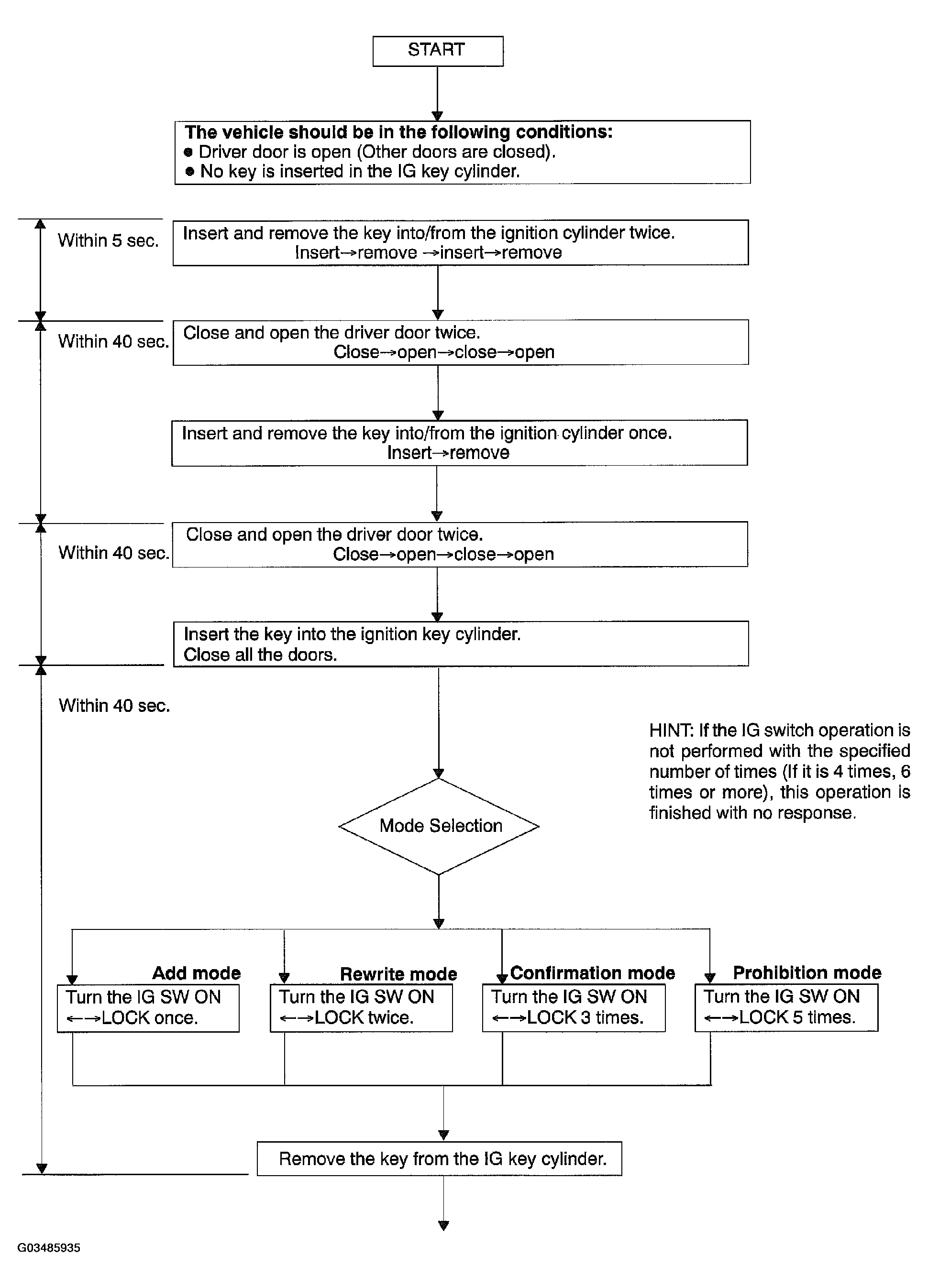

    Fig 2: Identifying Switch Operation Flow Chart (1 Of 3)
    G03485935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The registration operation is cancelled if each operation is not completed within the specified time.

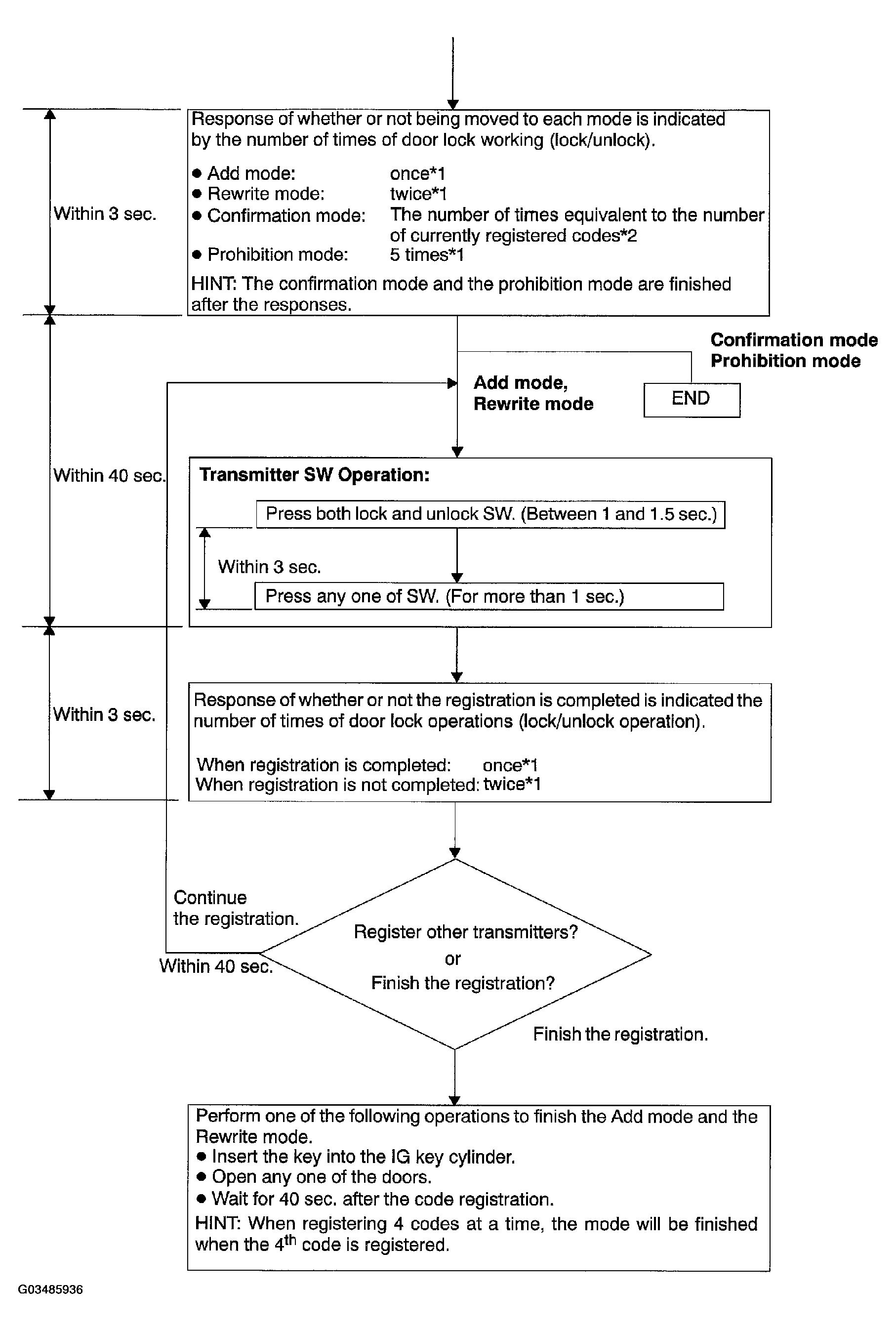

    Fig 3: Identifying Switch Operation Flow Chart (2 Of 3)
    G03485936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Operation cycle of the door lock (lock/unlock operation)

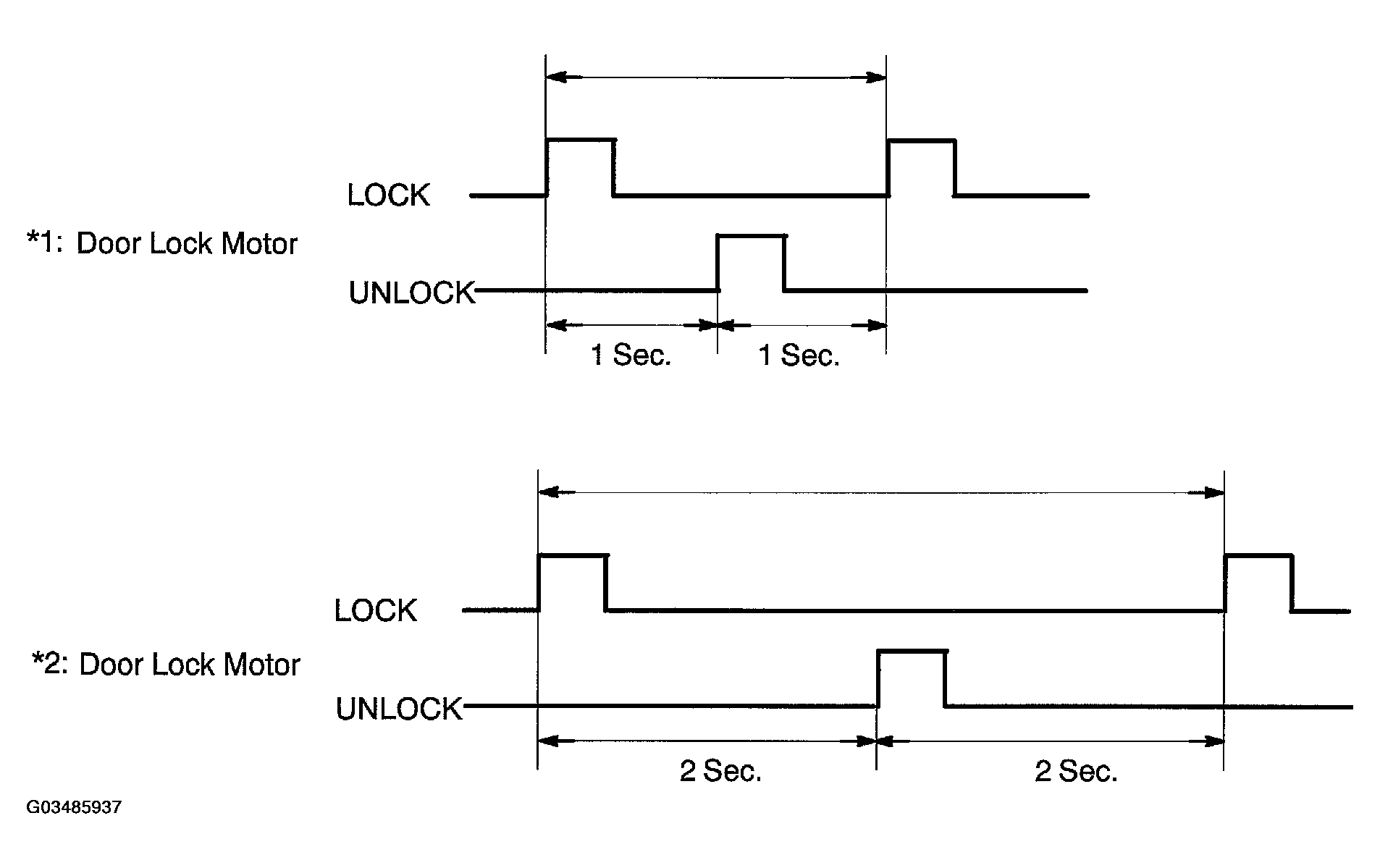

    Fig 4: Identifying Switch Operation Flow Chart (3 Of 3)
    G03485937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
