Section 443 (Defogger System): Inspection

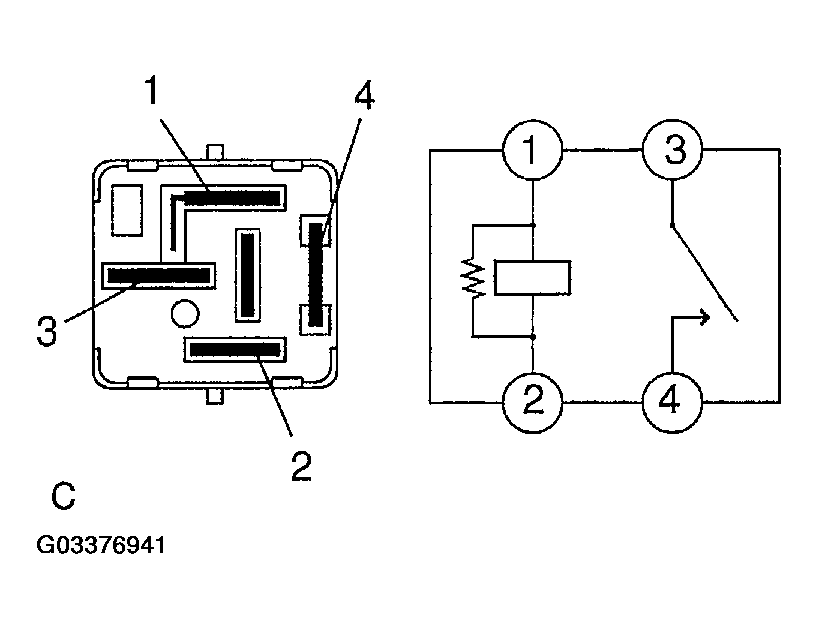

- INSPECT DEFOGGER RELAY CONTINUITY CONNECTOR TERMINALS SPECIFIED CONDITION
Condition Tester connection Specified condition Constant 3 - 4 Continuity Apply B+ between terminals 3 and 4. 1 - 2 Continuity If continuity is not as specified, replace the relay.
- INSPECT DEFOGGER WIRES NOTE: When cleaning the glass, use a soft, dry cloth, and wipe the glass in the direction of the wire. Take care not to damage wires. Do not use detergents or glass cleaners with abrasive ingredients. When measuring voltage, wind a piece of tin foil around the top of the negative probe and press the foil against the wire with your fingers, as shown.
