2003 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Fuel System: Inspection

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT FUEL INJECTOR ASSY
1. Inspect the injector resistance.
  Using an ohmmeter, measure the resistance between the terminals.

  Standard: 13.4 to 14.2 at 20 C (68 F)

  HINT:

  If the resistance is not as specified, replace the injector.

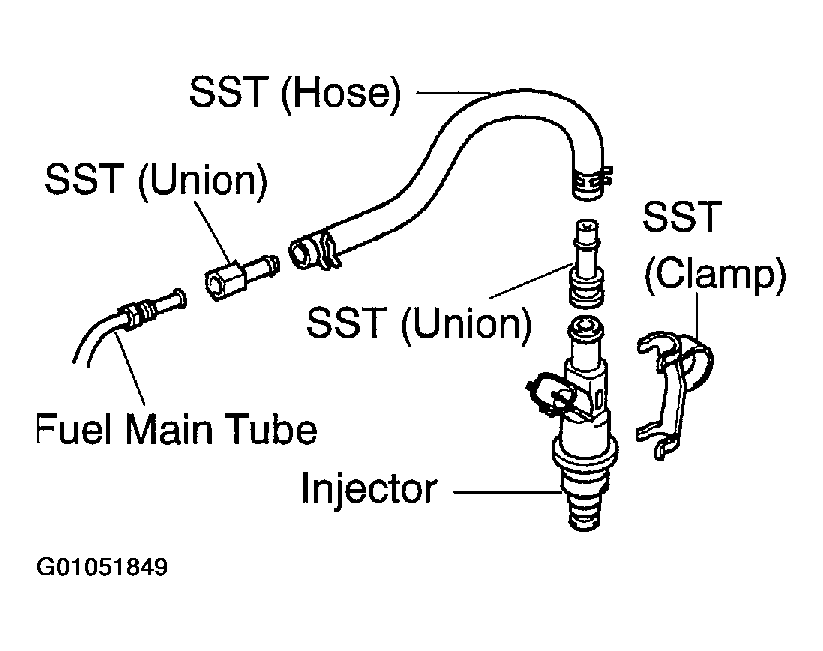

  Fig 1: Identifying Fuel Injector And SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the injector injection.
  CAUTION: Keep injector clear of sparks during the test.
