2003 Lexus SC 430FACTORY OEM SERVICE PROCEDURE
Testing TP Sensor

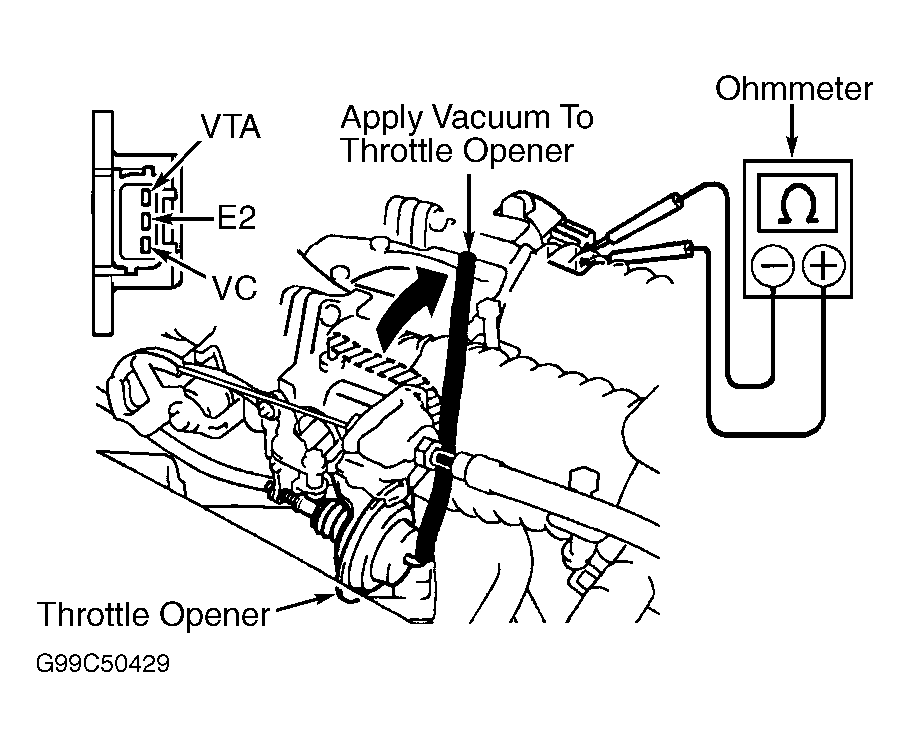

- Disconnect electrical connector from TP sensor. Note electrical terminals on TP sensor. See Fig 1. Apply vacuum to throttle opener.
- Using ohmmeter, check resistance between specified terminals in relation to throttle position. See TP SENSOR RESISTANCE (RX300) table. Replace TP sensor as necessary if resistance is not within specification.
TP SENSOR RESISTANCE (RX300) (1)
| Throttle Position | Terminals | Ohms | ||
|---|---|---|---|---|
| Fully Closed | VTA & E2 | 200-6300 | ||
| Fully Open | VTA & E2 | 2000-10,200 | ||
| ..... | VC & E2 | 2500-5900 | ||
|
||||
