2003 Lexus LX 470FACTORY OEM SERVICE PROCEDURE
Motor Shift Control System: Inspection

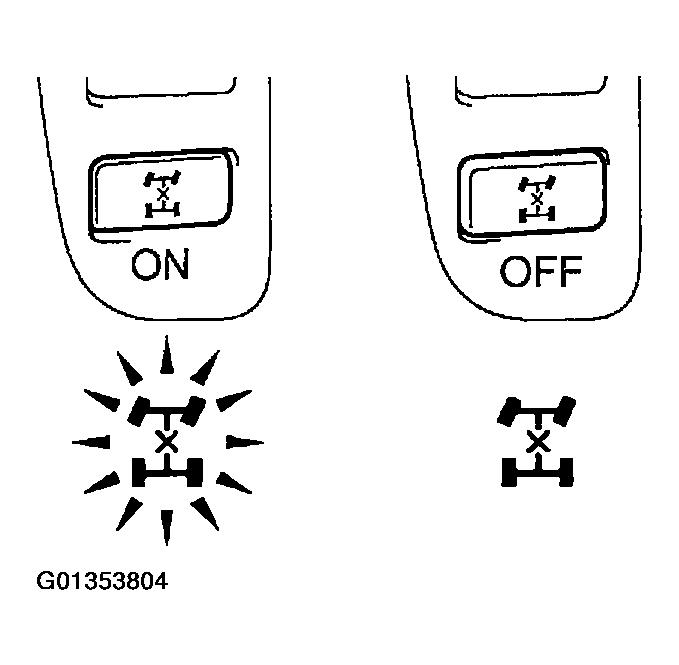

- INSPECT SWITCH POSITION
- Start the engine, and shift the transfer shift lever to the "H" position.
- Check that the center diff. indicator light comes on when the switch is in "ON" position. Check that the light goes off when the switch is in "OFF" position.

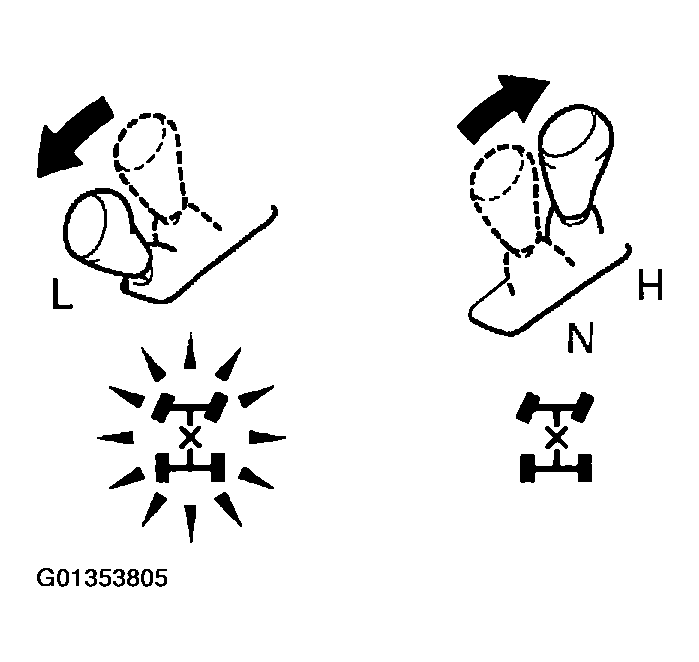

- INSPECT SHIFT LEVER POSITION
- Start the engine, and turn the center diff. lock switch to OFF.
- Check that the center diff. indicator light comes on when the transfer shift lever is shifted to the "L" position. Check that the light goes off when the lever is shifted to the "N" or "H" position.

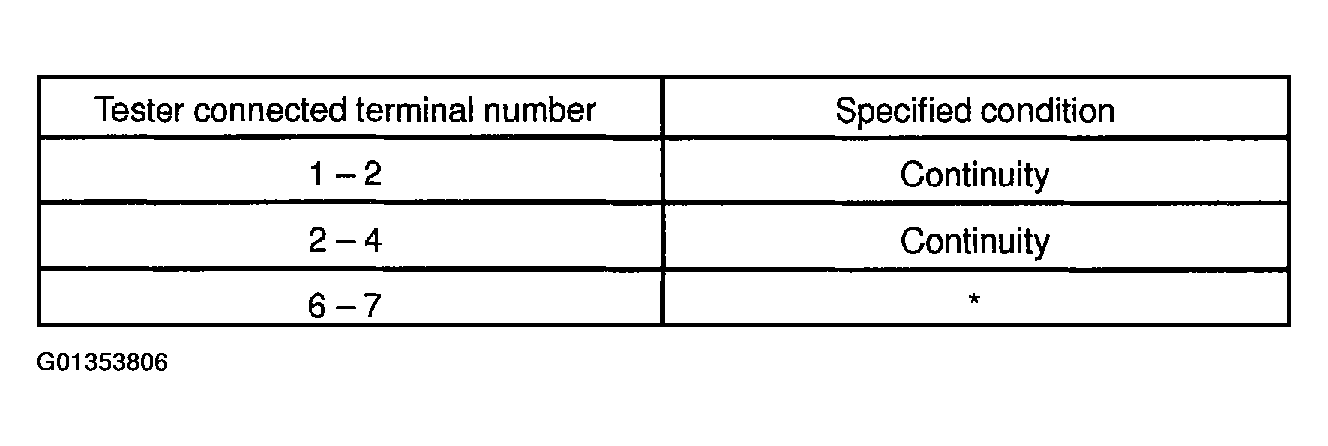

- INSPECT CENTER DIFF. LOCK CONTROL RELAY
- Check that continuity exists between each terminal, as shown in the chart.
