Input Shaft: Reassembly
HINT:
Coat all of the sliding and rotating surfaces with gear oil before reassembly.
- INSTALL FRONT BALL BEARING

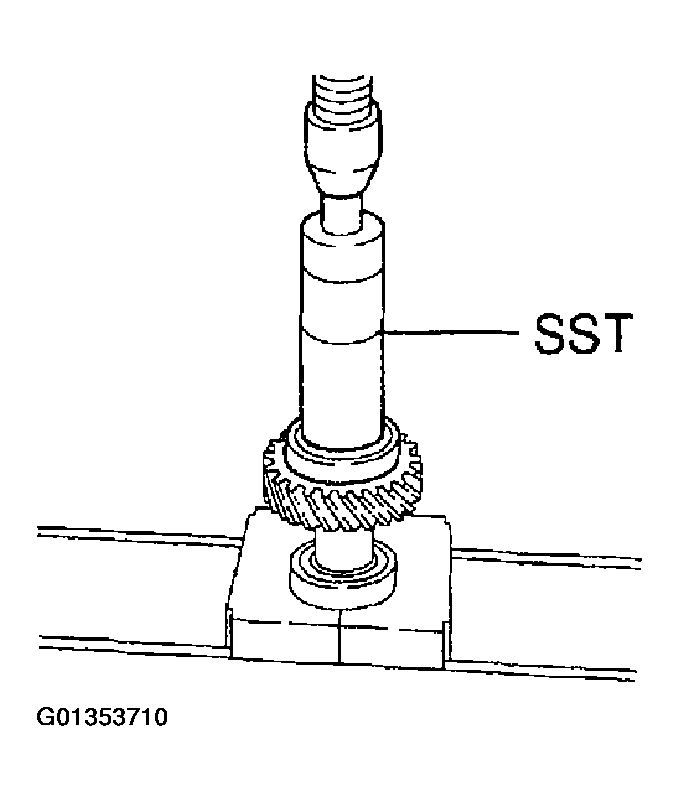

- Using SST and a press, install a new front ball bearing.
SST 09316-60011 (09316-00011)

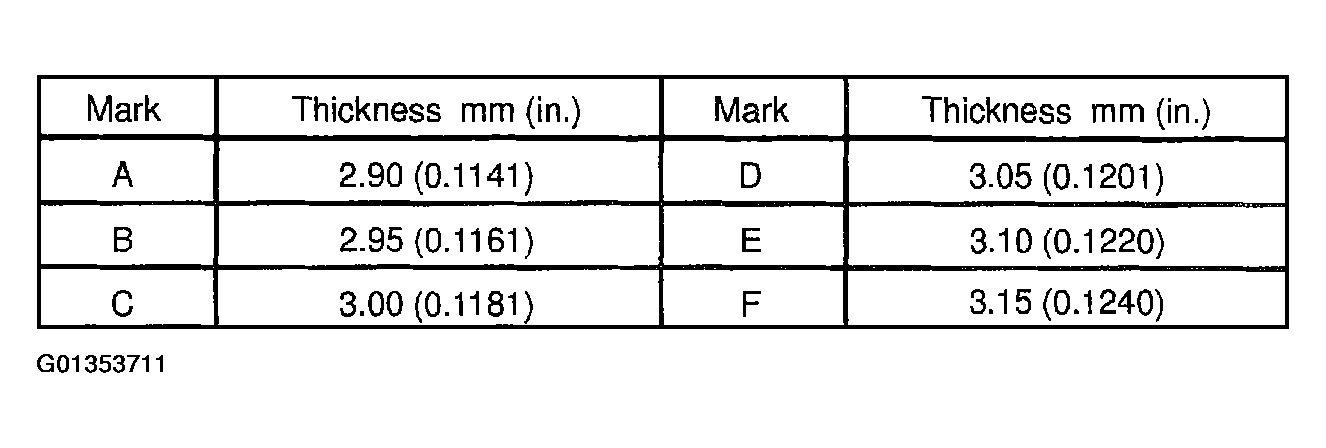

- Select a snap ring that will allow the minimum axial play.

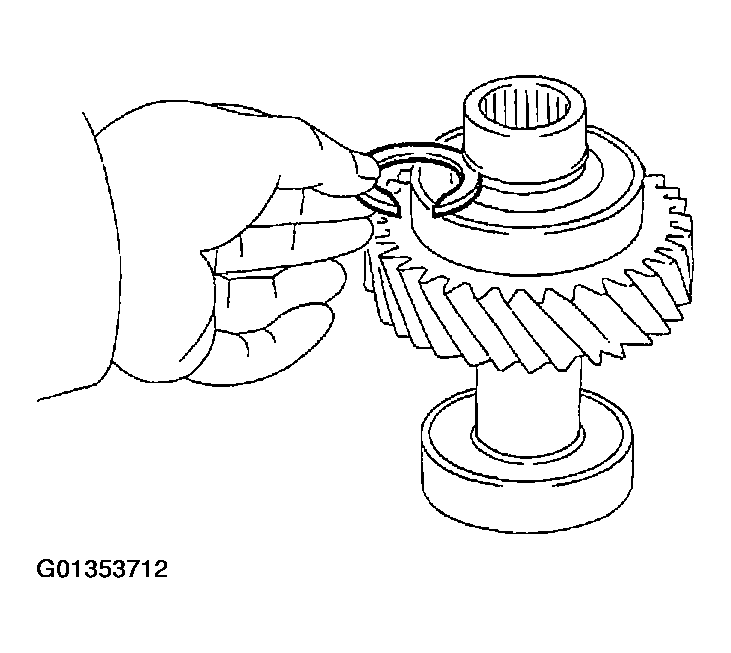

- Using a snap ring expander, install a new snap ring.
- Using SST and a press, install a new front ball bearing.
- INSTALL REAR BALL BEARING

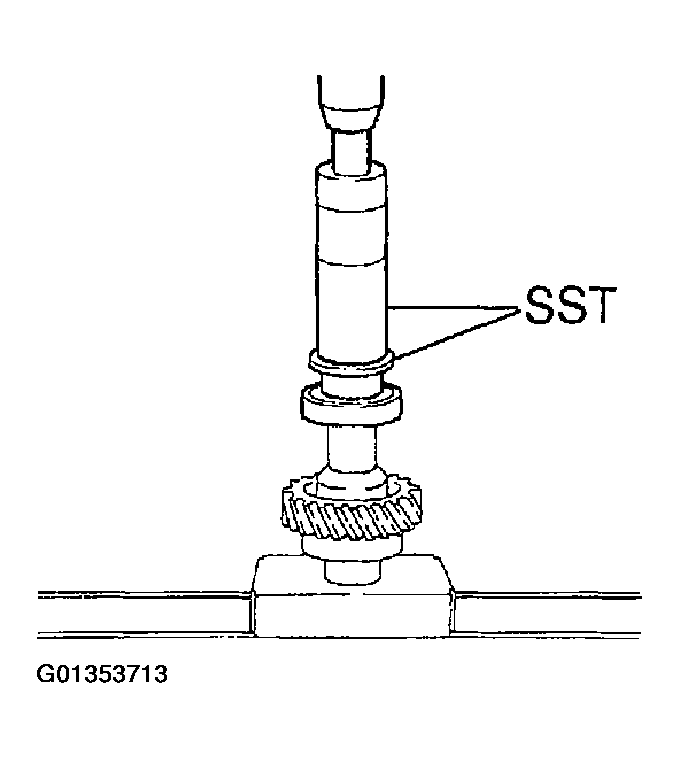

- Using SST and a press, install the rear ball bearing.
SST 09316-60011 (09316-00011, 09316-00031)

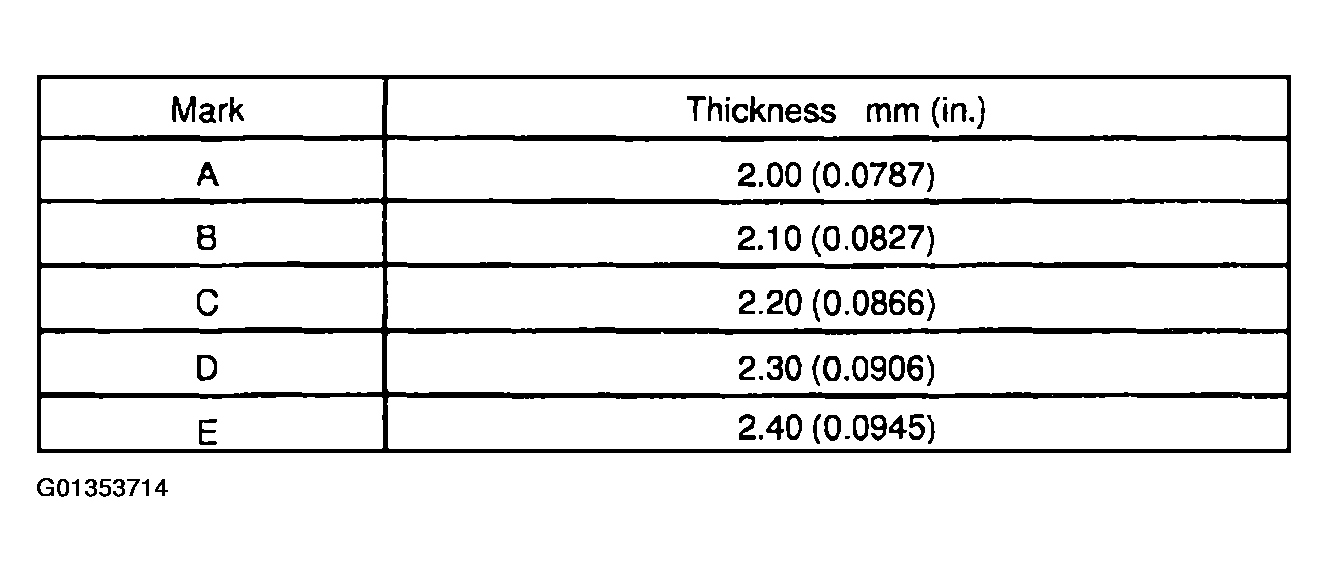

- Select a snap ring that will allow the minimum axial play.

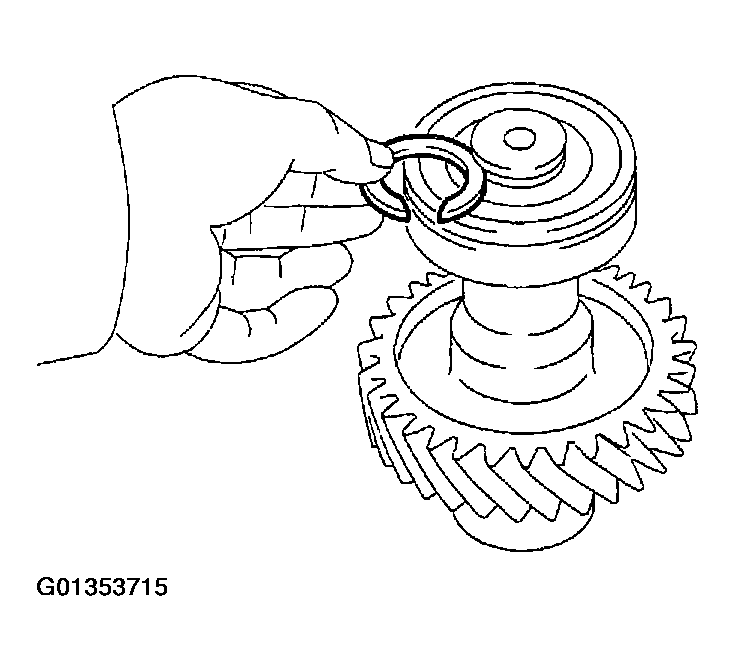

- Using a snap ring expander, install a new snap ring.
- Using SST and a press, install the rear ball bearing.
