Input Shaft: Disassembly
- REMOVE REAR BALL BEARING

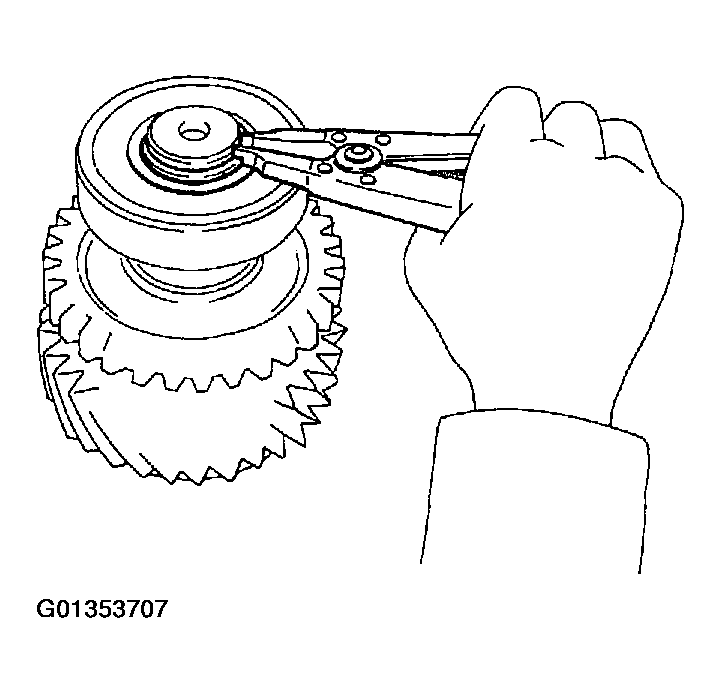

- Using a snap ring expander, remove the snap ring.

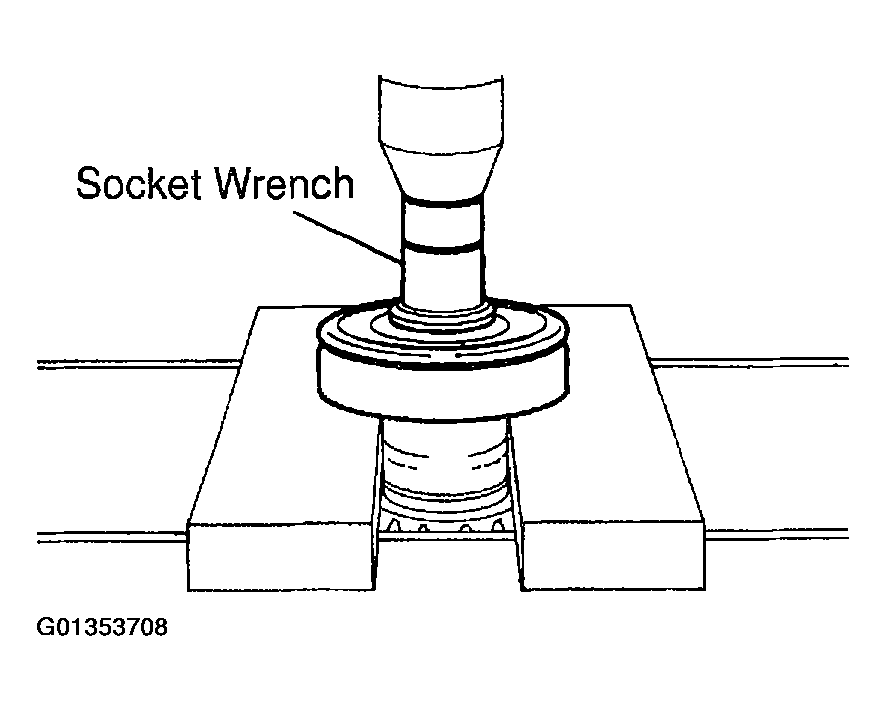

- Using a socket wrench and press, remove the rear bail bearing.
- REMOVE FRONT BALL BEARING
- Using a snap ring expander, remove the snap ring.

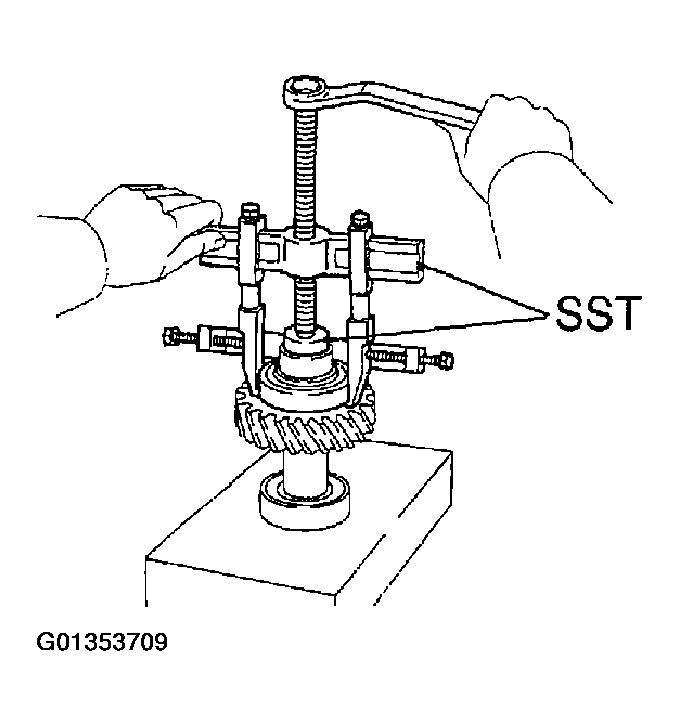

- Using SST, remove the front ball bearing.
SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04011, 09957-04010, 09958-04011), 09950-60010 (09951-00400)
