Center Differential: Disassembly
- INSPECT HIGH SPEED OUTPUT GEAR RADIAL AND THRUST CLEARANCE

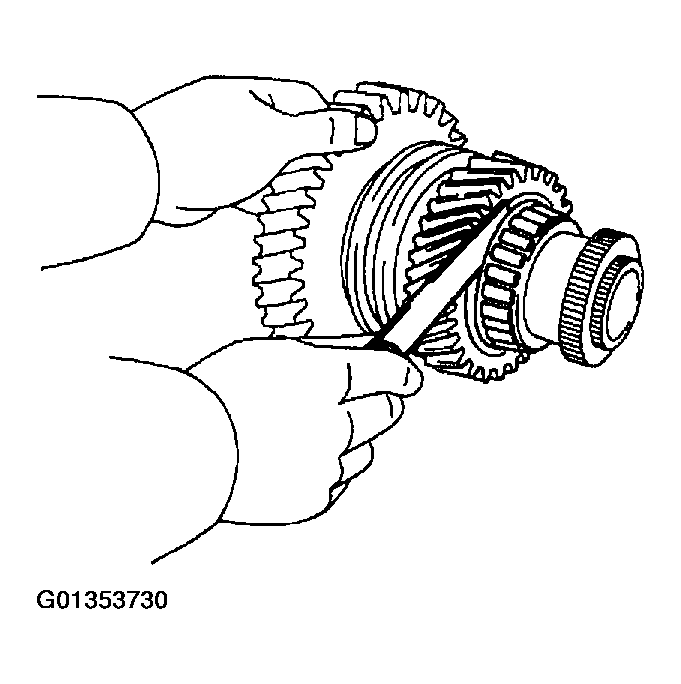

- Using a feeler gauge, measure the high speed output gear thrust clearance.
Standard clearance:
0.10 - 0.25 mm (0.0039 - 0.0098 in.)
Maximum clearance:
0.25 mm (0.0098 in.)

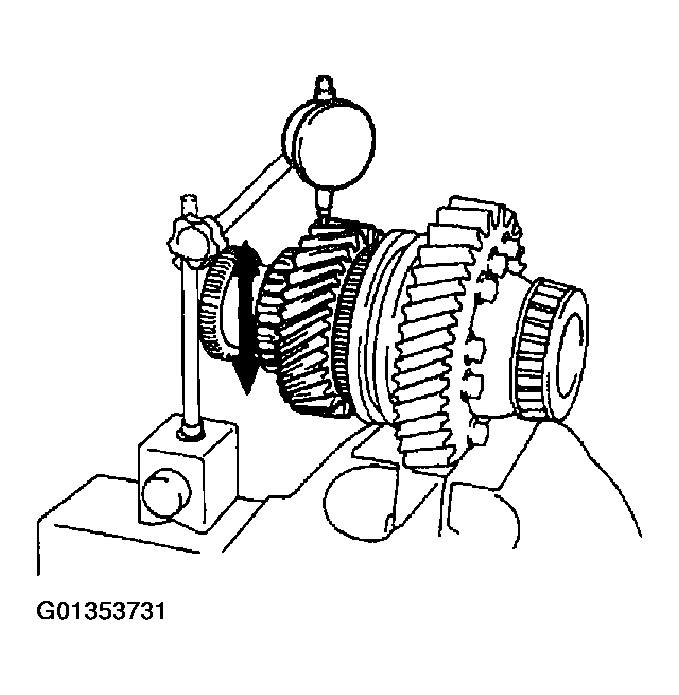

- Using a dial indicator, measure the high speed output gear radial clearance.
Standard clearance:
0.035 - 0.091 mm (0.00138 - 0.00358 in.)
Maximum clearance:
0.091 mm (0.00358 in.)
- Using a feeler gauge, measure the high speed output gear thrust clearance.
- REMOVE FRONT DRIVE GEAR PIECE
- Using a snap ring expander, remove the snap ring.
- Using SST and a press, remove the front drive gear piece.
SST 09950-00020, 09950-60010 (09951-00320)
NOTE: Be careful not to drop the center differential assembly.
