2003 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

On-Vehicle Repair

  1. DISCONNECT No. 1 VEHICLE SPEED SENSOR CONNECTOR

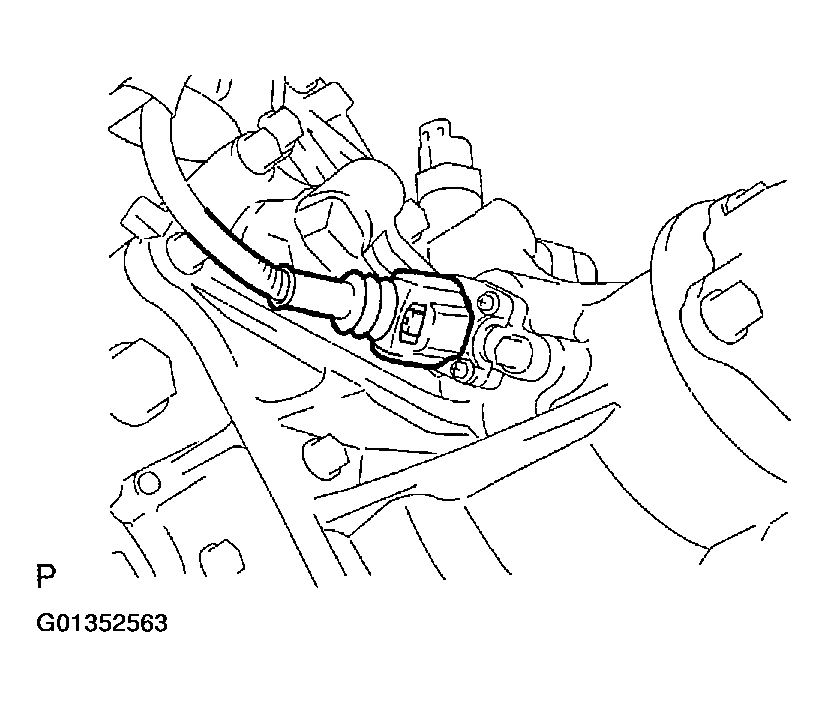

    Fig 1: Disconnecting Vehicle Speed Sensor Connector
    G01352563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE No. 1 VEHICLE SPEED SENSOR

    Remove the bolt and the No. 1 vehicle speed sensor.

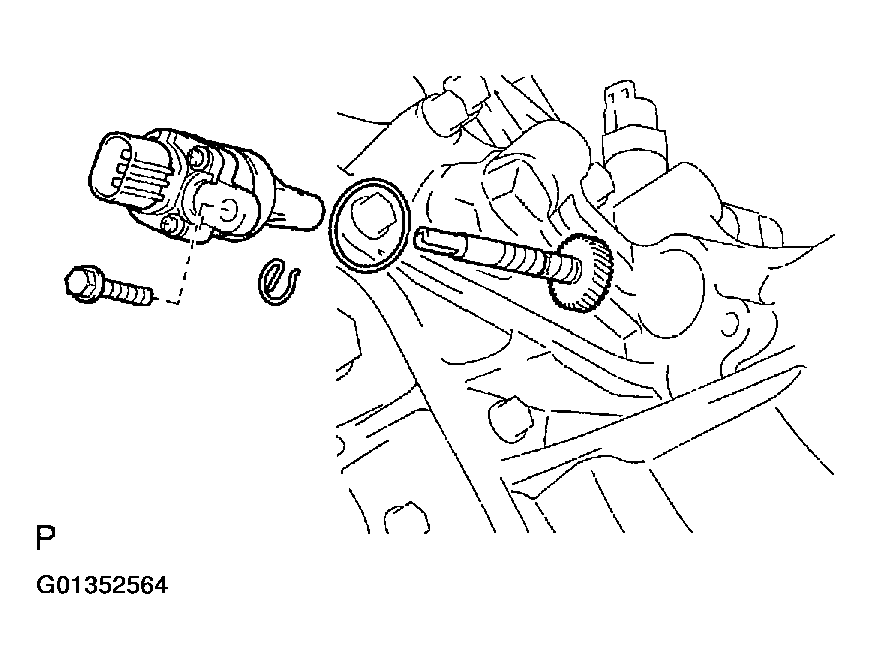

    Fig 2: Removing Vehicle Speed Sensor
    G01352564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISASSEMBLE No. 1 VEHICLE SPEED SENSOR
    1. Remove the O-ring from the speedometer driven gear assembly.
    2. Remove the clip and the speedometer driven gear from the speedometer driven gear sleeve.
  4. ASSEMBLE No. 1 VEHICLE SPEED SENSOR
    1. Install the speedometer driven gear and the clip to the speedometer driven gear sleeve.
    2. Coat a new O-ring with ATF.
    3. Install the O-ring to the speedometer driven gear assembly.
  5. INSTALL No. 1 VEHICLE SPEED SENSOR

    Install the No. 1 vehicle speed sensor with the bolt.

    Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)

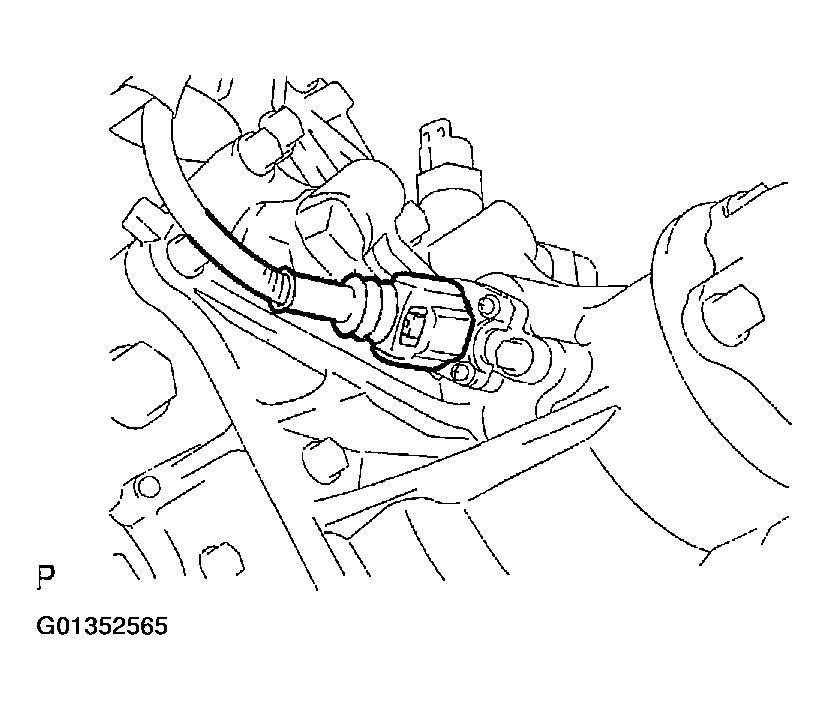

    Fig 3: Connecting Vehicle Speed Sensor Connector
    G01352565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT No. 1 VEHICLE SPEED SENSOR CONNECTOR
  7. DISCONNECT SPEED SENSOR NT AND SP2 CONNECTORS

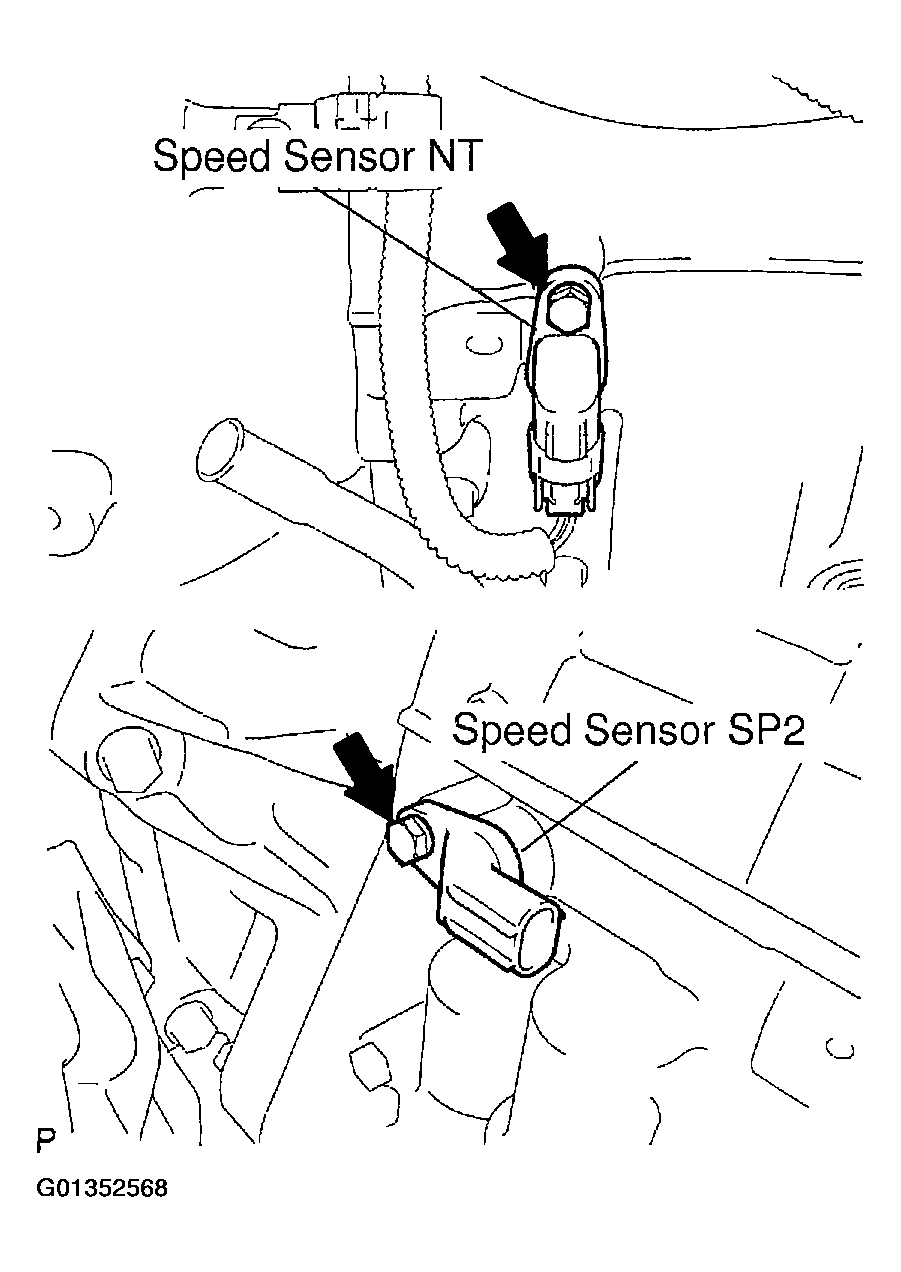

    Fig 4: Removing Speed Sensor NT & SP2
    G01352566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SPEED SENSOR NT AND SP2
    1. Remove the 2 bolts, speed sensor NT and SP2.
    2. Remove 2 O-rings from the speed sensor NT and SP2.

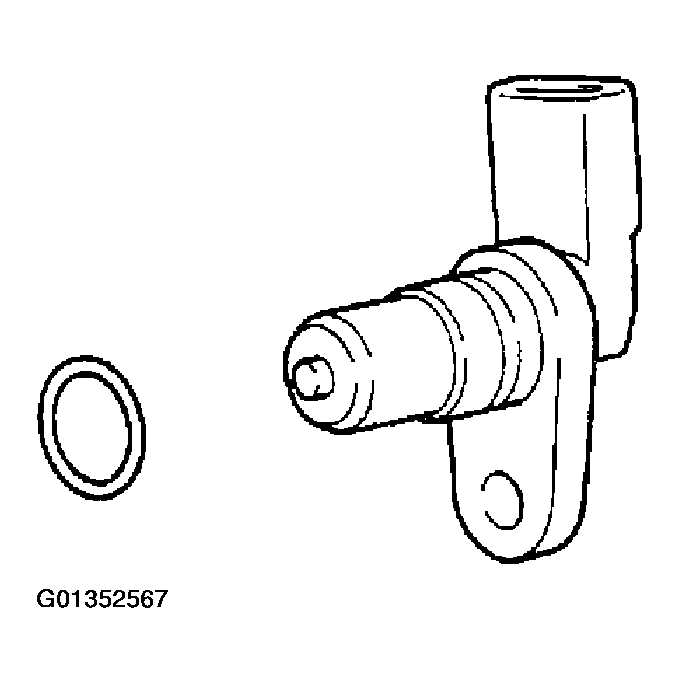

      Fig 5: Removing O-Rings From Speed Sensor NT & SP2
      G01352567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SPEED SENSOR NT AND SP2
    1. Coat 2 new O-rings with ATF and install them to the speed sensor NT and SP2.
    2. Install the speed sensor NT and SP2 with 2 bolts.

    Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    Fig 6: Installing Speed Sensor NT & SP2
    G01352568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT SPEED SENSOR NT AND SP2 CONNECTORS
