On-Vehicle Repair
- REMOVE ENGINE No. 2 UNDER COVER
- DRAIN ATF

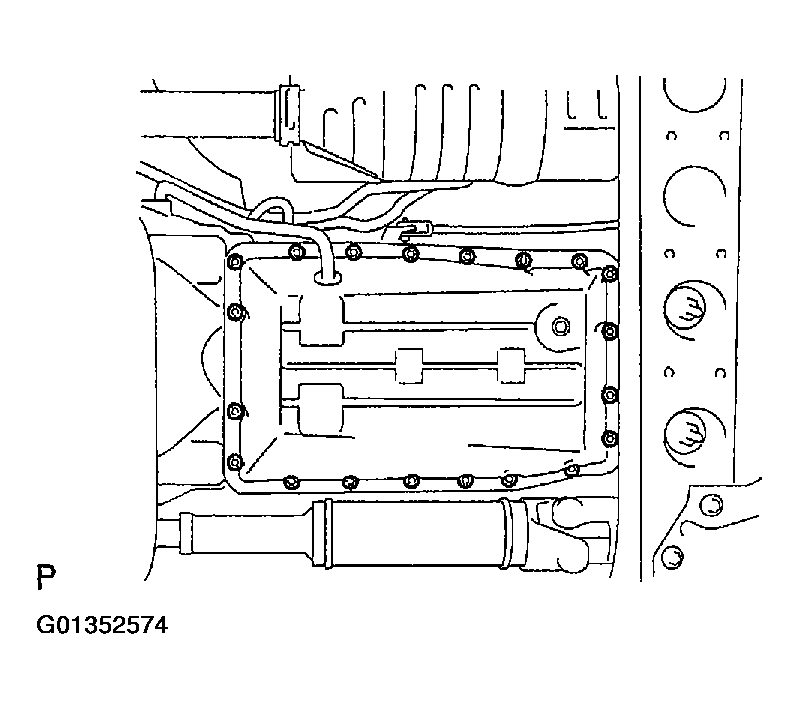

- REMOVE OIL PAN NOTE: Some fluid will remain in the oil pan.
- Remove the 20 bolts.
- Remove the oil pan gasket.

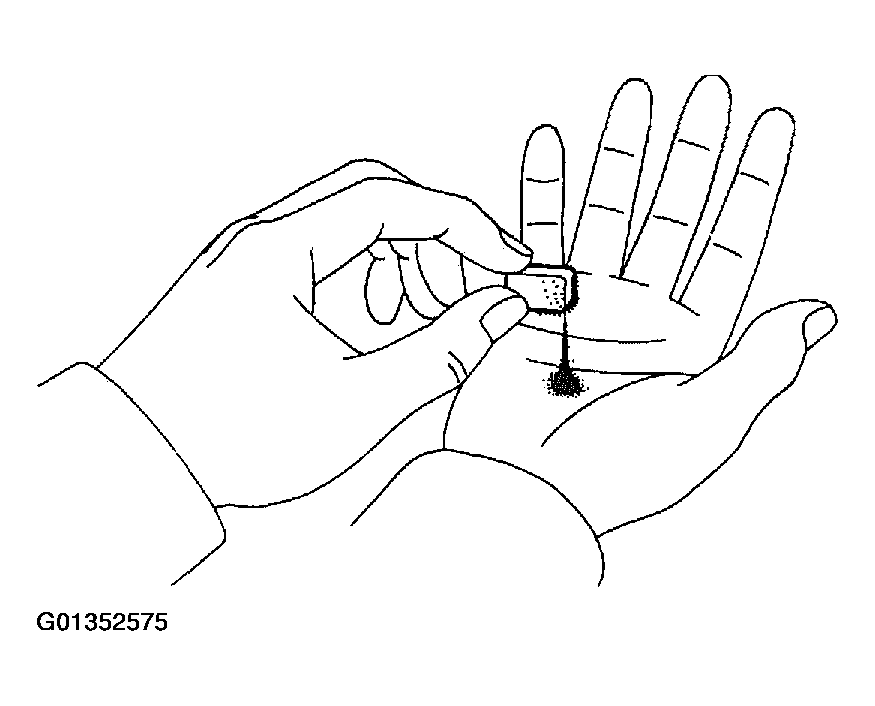

- EXAMINE PARTICLES IN PAN
Remove the magnets and use them to collect steel particles. Carefully look at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission.
Steel (magnetic)...bearing, gear and clutch plate wear Brass (non-magnetic)...bushing wear

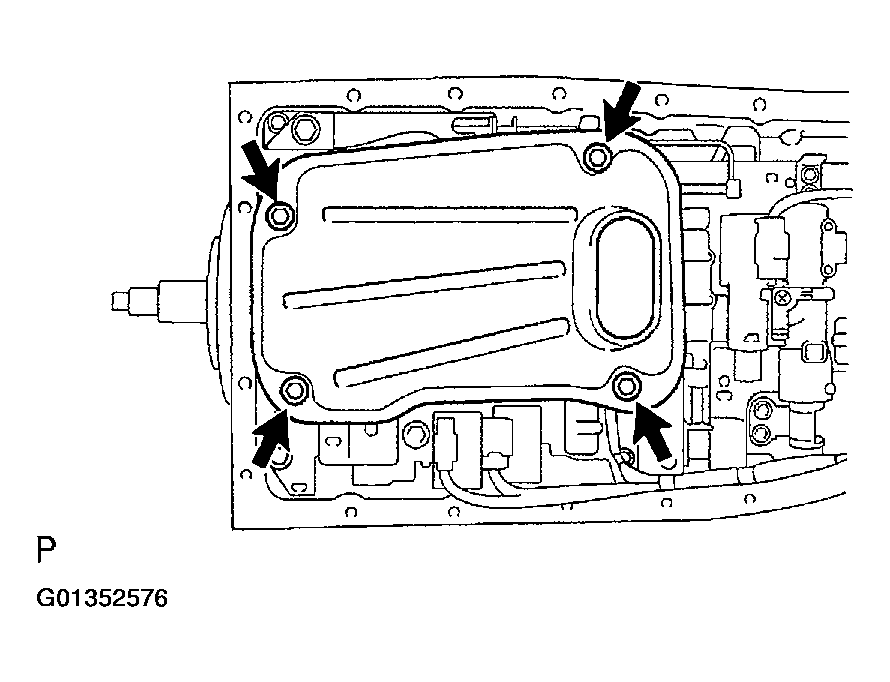

- REMOVE OIL STRAINER
Remove the 4 bolts, the oil strainer and the O-ring.
NOTE: Be careful as some fluid will come out with the oil strainer.
