2003 Lexus LS 430FACTORY OEM SERVICE PROCEDURE
On-Vehicle Repair
CAUTION:
When working with FIPG material, you must observe the following items.
- Using a razor blade and gasket scraper, remove all the old FIPG material from the gasket surfaces.
- Thoroughly clean all components to remove all the loose material.
- Clean both sealing surfaces with a non-residue solvent.
- Apply FIPG in an approx. 1 mm (0.04 in.) wide bead along the sealing surface.
- Parts must be assembled within 10 minutes of application. Otherwise, the FIPG material must be removed and reapplied.
- REMOVE DRAIN PLUG WITH GASKET AND DRAIN ATF
- REMOVE OIL PAN NOTE: Some fluid will remain in the oil pan.

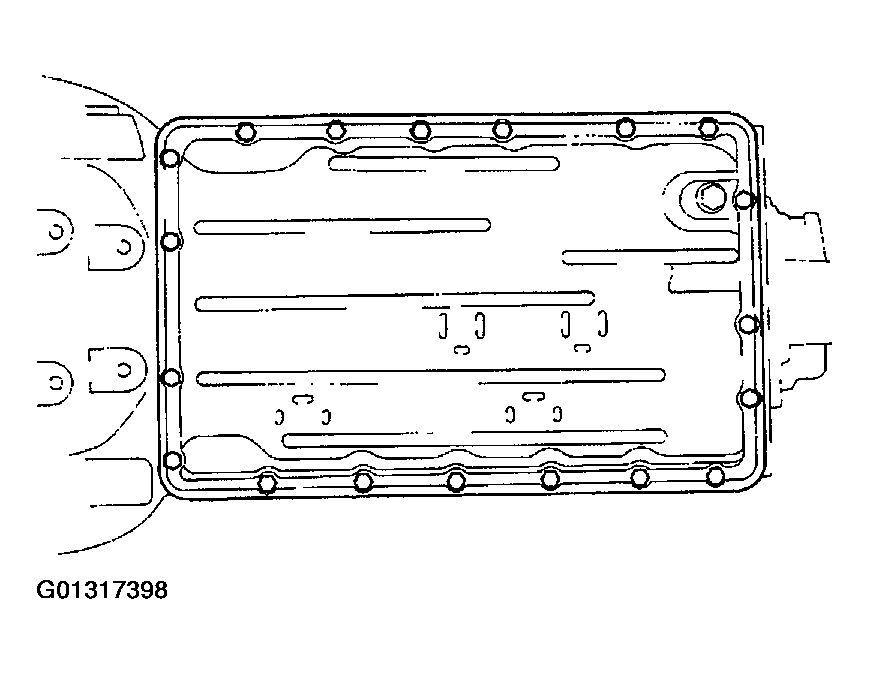

- Remove the 19 bolts.
- Install the blade of SST between the transmission case and oil pan, cut off applied sealer, and remove the oil pan.
SST 09032-00100
NOTE: When removing the oil pan, be careful not to damage the oil pan flange.
Factory Service Tools
