2003 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

On-Vehicle Repair

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE No. 2 UNDER COVER
  2. DRAIN ATF
  3. REMOVE OIL PAN (See  VALVE BODY ASSEMBLY   )
  4. REMOVE OIL STRAINER (See  VALVE BODY ASSEMBLY   )

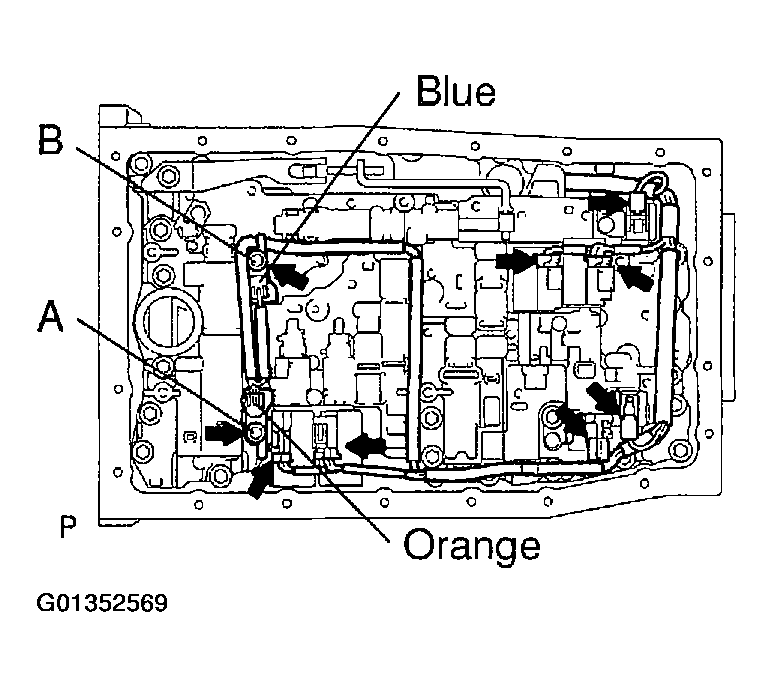

    Fig 1: Disconnecting Solenoid Valve Connectors
    G01352569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ATF TEMPERATURE SENSOR
    1. Disconnect the 7 solenoid valve connectors.
    2. Remove the 2 bolts and disconnect the 2 ATF temperature sensors.

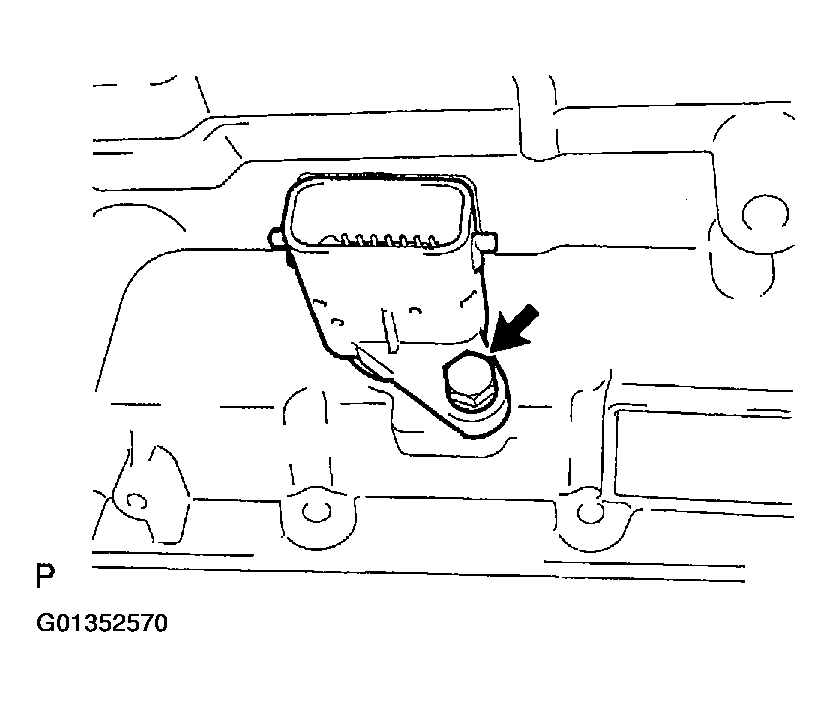

      Fig 2: Removing Transmission Wire Harness
      G01352570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the solenoid connector.
    4. Remove the bolt and the transmission wire harness.

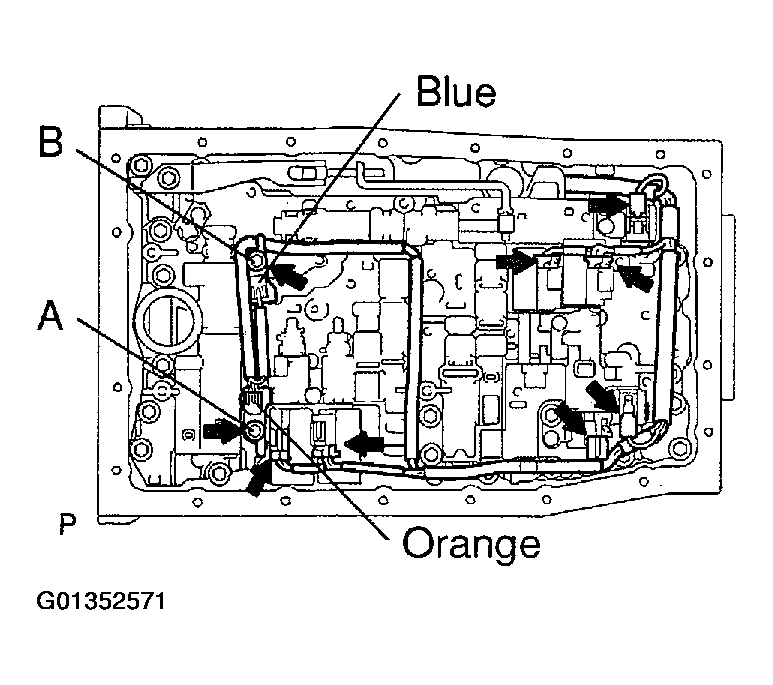

      Fig 3: Connecting Solenoid Valve Connectors
      G01352571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ATF TEMPERATURE SENSOR
    1. Install the transmission wire harness.
    2. Install the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    3. Connect the solenoid connector.
    4. Connect the 7 solenoid valve connectors.
    5. Connect the 2 ATF temperature sensors with the 2 bolts.

      Torque:

      A: 11 N.m (112 kgf.cm, 8 ft.lbf)

      B: 10 N.m (100 kgf.cm, 7 ft.lbf)

      Bolt length:

      Bolt A: 36 mm (1.42 in.)

      Bolt B: 12 mm (0.47 in.)

      Sensor wire harness:

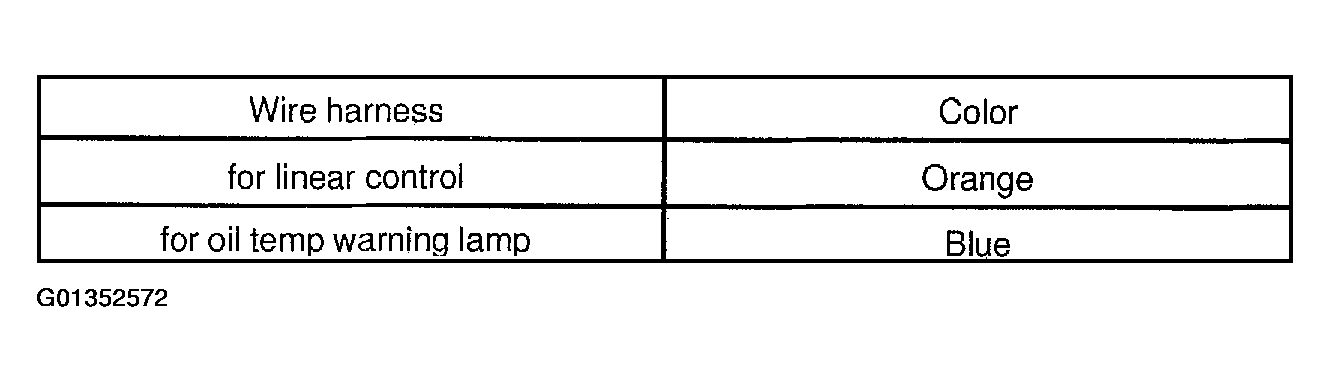

      Fig 4: Sensor Wire Harness Color Table
      G01352572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL OIL STRAINER (See  VALVE BODY ASSEMBLY   )
  8. INSTALL OIL PAN (See  VALVE BODY ASSEMBLY   )
  9. FILL ATF AND CHECK ATF LEVEL (See  CHECKING FLUID LEVELS  )
  10. INSTALL ENGINE No. 2 UNDER COVER
