2003 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Steering Pad Switch Modulator: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE SWITCH & VOLUME CASE
1. Apply protective tape to the steering wheel boss cover lower as shown in Fig 1 .
2. Using a screwdriver, disengage the 3 claws and remove the switch & volume case.
HINT:

Tape the screwdriver tip before use.

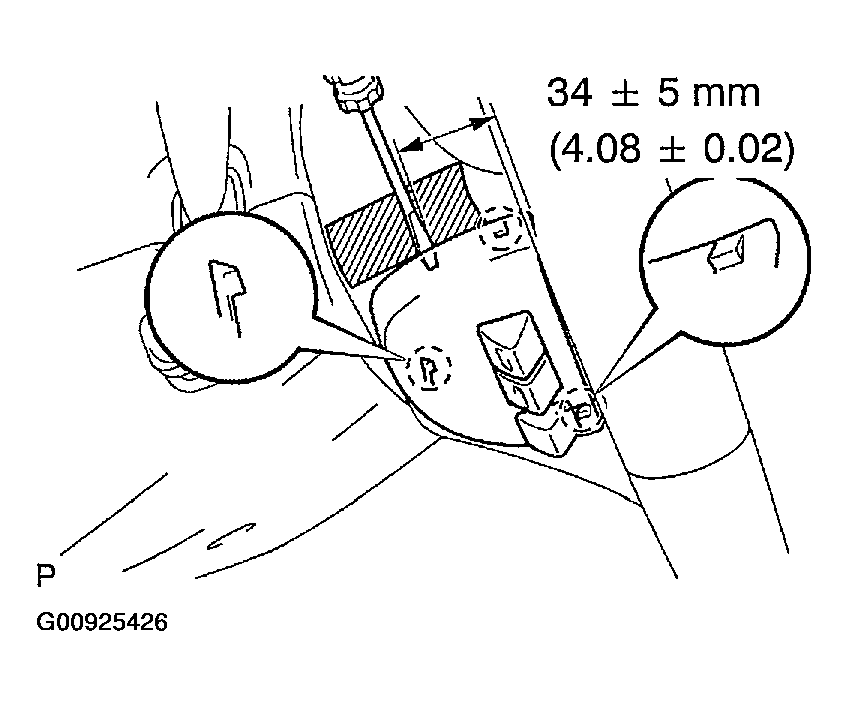

Fig 1: Disengaging Claws & Removing Switch & Volume Case Using Screwdriver
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD SWITCH MODULATOR
1. Remove the 2 screws.
2. Remove the steering pad switch modulator then disconnect the connector.

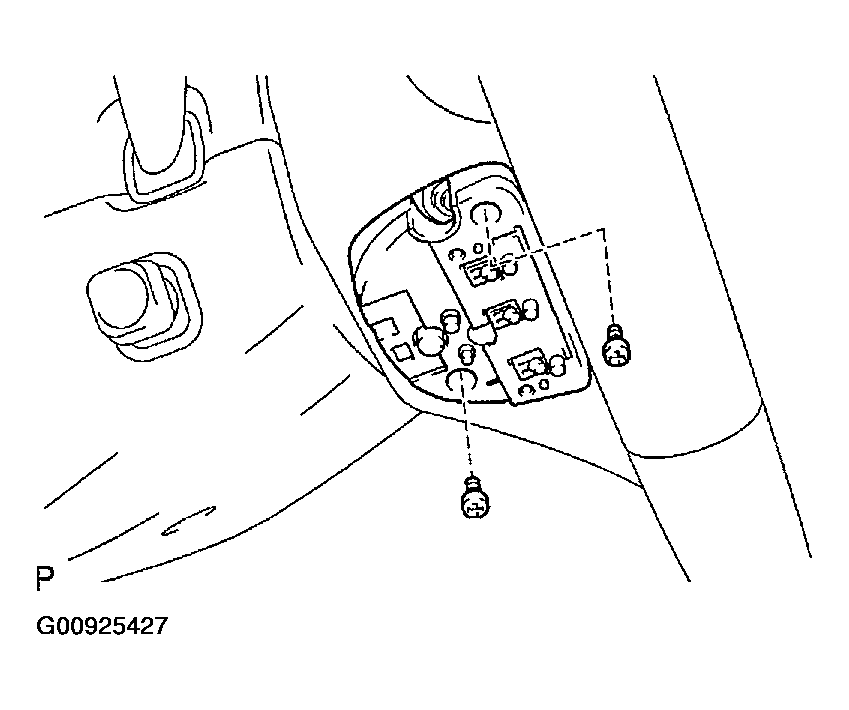

  Fig 2: Removing Screws & Steering Pad Switch Modulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
