(2) - Inspect One Touch Power Window System (Using Ammeter W/Current-Measuring Probe)

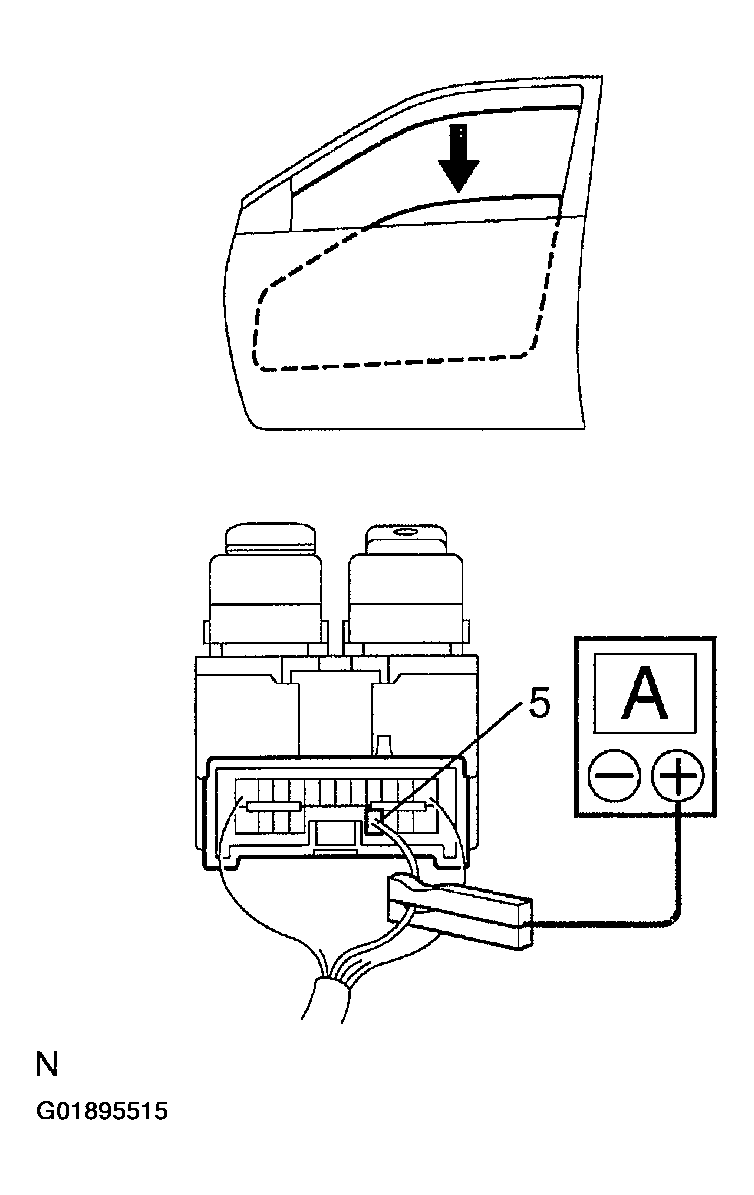

- Remove the driver door ECU with connectors connected.
- Attach a current-measuring probe to terminal 5 of the wire harness.
- Turn the ignition switch ON and set the power window switch in the down position.
- As the window goes down, check that the current flow is approximately 7 A.
- Check that the current increases up to approximately 14.5 A or more when the window stops going down.
The PTC opens some 4-90 seconds after the window stops going down, so that check must be made before the PTC operates.
If operation is as specified, replace the driver door ECU.
