Power Window Control System: Inspection

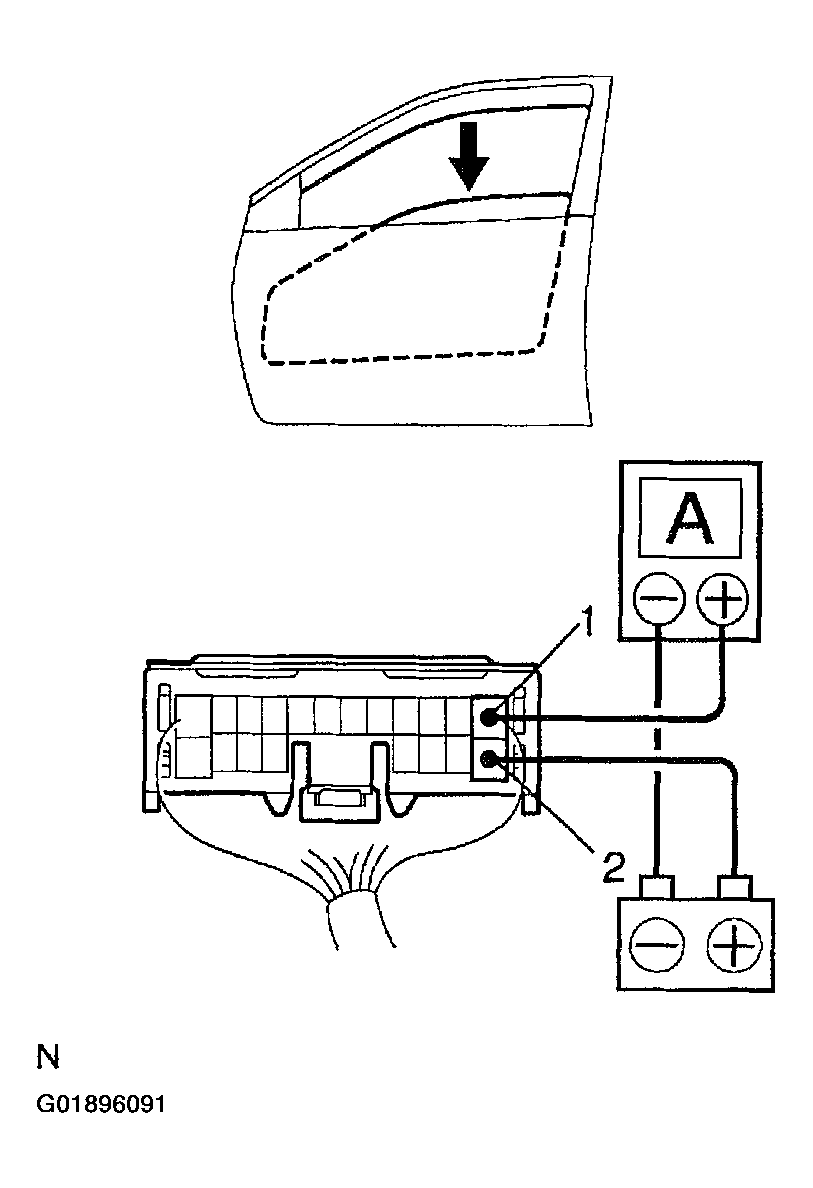

- Inspect one-touch power window system current of circuit (Using an ammeter)
:
- Disconnect the connector from the master switch.
- Connect the positive (+) lead from the ammeter to terminal 1 on the wire harness side connector and the negative (-) lead to negative (-) terminal of the battery.
- Connect the positive (+) lead from the battery to terminal 2 on the wire harness side connector.
- As the window goes down, check that the current flow is approximately 7 amps.
- Check that the current increases up to approximately 14.5 amps or more when the window stops going down.
If the operation is not as specified, replace the master switch.

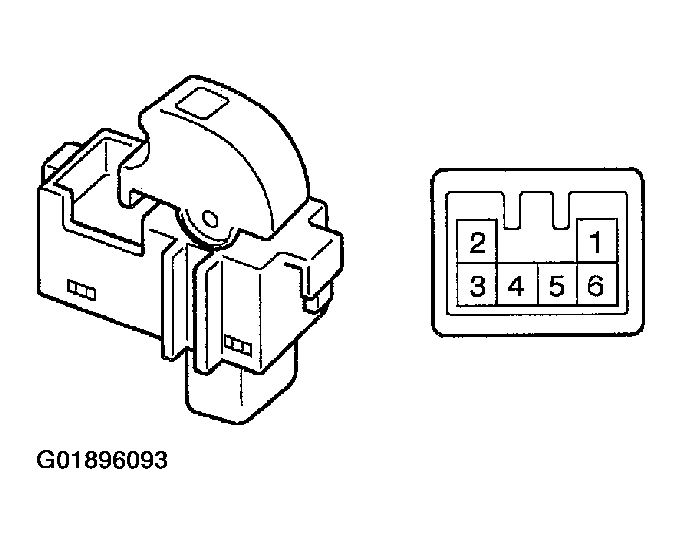

NOTE: The PTC opens about 4 - 90 seconds after the window stops going down, so that check must be made before the PTC operates. - Inspect rear door power window switch continuity :
