TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Engine Under Cover Bolts

21 (29)

Intake Manifold Assembly

Bolts

13 (18)

Nuts

13 (18)

Manifold Stay Bolts

30 (40)

Starter Mounting Bolts

27 (37)

29(39)

Water Bypass

Joint Nuts

13 (18)

Pipe Bolt

13 (18)

Yoke Bolts

27 (36)

INCH Lbs. (N.m)

End Cover Bolts

1.4 Kw

13 (1.5)

1.6 Kw

53 (6)

2.0 Kw

34 (3.8)

Starter Through Bolts

1.4 Kw

52 (5.9)

1.6 Kw

53 (6)

2 Kw

82 (9.3)

Magnetic Switch

Terminal No. 30 Nut

87 (9.8)

Terminal "C" Nut

1.4 Kw

52 (5.9)

1.6 Kw

88 (10)

2 Kw

52 (5.9)

Screws

1.4 Kw

52 (5.9)

1.6 Kw

66 (7.5)

2 Kw

82 (9.3)

Wire Harness Nut

115 (13)

⁽¹⁾

Unlisted Torque Specifications: manufacturer does not provide a torque specification for all bolts and nuts in each procedure. To determine proper torque specification, use the graphic charts. To determine class of bolt, see Fig 1. To determine torque specification for class of bolt by size, see Fig 2. To determine class of nut, see Fig 3.

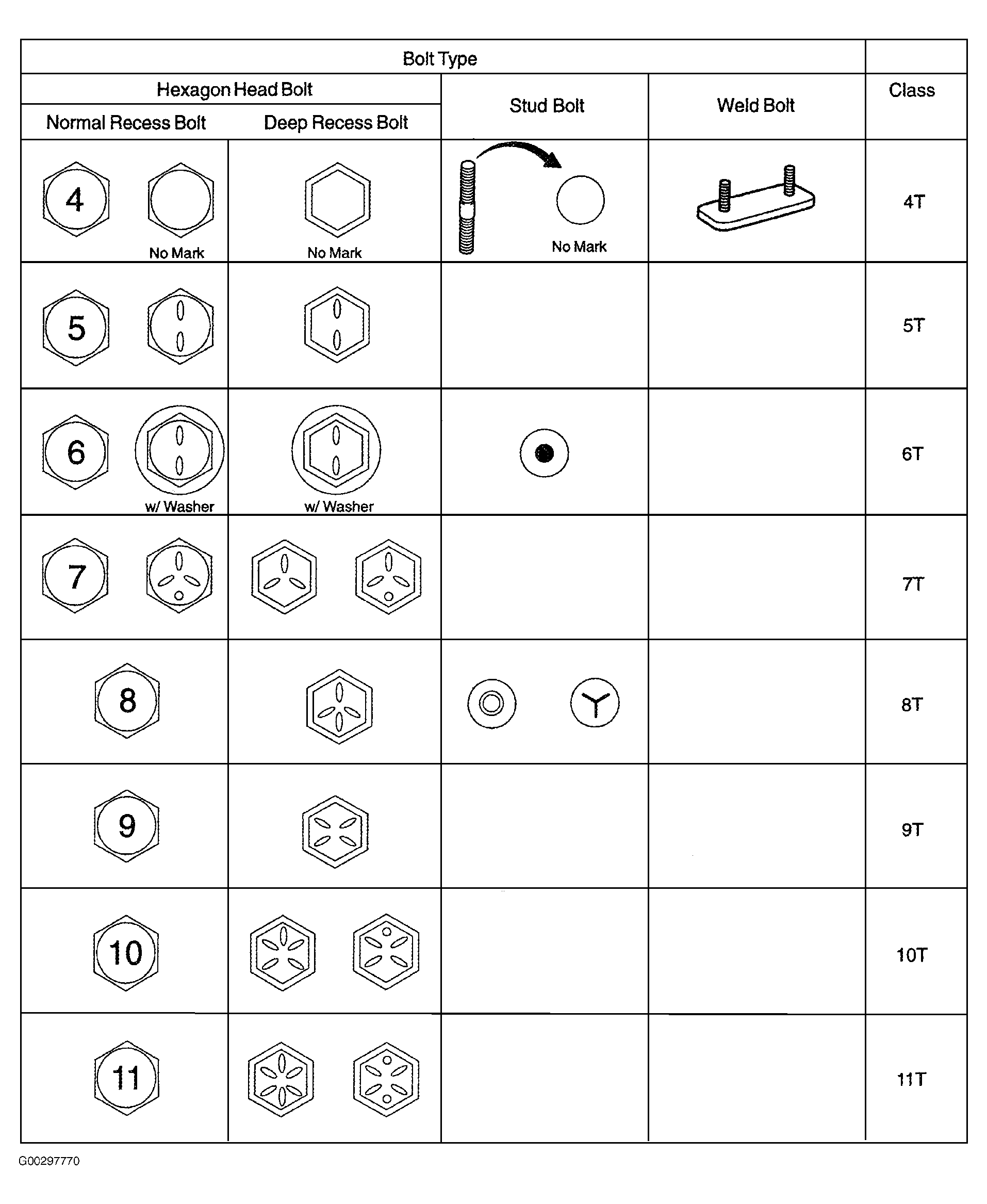

Fig 1: Bolt Class Determination Chart
