WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

Remove battery and replace with new battery. See REMOTE TRANSMITTER BATTERY REPLACEMENT under REMOVAL & INSTALLATION. If new battery is not available, connect 2 new 1.5-volt batteries in series. Using jumper wires, connect positive lead to positive (side) terminal of remote transmitter and connect negative lead to negative (bottom) terminal of remote transmitter. See Fig 1.
Stand about 3 feet from outside door handle on driver door. Point remote transmitter toward vehicle. Depress any remote transmitter button for about one-second. If doors or luggage compartment respond properly, remote transmitter is okay. Check condition of original battery. See REMOTE TRANSMITTER BATTERY CHECK . If doors or luggage compartment do not respond properly, replace remote transmitter.

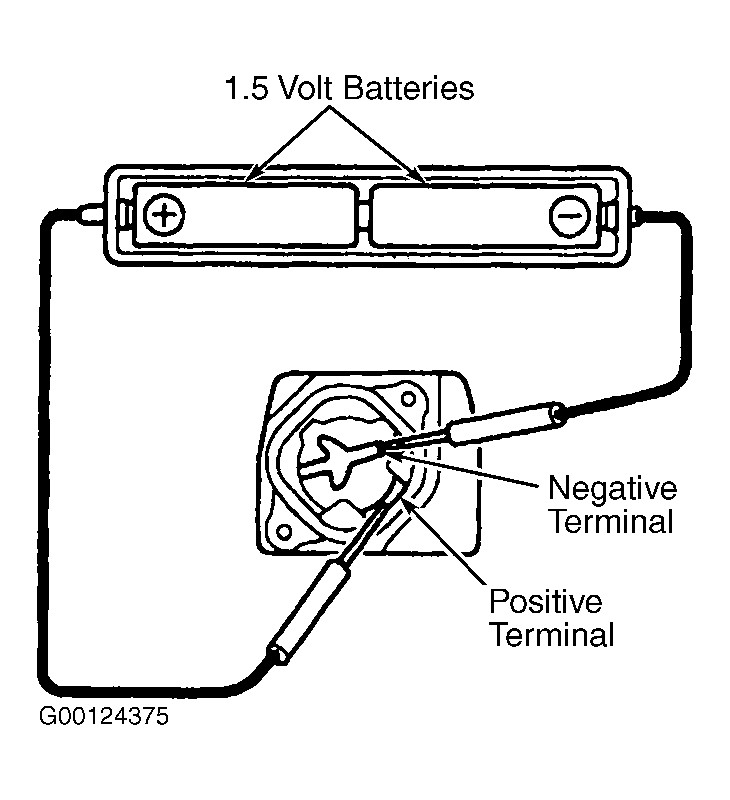

Fig 1: Testing Remote Transmitter When Replacement Battery Is Not Available

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

When to See a Mechanic

Stop DIY work and contact a certified mechanic immediately if any of the following apply:

• You smell fuel, burning insulation, or see smoke.

• Brakes feel soft, pull hard to one side, or make grinding noises.

• The engine overheats, stalls repeatedly, or misfires under load.

• You are missing required tools, torque specs, or safe lifting equipment.

• You are not confident in the next step or safety outcome.
