Engine Unit: Installation

1. Install the front spacer, drive plate and rear plate on the crankshaft.

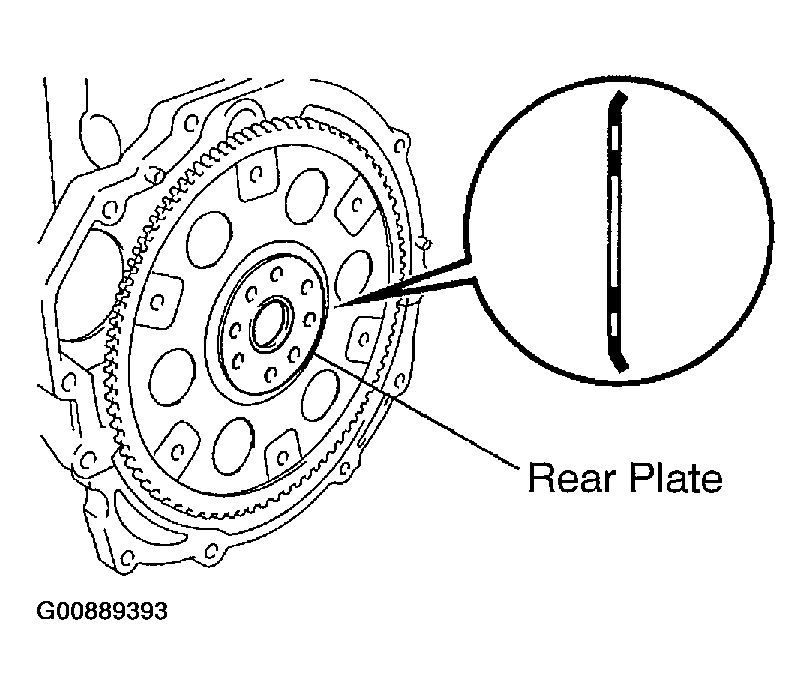

   Fig 1: Installing Drive Plate (A/T)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply adhesive to 2 or 3 threads of the mounting bolt end.
   1. Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent
3. Install the uniformly tighten the 8 mounting bolts in several passes, in the sequence shown in Fig 2.
   1. Torque: 83 N.m (850 kgf.cm, 61 ft.lbf)

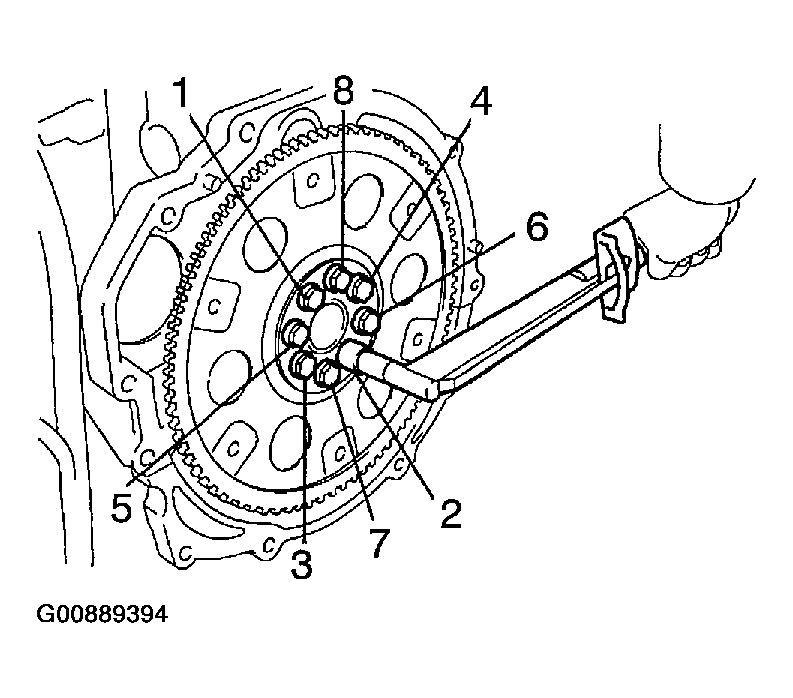

Fig 2: Tightening Mounting Bolts In Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Attach the transmission to the engine.
2. Install the ground wire and 5 bolts.
   1. Torque: 72 N.m (730 kgf.cm, 53 ft.lbf)

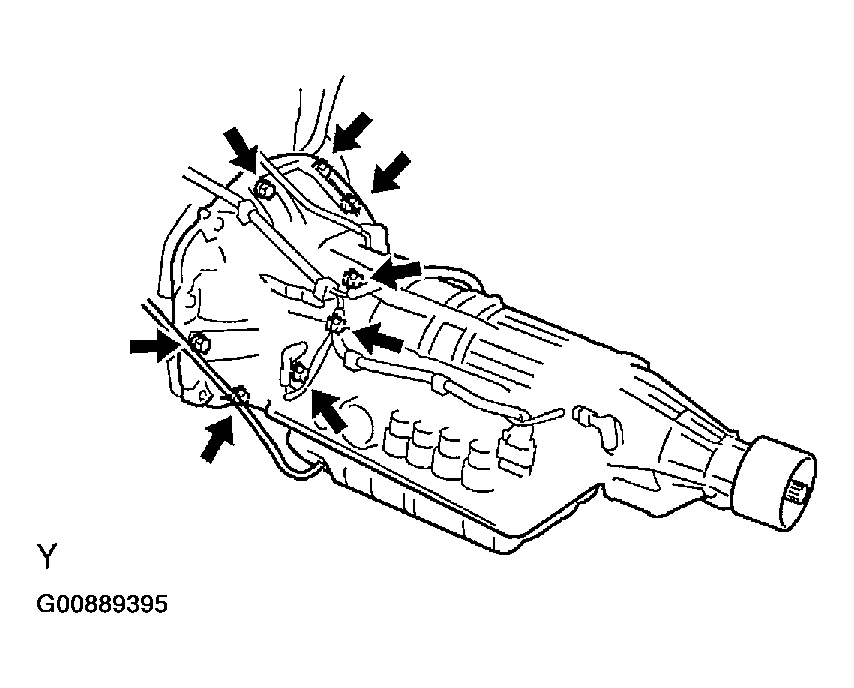

Fig 3: Installing Transmission To Engine

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the VSS connector.
2. Connect the PNP switch connector.
3. Connect the solenoid connector.
4. Connect the direct clutch speed sensor connector.
5. Connect the engine wire to the 3 wire clamps.

1. Connect the VSS connector.
2. Connect the back-up light switch connector.

1. Install the starter and clamp bracket with the 2 bolts.
   1. Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)
2. Connect the starter connector.

1. Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

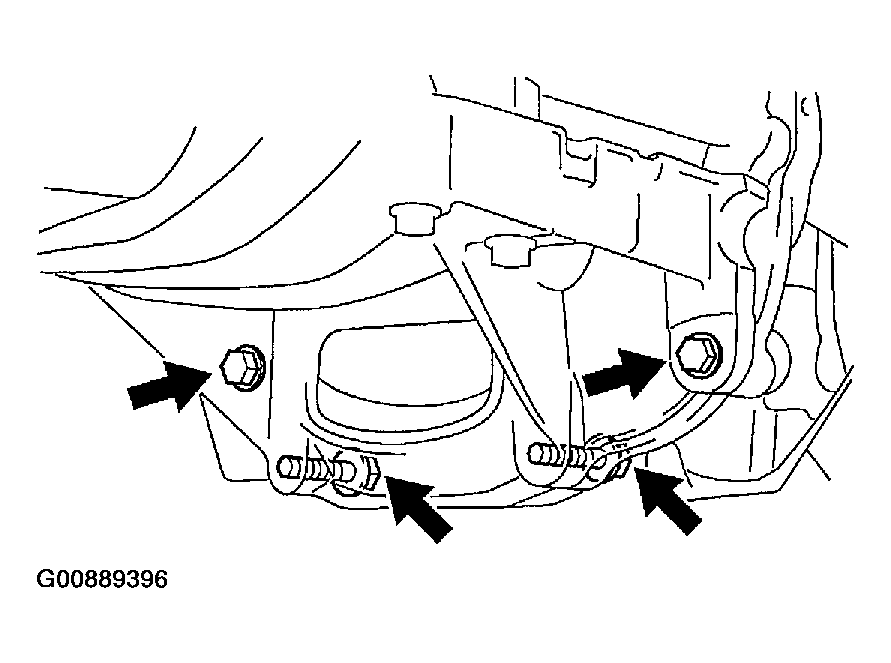

Fig 4: Installing 4 Bolts Holding No. 1 Oil Pan To Transmission

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply adhesive to 2 or 3 threads of the bolt end.
   1. Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent
2. Hold the crankshaft pulley bolt with a wrench, and install the 6 bolts evenly.
   1. Torque: 48 N.m (490 kgf.cm, 35 ft.lbf)

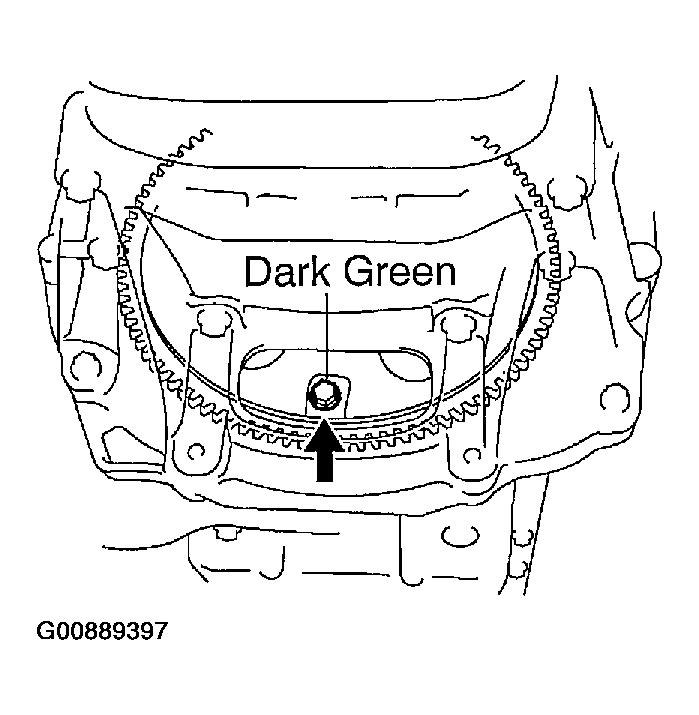

   Fig 5: Installing Torque Converter Clutch Bolts (A/T)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   First install the dark green colored bolt, install the other bolts.

3. Install the hole plug.

1. Install 2 new gaskets to the cylinder head.
2. Using a 14 mm deep socket wrench, install the exhaust manifold with the 8 nuts. Uniformly tighten the nuts in several passes.
   1. Torque: 40 N.m (408 kgf.cm, 30 ft.lbf)

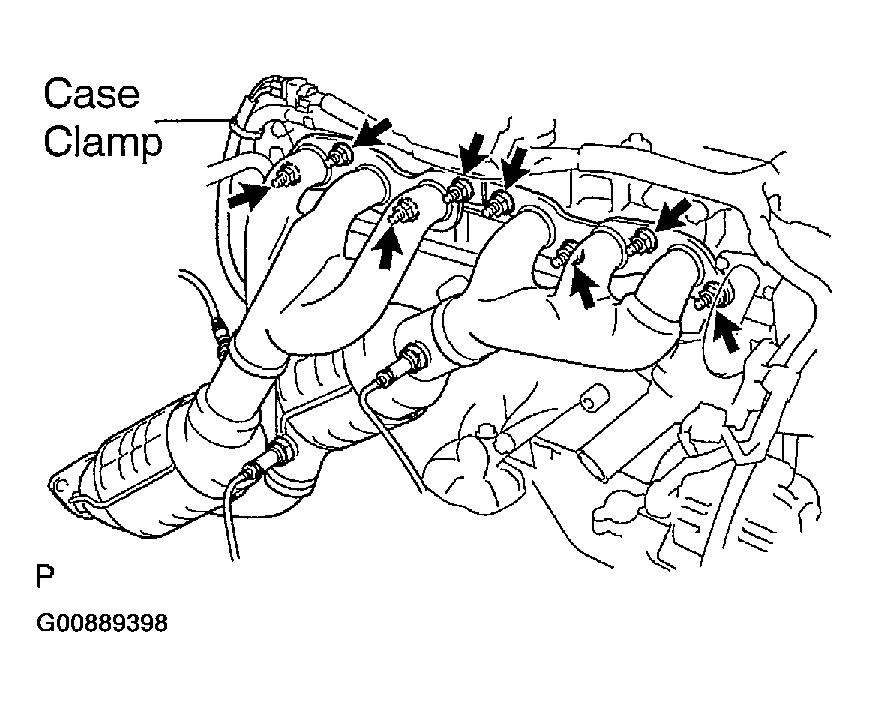

   Fig 6: Installing Exhaust Manifold

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the heated oxygen sensor (bank 2 sensor 1) connector.
4. Install the case clamp.

1. Install a new O-ring to the dipstick guide.

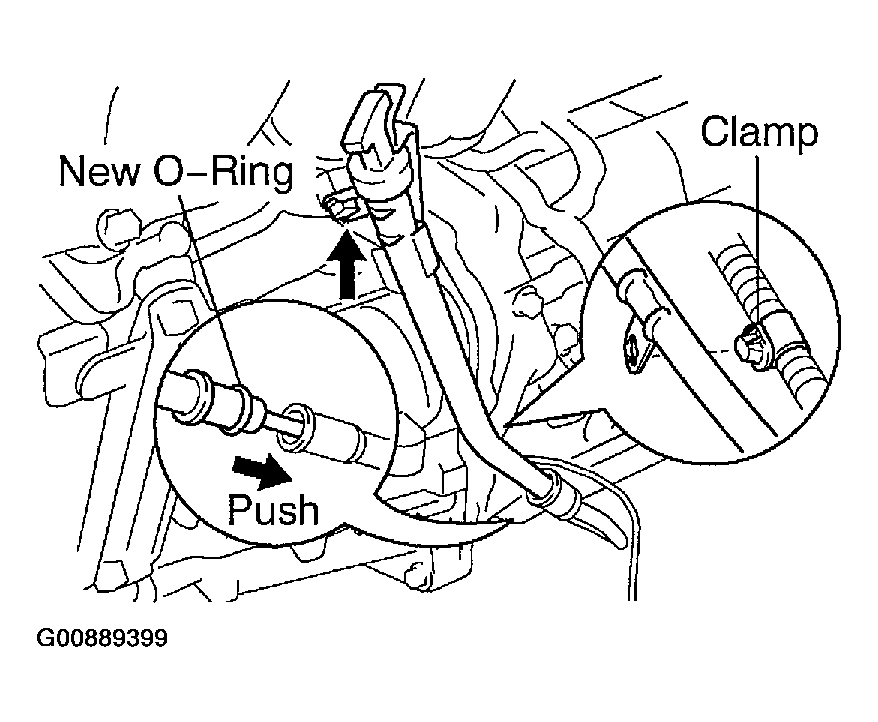

   Fig 7: Installing O-Ring To Dipstick Guide (A/T)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push in the dipstick guide end to the dipstick tube of the oil pan.
3. Install the dipstick guide with the bolt.
4. Connect the engine wire clamp to the dipstick guide.
5. Install the dipstick.

Install the suspension member and to the engine with the 4 nuts.

1. Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

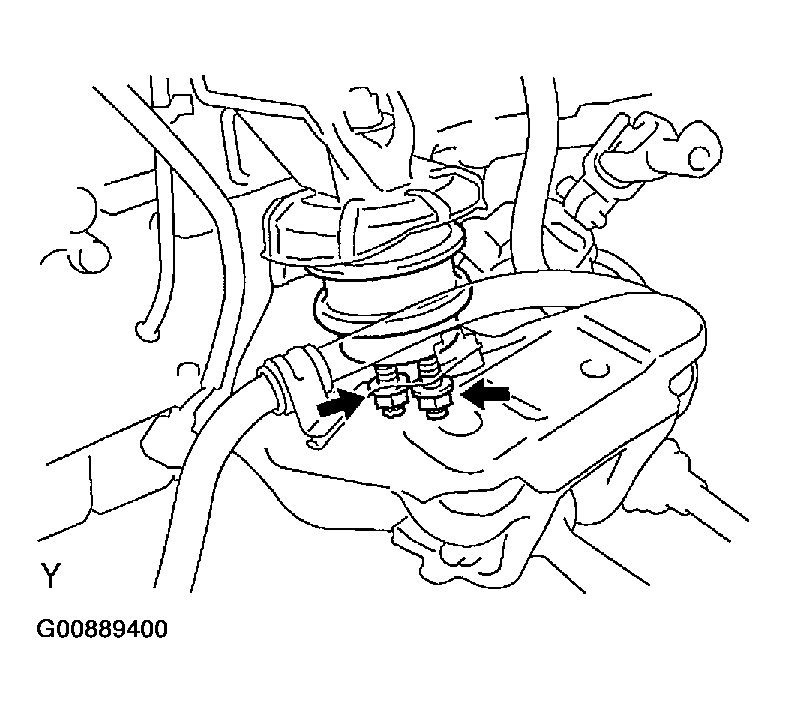

Fig 8: Installing Suspension Member To Engine

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
