2003 Lexus GX 470FACTORY OEM SERVICE PROCEDURE

Steering Sensor: Replacement

  1. PRECAUTION (See  AIR BAG SAFETY PRECAUTIONS  )
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG SAFETY PRECAUTIONS  )
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE STEERING WHEEL COVER LOWER NO. 3 (See  OVERHAUL  )
  5. REMOVE STEERING WHEEL COVER LOWER NO. 2 (See  OVERHAUL  )
  6. REMOVE HORN BUTTON ASSY (See  OVERHAUL  )
  7. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  8. REMOVE STEERING COLUMN COVER (See  OVERHAUL  )
  9. REMOVE SPIRAL CABLE SUB-ASSY (See  OVERHAUL  )
  10. REMOVE TURN SIGNAL SWITCH ASSY (See  OVERHAUL  )
  11. REMOVE STEERING SENSOR
    1. Remove the steering sensor connector.

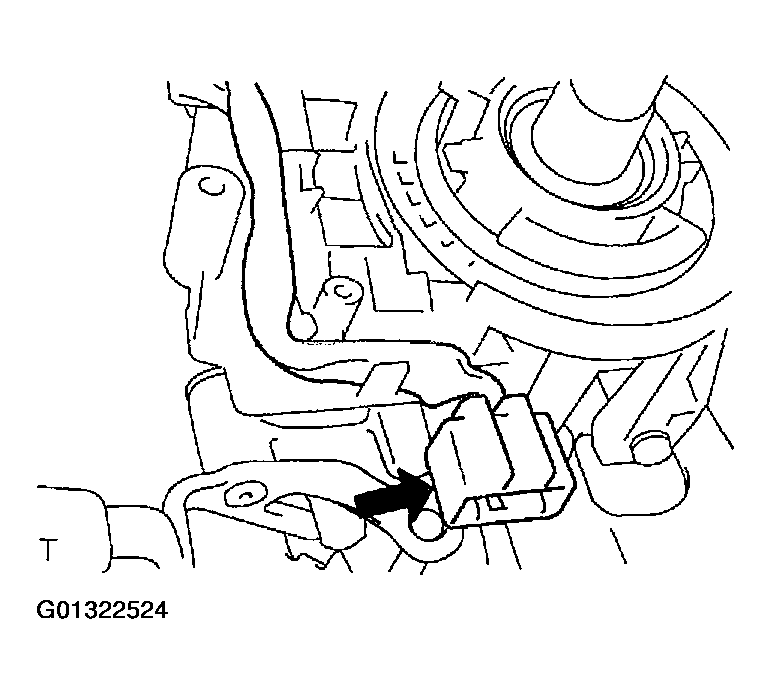

      Fig 1: Removing Steering Sensor Connector
      G01322524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 claws and remove the steering sensor.
    3. Remove the 10 steering sensor terminals from the connector.

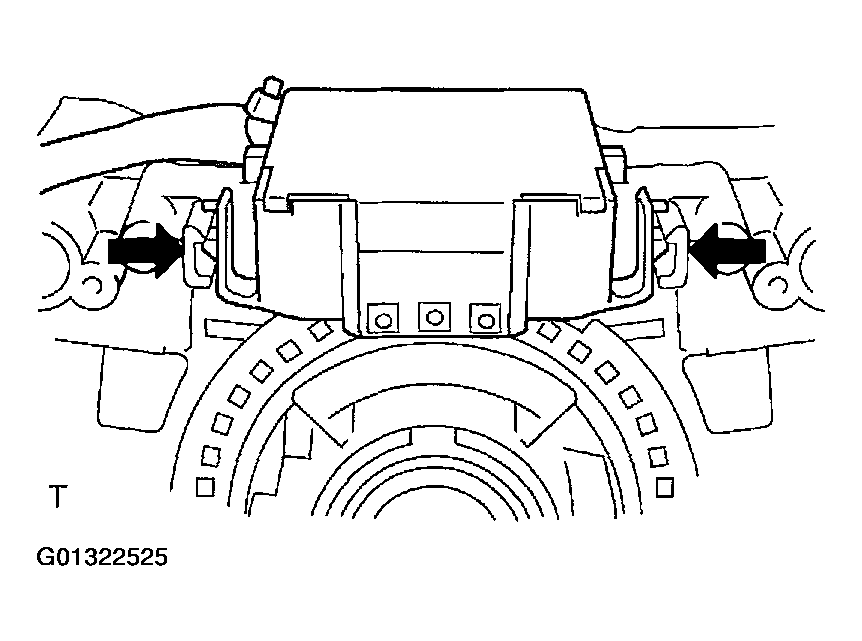

      Fig 2: Removing Claws And Removing Steering Sensor
      G01322525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL STEERING SENSOR
    1. Follow the table below to install the 10 steering sensor terminals on the connector.

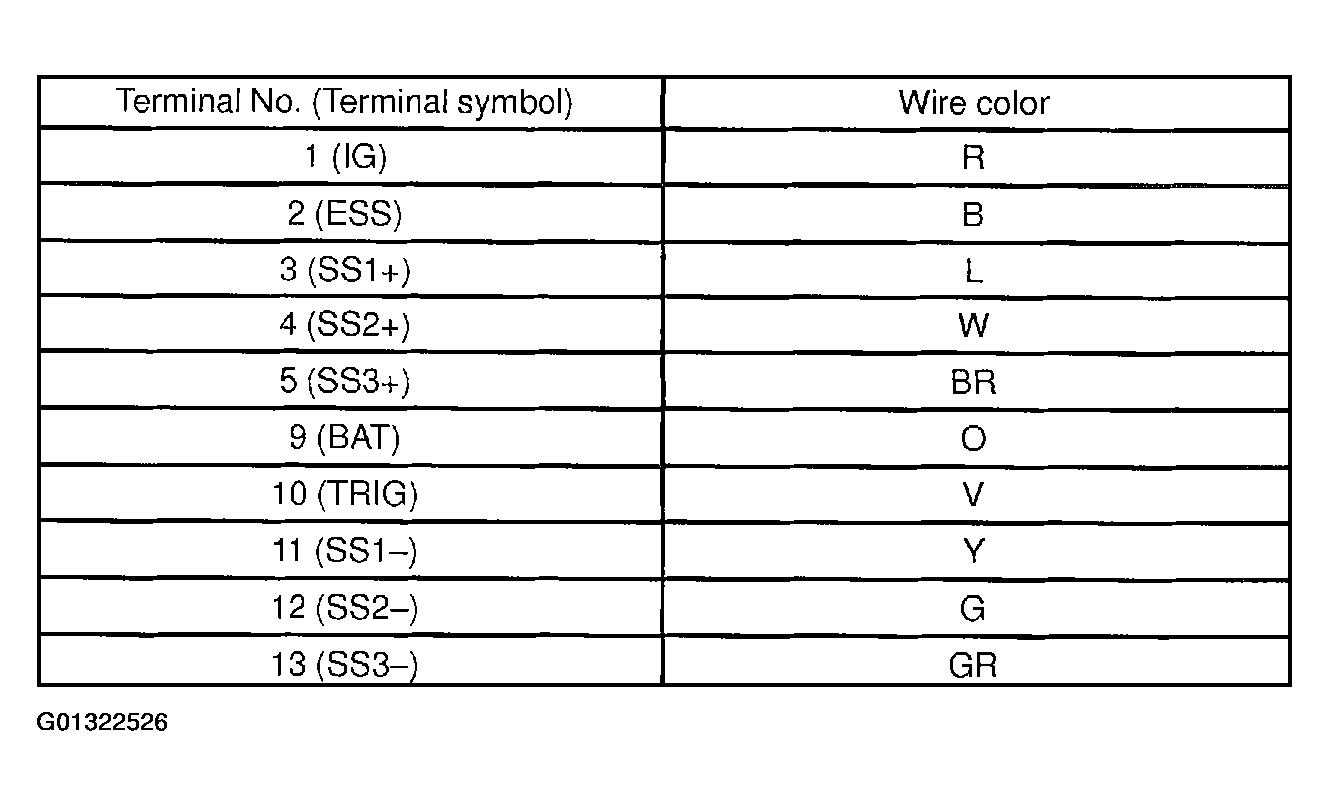

      Fig 3: Steering Sensor Terminals - Wire Color
      G01322526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
