2003 Lexus GX 470FACTORY OEM SERVICE PROCEDURE
Removal & Installation

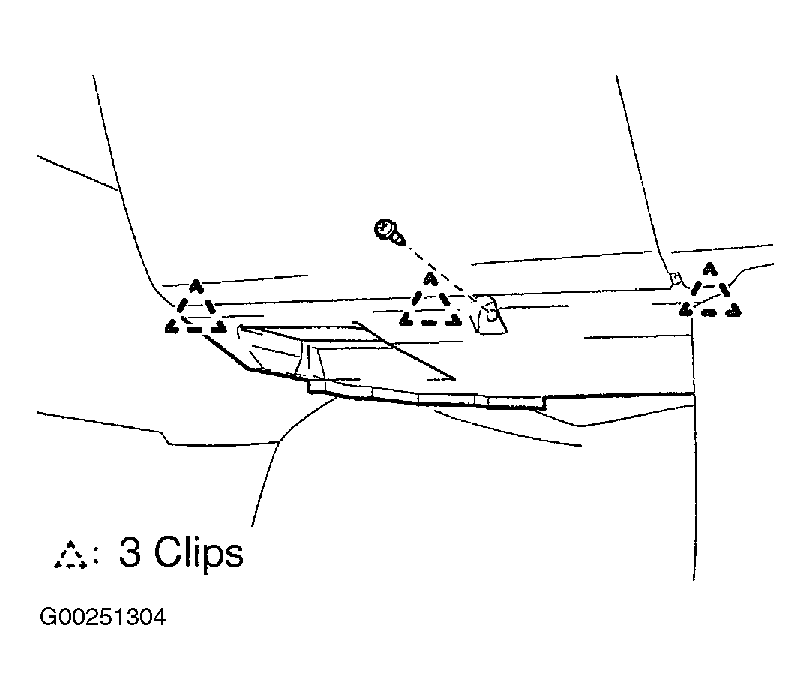

- Remove screw. Disengage 3 clips and remove instrument panel under cover No. 2. See Fig 1.
- Disengage 4 clips and remove instrument panel ornament. See Fig 2.
- Remove 5 screws, disengage 2 clips and remove glove compartment door assembly. See Fig 3.
- Disconnect 5 ECM connectors from ECM. Remove 3 nuts and ECM. See Fig 4. Remove screws and ECM brackets from ECM.
- To install, reverse removal procedure. Tighten nuts to specification. See TORQUE SPECIFICATIONS .
