2003 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

Section 452 (Power Mirror Control System): Inspection

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. USA/CANADA models: INSPECT MIRROR SWITCH CONTINUITY
    MIRROR SWITCH CONTINUITY CHECK (USA/CANADA MODELS)

    Switch position Tester connection Resistance ohms
    LEFT 8 - 9 100
    RIGHT 8 - 9 0
    Illumination 5 - 6 Continuity

    Measure resistance between terminals 7 and 9.

    SWITCH POSITION RESISTANCE (USA/CANADA MODELS)

    Switch position Resistance ohms
    UP Approx. 100
    RIGHT 250
    DOWN 470
    LEFT 800

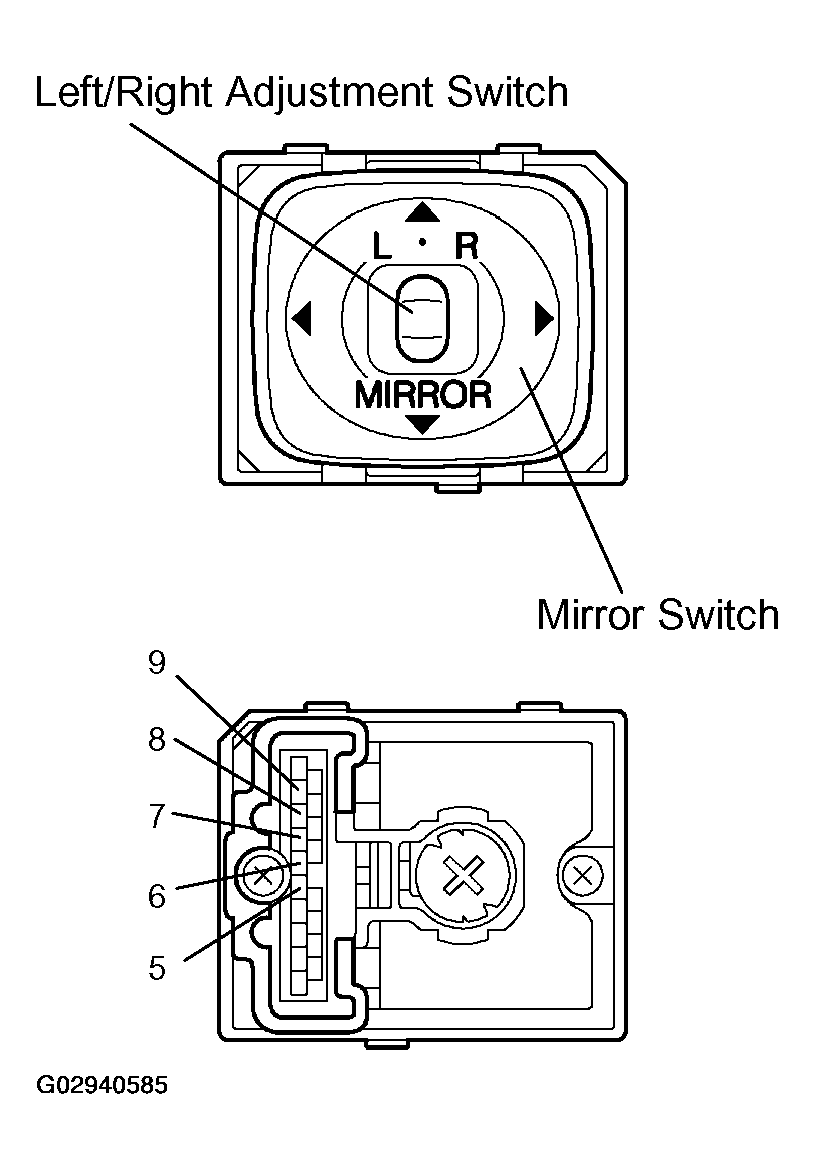

    Fig 1: Inspecting Mirror Switch (USA/CANADA Models)
    G02940585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  2. USA/CANADA models: INSPECT MIRROR SWITCH CIRCUIT

    (See  MIRROR SWITCH CIRCUIT  )

  3. TAIWAN model: INSPECT MIRROR SWITCH CONTINUITY
    MIRROR SWITCH CONTINUITY CHECK (TAIWAN MODEL)

    Switch position Tester connection Resistance ohms
    LEFT 8 - 9 100
    RIGHT 8 - 9 0
    Illumination 5 - 6 Continuity

    Measure resistance between terminals 7 and 9.

    SWITCH POSITION RESISTANCE (TAIWAN MODE)

    Switch position Resistance ohms
    UP Approx. 100
    RIGHT 250
    DOWN 470
    LEFT 800

    If continuity is not as specified, replace the switch.

  4. TAIWAN model: INSPECT RETRACT SWITCH CONTINUITY
    RETRACT SWITCH CONTINUITY (TAIWAN MODEL)

    Switch position Tester connection Specified condition
    OFF - No continuity
    ON 1 - 2 Continuity

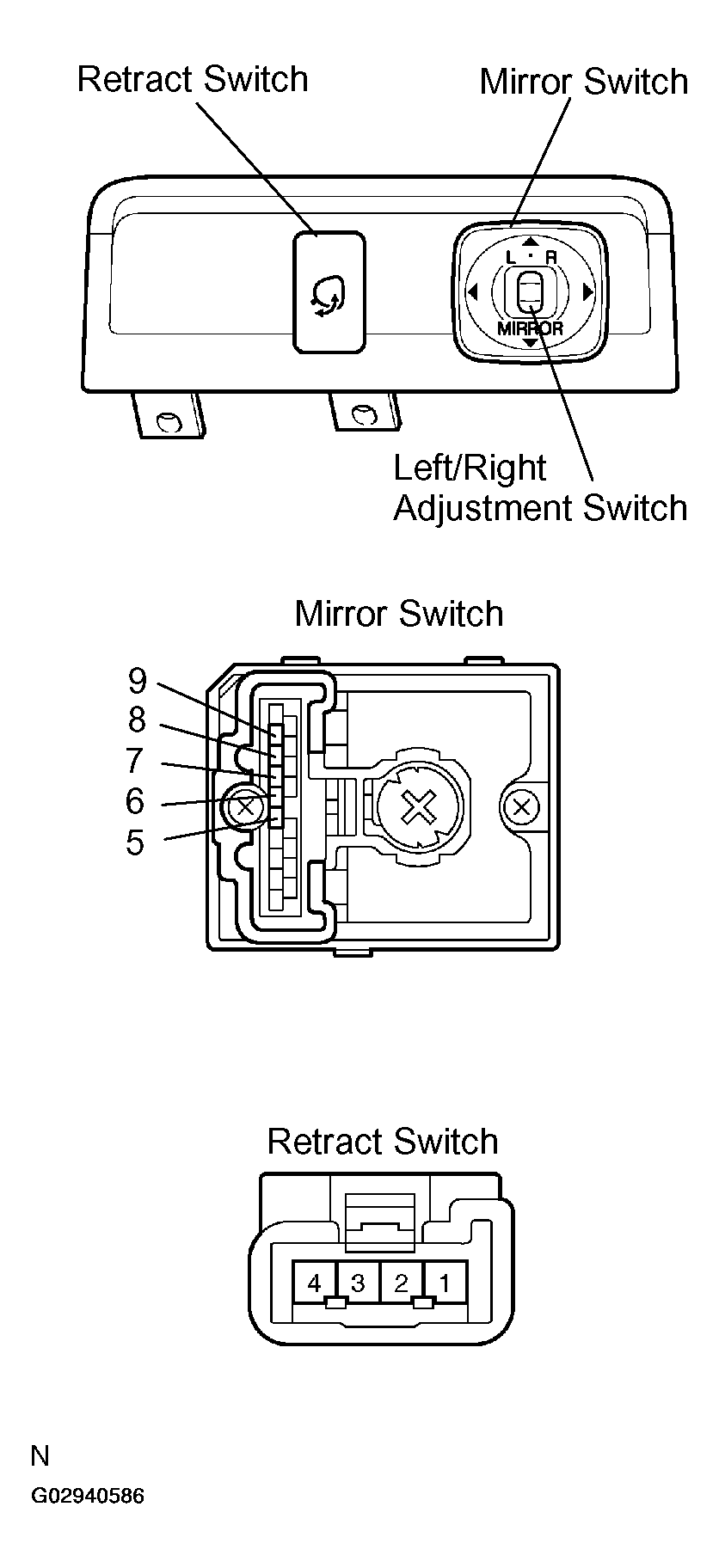

    Fig 2: Inspecting Mirror Switch Continuity (TAIWAN Model)
    G02940586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  5. TAIWAN model: INSPECT MIRROR SWITCH CIRCUIT

    (See  MIRROR SWITCH CIRCUIT  )

  6. w/o Driving position memory: INSPECT MIRROR MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 5, and check that the mirror turns to the left side.

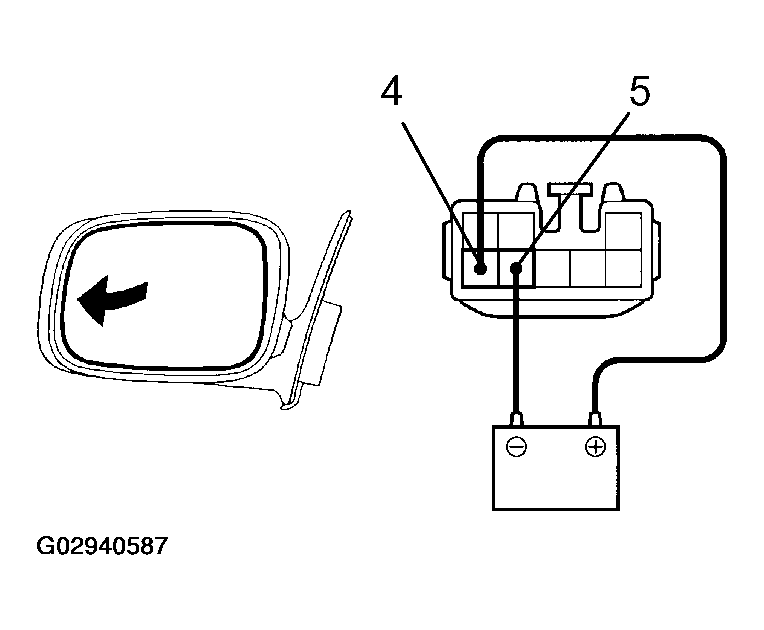

      Fig 3: Checking Mirror Turns To Left Side (W/O Driving Position Memory)
      G02940587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity, and check that the mirror turns to the right side.

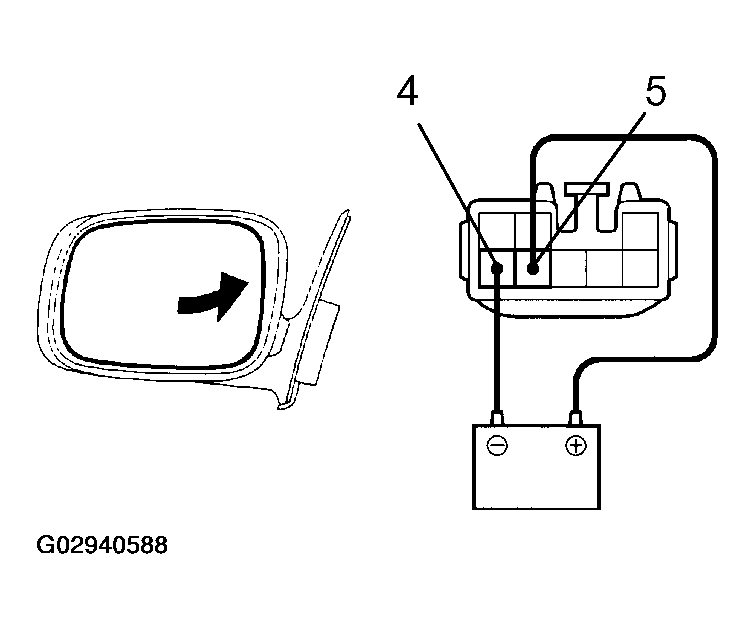

      Fig 4: Checking Mirror Turns To Right Side (W/O Driving Position Memory)
      G02940588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5, and check that the mirror turns upward.

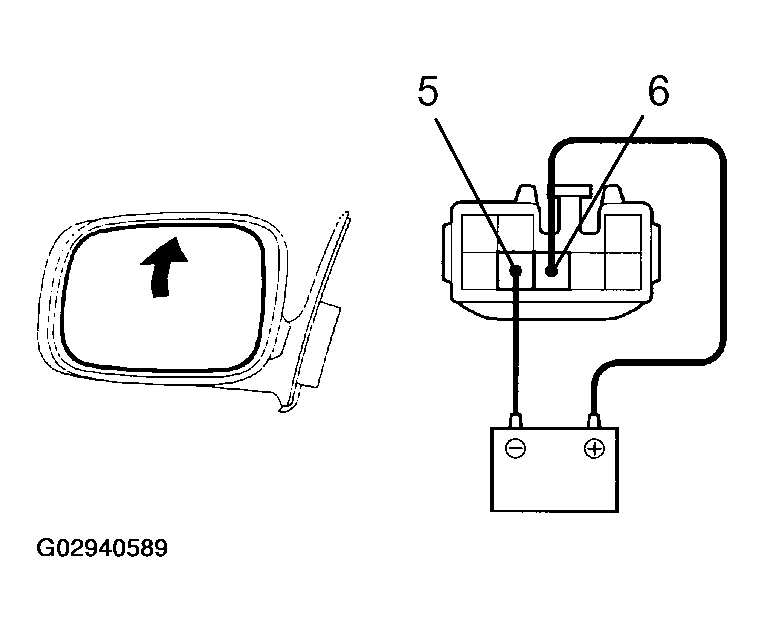

      Fig 5: Checking Mirror Turns Upward (W/O Driving Position Memory)
      G02940589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reverse the polarity, and check that the mirror turns downward.

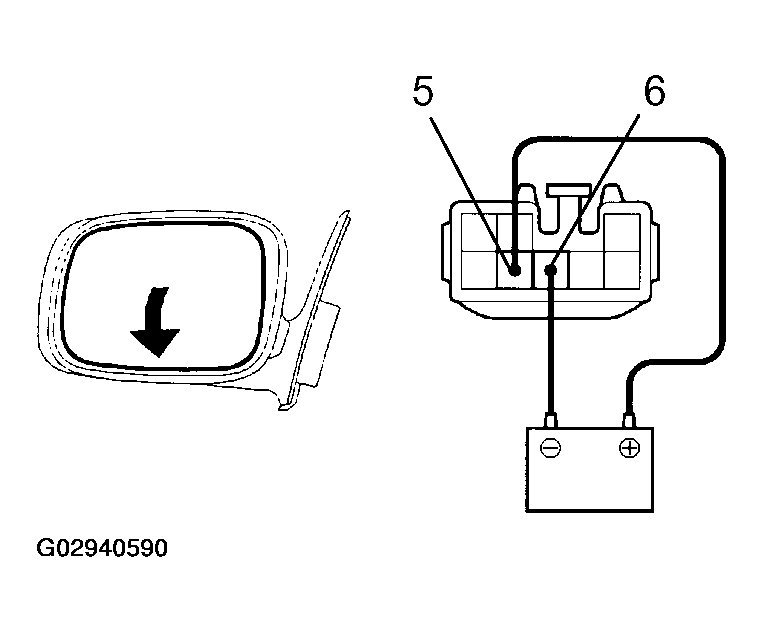

      Fig 6: Checking Mirror Turns Downward (W/O Driving Position Memory)
      G02940590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the mirror assembly.

  7. w/o Driving position memory: INSPECT MIRROR MOTOR CIRCUIT

    Left side: (See  MIRROR MOTOR CIRCUIT  )

    Right side: (See  MIRROR MOTOR CIRCUIT  )

  8. w/ Driving position memory: INSPECT MIRROR MOTOR OPERATION
    1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the mirror turns to the left side.

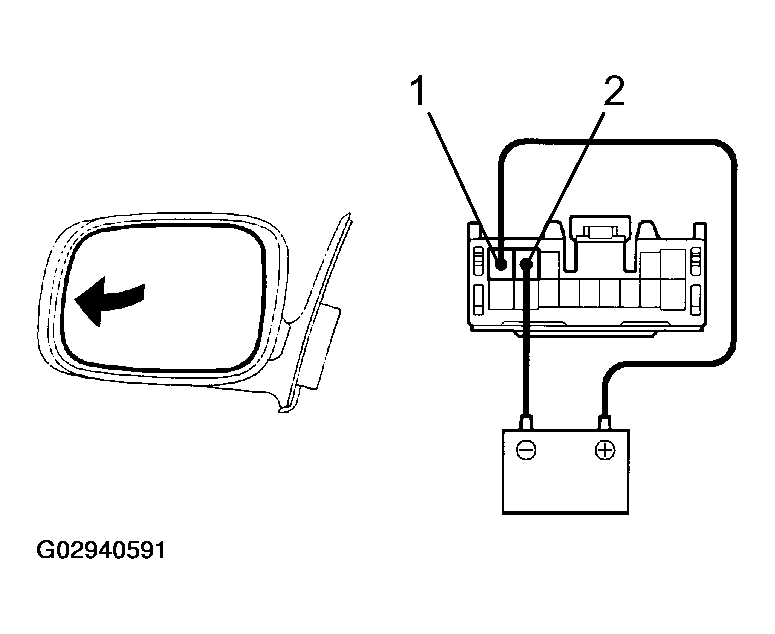

      Fig 7: Checking Mirror Turns To Left Side (W/Driving Position Memory)
      G02940591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reverse the polarity, and check that the mirror turns to the right side.

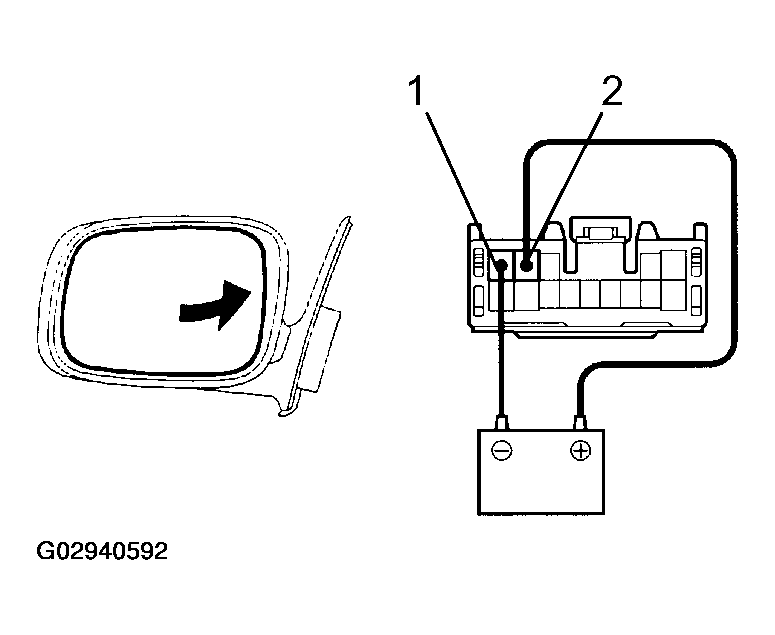

      Fig 8: Checking Mirror Turns To Right Side (W/Driving Position Memory)
      G02940592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 2, and check that the mirror turns upward.

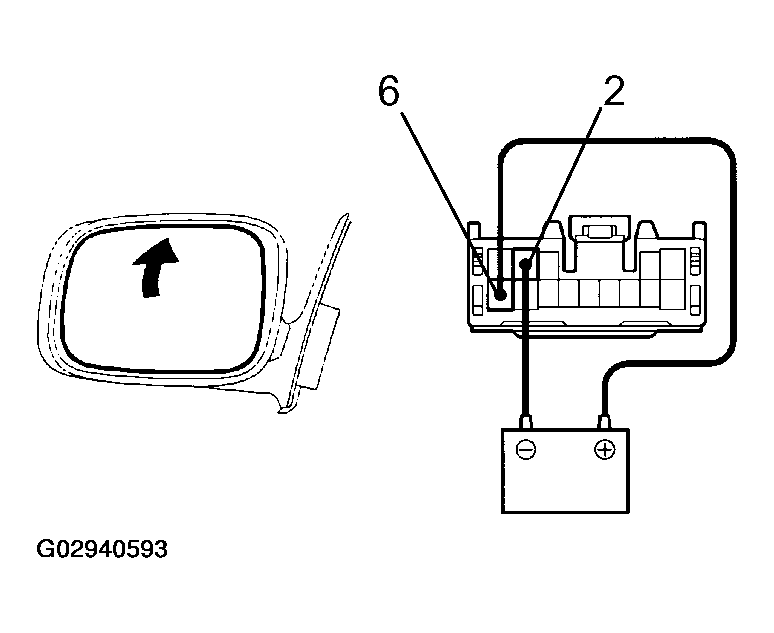

      Fig 9: Checking Mirror Turns Upward (W/Driving Position Memory)
      G02940593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reverse the polarity, and check that the mirror turns downward.

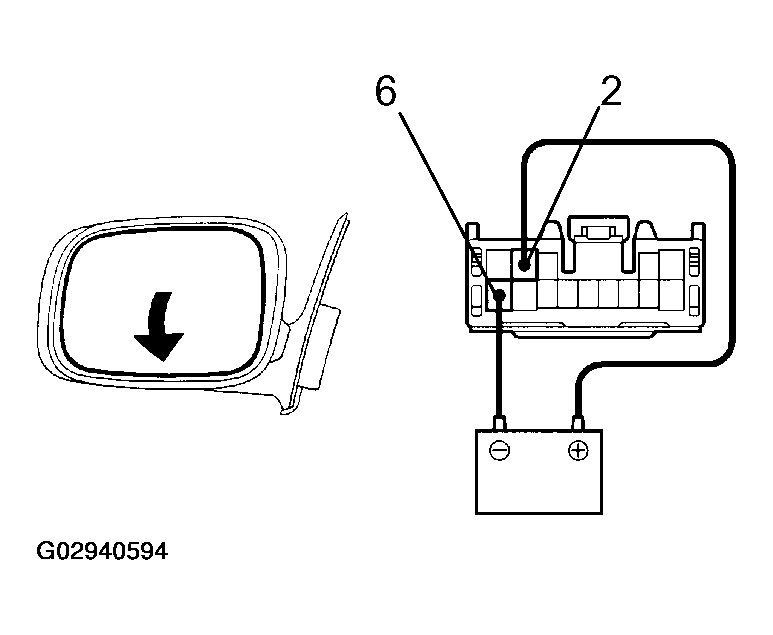

      Fig 10: Checking Mirror Turns Downward (W/Driving Position Memory)
      G02940594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the mirror assembly.

  9. w/ Driving position memory: INSPECT MIRROR MOTOR CIRCUIT

    Left side: (See  MIRROR MOTOR CIRCUIT  )

    Right side: (See  MIRROR MOTOR CIRCUIT  )

  10. w/ Driving position memory only: INSPECT MIRROR POSITION SENSORS OPERATION

    HINT:

    Strip off the vinyl tape of the connector and remove terminals 1, 2, 6, 8, 9, 10 and 11 from the connector housing.

    1. Connect a series of three 1.5 V dry cell batteries.
    2. Connect the positive (+) lead from the dry cell batteries to terminal 8 and the negative (-) lead to terminal 11.
    3. Connect the positive (+) lead from the voltmeter to terminal 9 and the negative (-) lead to terminal 11.
    4. Apply battery positive voltage to terminals 2 and 6, then check that the voltage gradually changes according to MIRROR POSITION SENSORS OPERATION (W/DRIVING POSITION MEMORY) (1 OF 2)  while the mirror moves between the uppermost position and lowermost position.
      MIRROR POSITION SENSORS OPERATION (W/DRIVING POSITION MEMORY) (1 OF 2)

      Mirror position Lowermost Mirror position Uppermost
      Voltage 2.8 - 5.0 Changes gradually 0 - 1.8

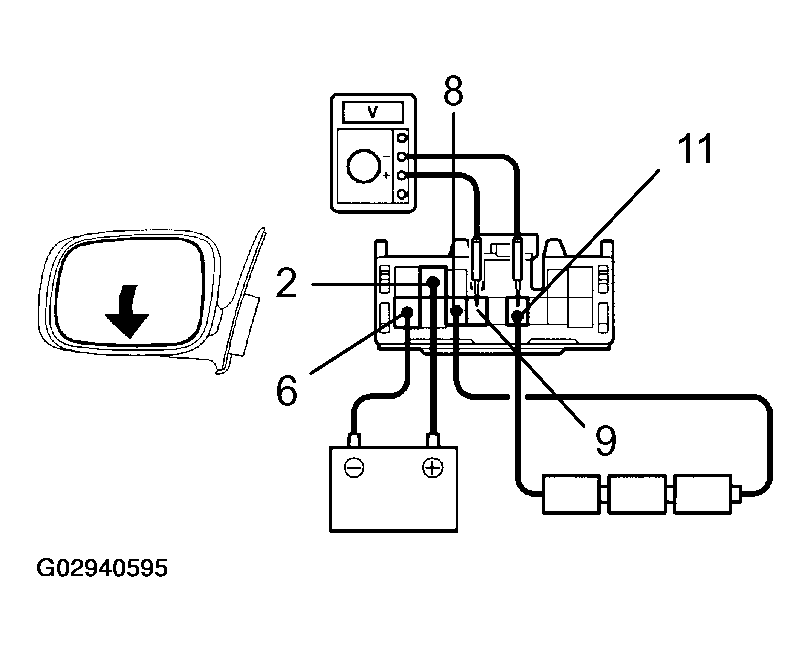

      Fig 11: Inspecting Driving Position Memory Mirror Motor Operation (Mirror Turning Most Down-Ward Position)
      G02940595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
