2003 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

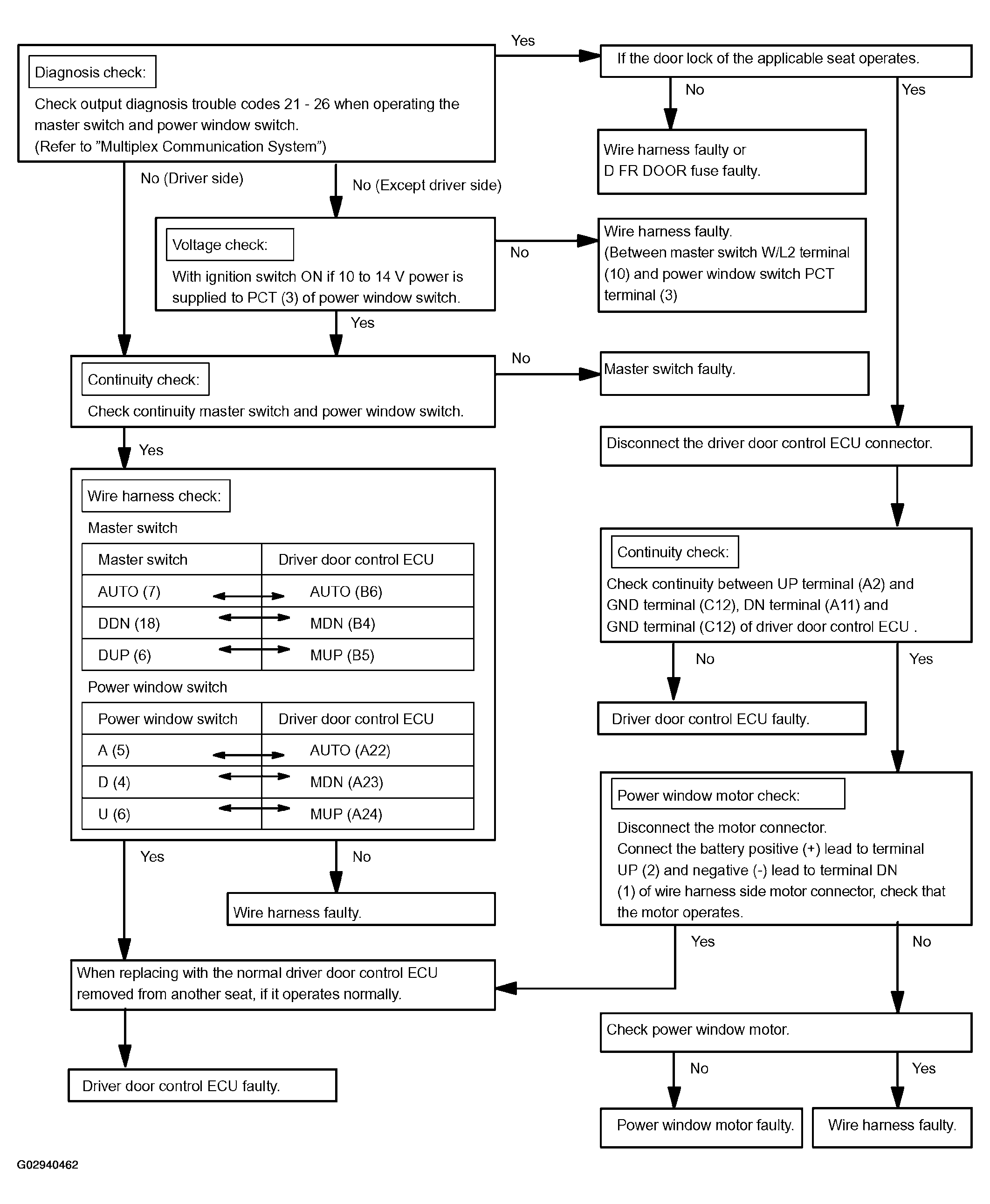

Flow Chart < A >
WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

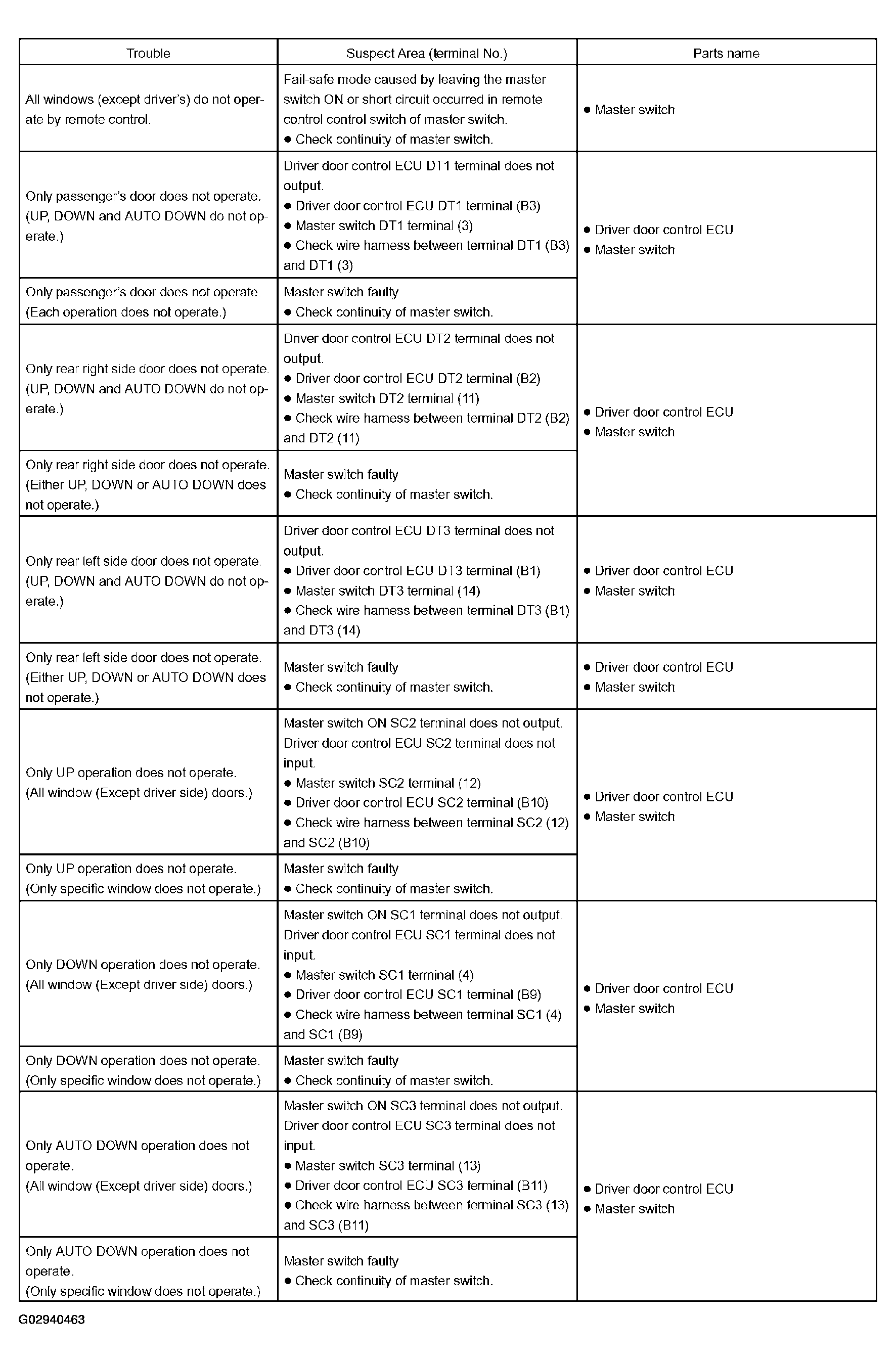

- Only specific window does not operate (Neither manual nor automatic operation is available).
- REMOTE CONTROL OF ALL WINDOWS (EXCEPT DRIVER'S) DOES NOT FUNCTION WITH MASTER SWITCH. (WINDOWS OPERATE NORMALLY WITH EACH OF MASTER SWITCHES.

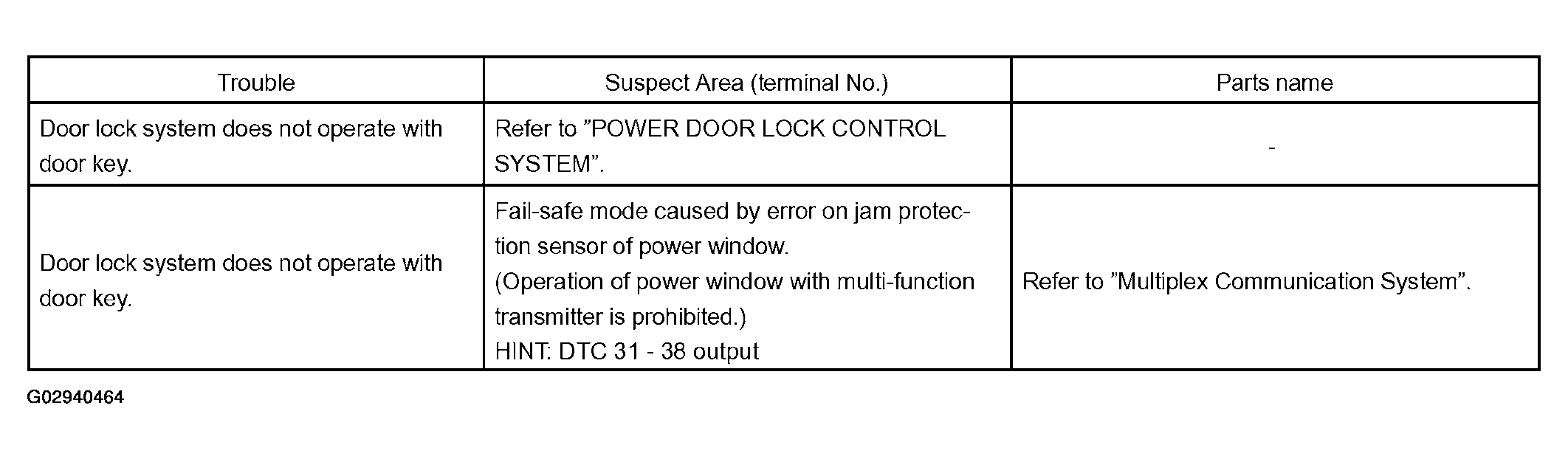

- THE KEY RELATED POWER WINDOW OPERATION DOES NOT OPERATE WITH DRIVER Side Door KEY CYLINDER. (MASTER SWITCH OPERATION IS NORMAL.)

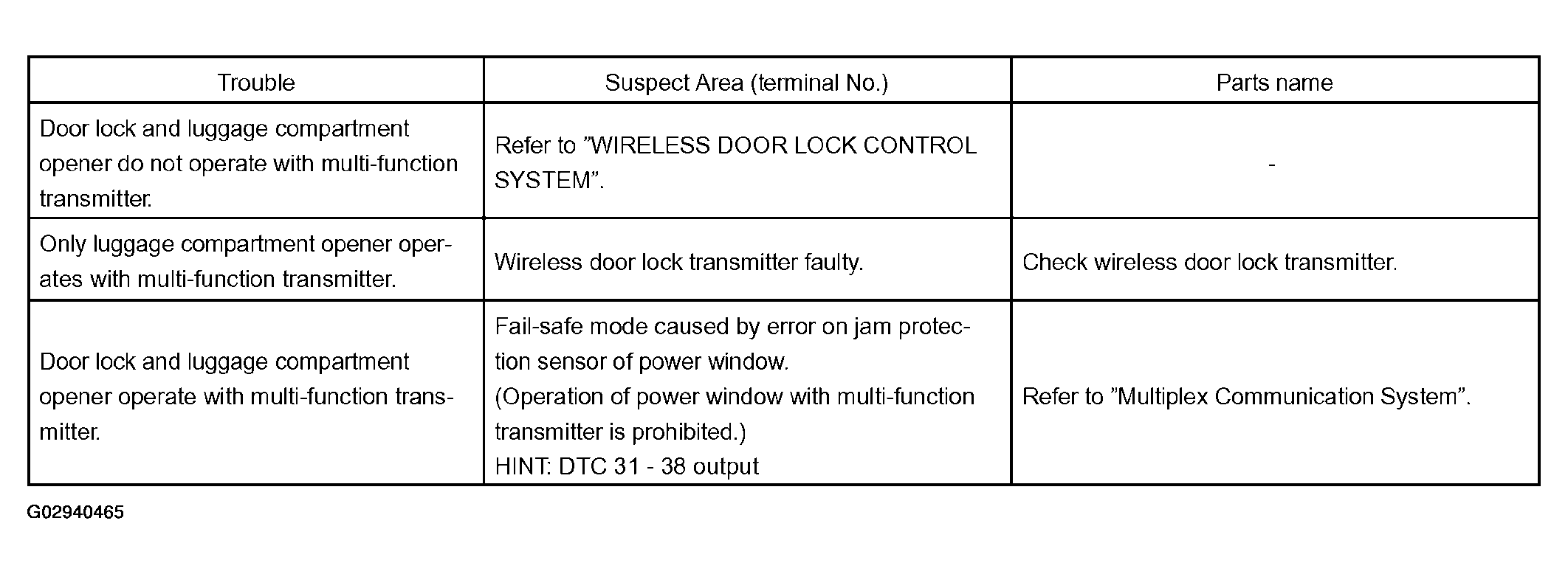

- POWER WINDOW DOES NOT OPERATE WITH MULTI-FUNCTION TRANSMITTER. (WINDOWS OPERATE NORMALLY WITH MASTER SWITCH.)

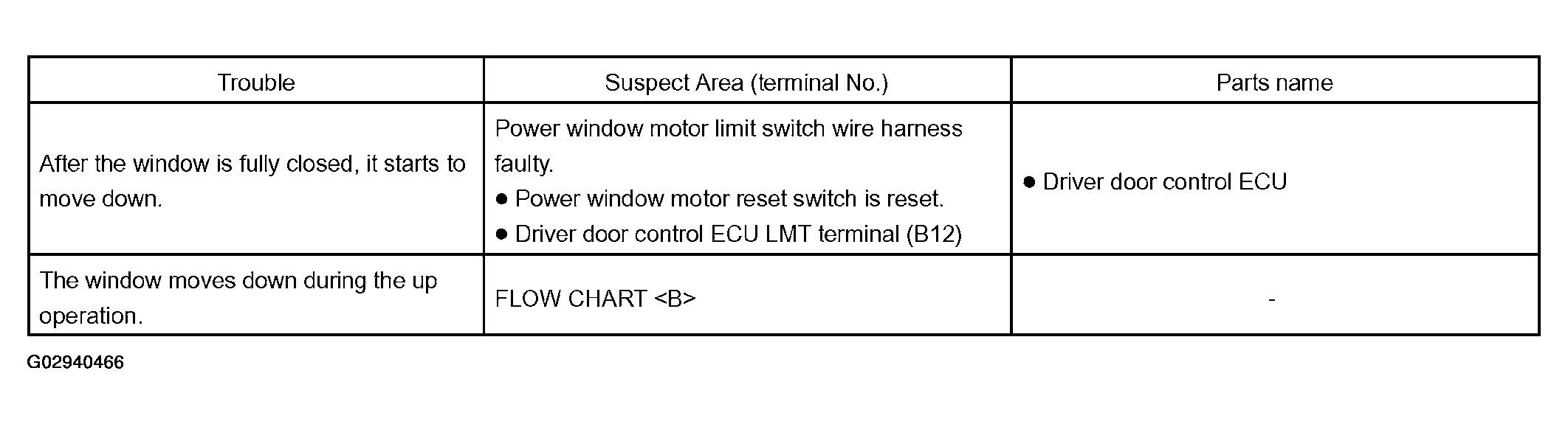

- WINDOW MOVES DOWN WITHOUT BEING ORDERED DURING THE UP OPERATION
