2003 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

Section 439 (Power Source): Inspection

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT ENGINE ROOM NO. 1 JUNCTION BLOCK CIRCUIT

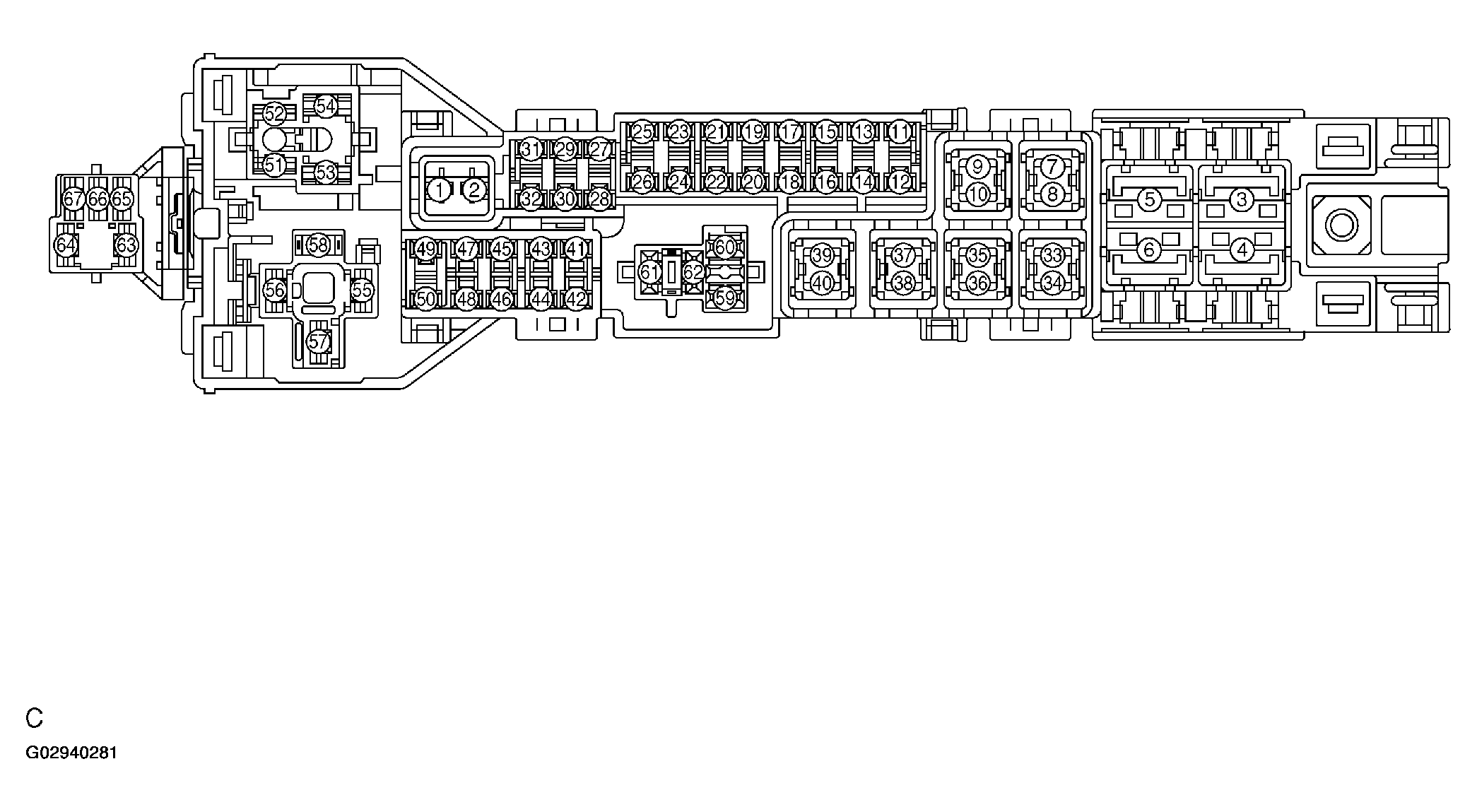

    Fig 1: Identifying Engine Room No. 1 Junction Block Circuits (Terminal Connectors)
    G02940281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the fuse from the junction block and inspect the connector on junction block side.
      JUNCTION BLOCK SIDE

      Fuse Tester connection Condition Specified condition
      MAIN 2 - Ground Constant Battery positive voltage
      ABS NO. 1 4 - Ground Constant Battery positive voltage
      ALT 6 - Ground Constant Battery positive voltage
      ABS 8 - Ground Constant Battery positive voltage
      H-LP CLN 10 - Ground Constant Battery positive voltage
      RAD NO. 1 12 - Ground Constant Battery positive voltage
      ALT-S 14 - Ground Constant Battery positive voltage
      EFI 16 - Ground Constant Battery positive voltage
      TURN HAZ 18 - Ground Constant Battery positive voltage
      TEL 20 - Ground Constant Battery positive voltage
      AM2 22 - Ground Constant Battery positive voltage
      ETCS 24 - Ground Constant Battery positive voltage
      HORN 26 - Ground Constant Battery positive voltage
      D FR DOOR 28 - Ground Constant Battery positive voltage
      P FR DOOR 30 - Ground Constant Battery positive voltage
      ECU-B1 32 - Ground Constant Battery positive voltage
      HTR 33 - Ground Constant Battery positive voltage
      FAN MAIN 35 - Ground Constant Battery positive voltage
      CDS FAN 37 - Ground Ignition switch ON Battery positive voltage
      RAD FAN 39 - Ground Ignition switch ON Battery positive voltage
      H-LP R LWR 41 - Ground Light control switch HEAD Battery positive voltage
      H-LP L LWR 43 - Ground Light control switch HEAD Battery positive voltage
      D.R.L No. 1 45 - Ground Light control switch HEAD Battery positive voltage
      D.R.L No. 2 49 - Ground Light control switch HEAD Battery positive voltage

      If the circuit is not as specified, inspect the circuits connected to other parts.

    2. Remove the relay from the junction block and inspect the connector on junction block side.
      RELAY AND TESTER CONNECTION

      Relay Tester connection Condition Specified condition
      H-LP 51 - Ground Constant Battery positive voltage
      H-LP 53 - Ground Constant Battery positive voltage
      ST 55 - Ground Constant Continuity
      ST 58 - Ground Constant Battery positive voltage
      EFI MAIN 60 - Ground Constant Continuity
      EFI MAIN 62 - Ground Constant Battery positive voltage
      ENG MAIN 63 - Ground Constant Battery positive voltage
      ENG MAIN 66 - Ground Constant Continuity

      If the circuit is not as specified, inspect the circuits connected to other parts.

  2. INSPECT ENGINE ROOM NO. 3 RELAY BLOCK CIRCUIT

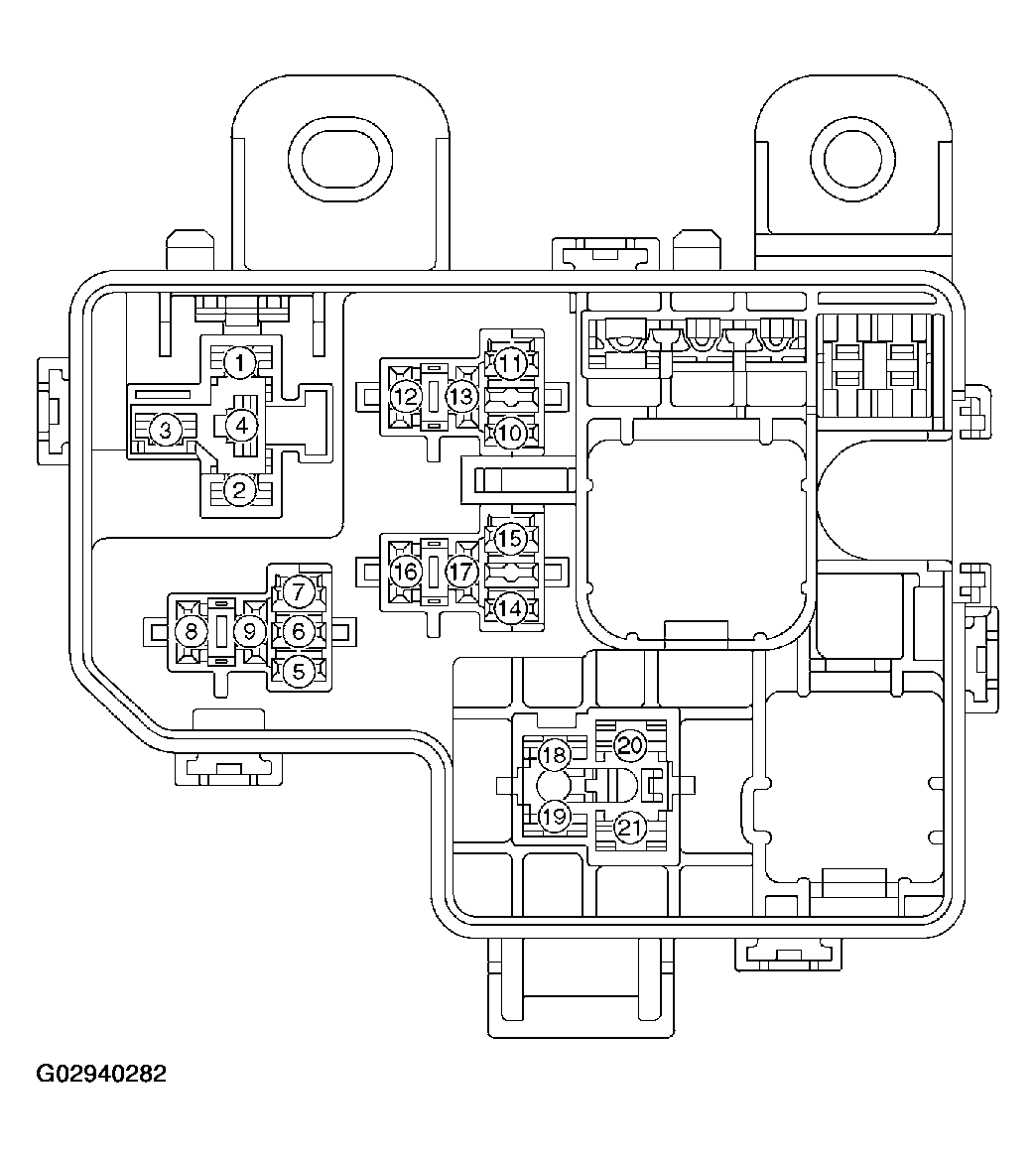

    Fig 2: Identifying Engine Room No. 3 Relay Block (Terminal Connectors)
    G02940282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove the relay from the relay block and inspect the connector on relay block side.

    FUSE AND TESTER

    Fuse Tester connection Condition Specified condition
    FAN NO. 1 3 - Ground Ignition switch ON Battery positive voltage
    FAN NO. 2 8 - Ground Ignition switch ON Battery positive voltage
    A/C COMP 13 - Ground Ignition switch ON Battery positive voltage
    FAN NO. 3 17 - Ground Ignition switch ON Battery positive voltage
    DIMMER 20 - Ground Constant Battery positive voltage

    If the circuit is not as specified, inspect the circuits connected to other parts.

  3. INSPECT ENGINE ROOM NO. 2 RELAY BLOCK CIRCUIT

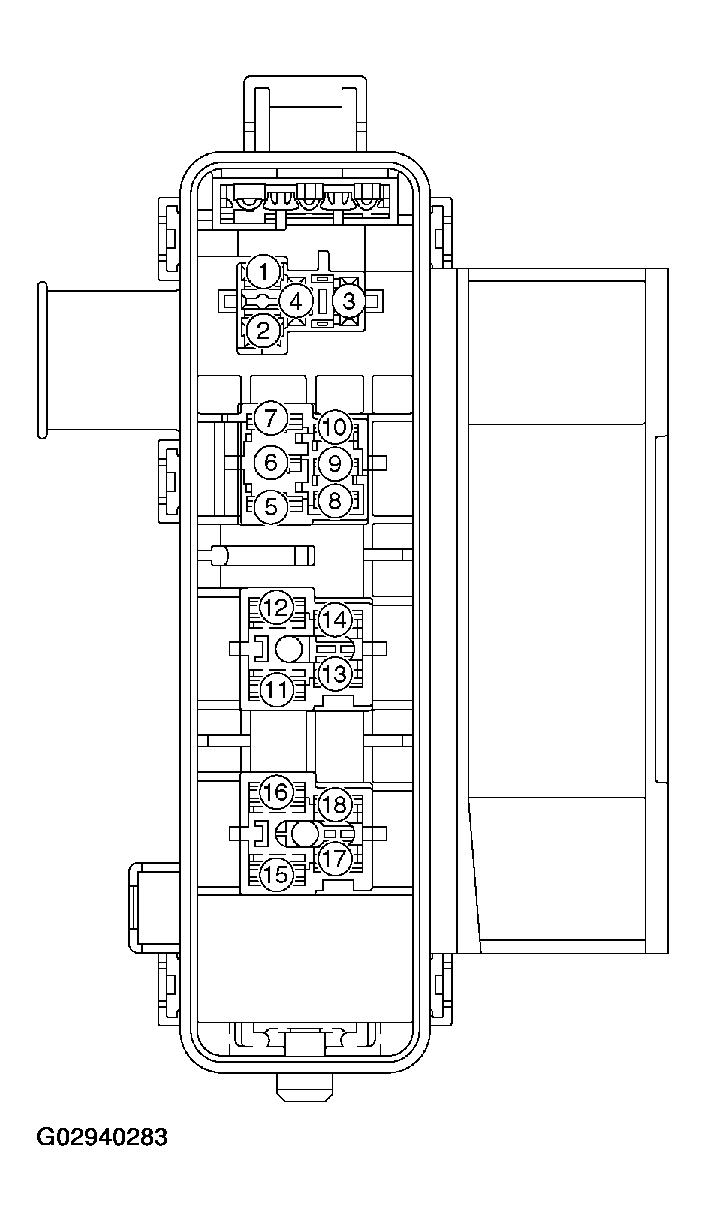

    Fig 3: Identifying Engine Room No. 2 Relay Block (Terminal Connectors)
    G02940283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove the relay from the relay block and inspect the connector on relay block side.

    RELAY

    Relay Tester connection Condition Specified condition
    HORN 1 - Ground Constant Battery positive voltage
    HORN 2 - Ground Horn switch ON Continuity
    HORN 4 - Ground Constant Battery positive voltage
    ABS SOL 5 - Ground Constant Battery positive voltage
    ABS SOL 6 - Ground Constant Continuity
    TRC MTR 11 - Ground Constant Battery positive voltage
    ABS MTR 15 - Ground Constant Battery positive voltage

    If the circuit is not as specified, inspect the circuits connected to other parts.

  4. INSPECT DRIVER SIDE JUNCTION BLOCK CIRCUIT

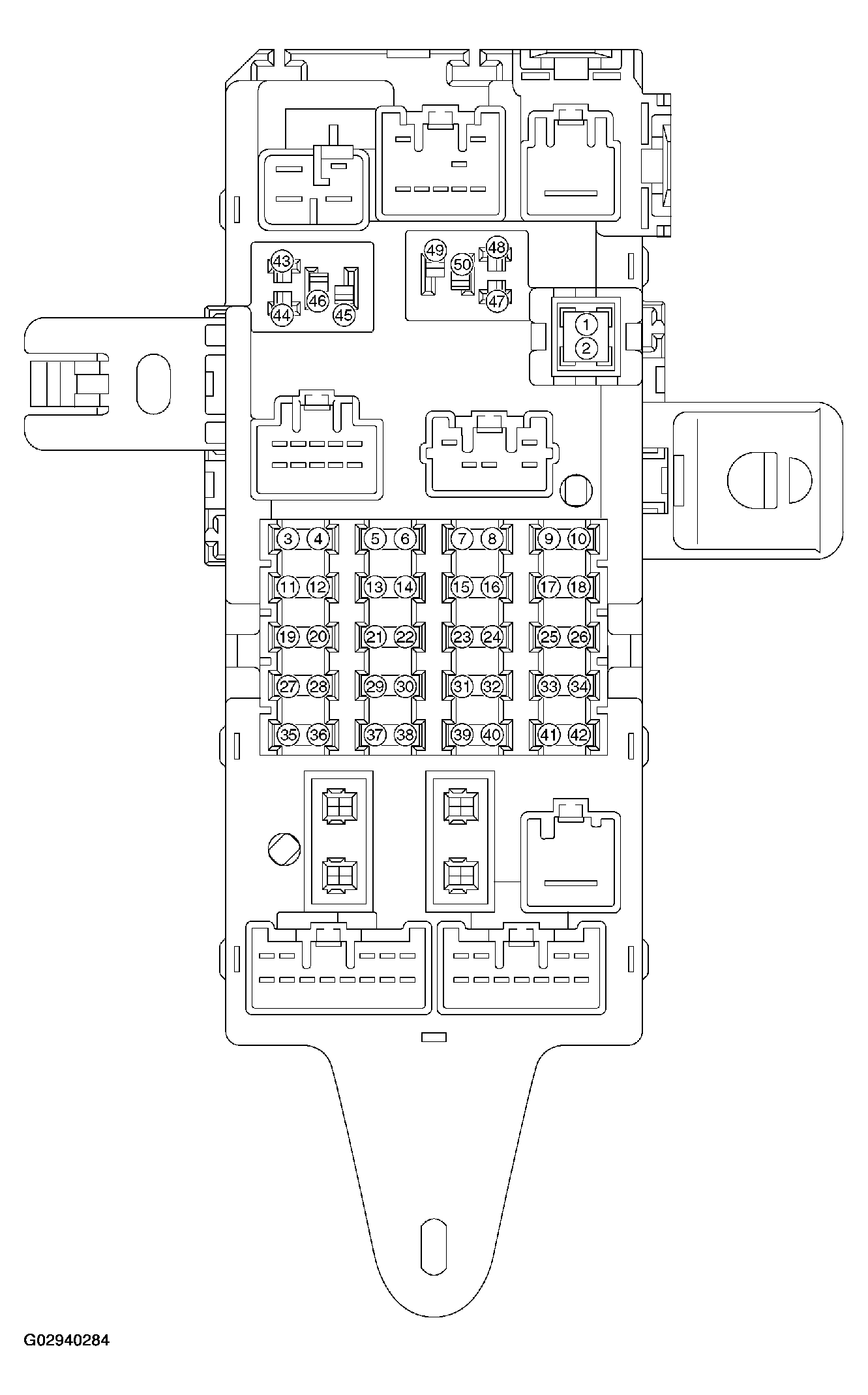

    Fig 4: Identifying Driver Side Junction Block Circuits (Terminal Connectors)
    G02940284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the fuse from the junction block and inspect the connector on junction block side.
      FUSES AND TESTER CONNECTION

      Fuse Tester connection Condition Specified condition
      AM1 1 - Ground Constant Battery positive voltage
      WASHER 3 - Ground Ignition switch ON Battery positive voltage
      FOG 5 - Ground Constant Battery positive voltage
      TAIL 7 - Ground Light control switch TAIL or HEAD Battery positive voltage
      GAUGE 11 - Ground Ignition switch ON Battery positive voltage
      FUEL OPN 13 - Ground Constant Battery positive voltage
      PANEL 17 - Ground Light control switch TAIL or HEAD Battery positive voltage
      HEATER 19 - Ground Ignition switch ON Battery positive voltage
      SRS-B 21 - Ground Constant Battery positive voltage
      DP/SEAT 23 - Ground Constant Battery positive voltage
      RADIO NO. 2 25 - Ground Ignition switch ACC or ON Battery positive voltage
      WIPER 27 - Ground Ignition switch ON Battery positive voltage
      OBD 29 - Ground Constant Battery positive voltage
      STOP 31 - Ground Constant Battery positive voltage
      CIG 33 - Ground Ignition switch ACC or ON Battery positive voltage
      ECU-IG 35 - Ground Ignition switch ON Battery positive voltage
      ST 37 - Ground Ignition switch ON Battery positive voltage
      IGN 39 - Ground Ignition switch ON Battery positive voltage
      D RR DOOR 41 - Ground Constant Battery positive voltage

      If the circuit is not as specified, inspect the circuits connected to other parts.

    2. Remove the relay from the junction block and inspect the connector on junction block side.
      RELAY AND TESTER CONNECTION

      Relay Tester connection Condition Specified condition
      Fog light 43 - Ground Constant Battery positive voltage
      Fog light 44 - Ground Constant Continuity
      Fog light 46 - Ground Light control switch HEAD Battery positive voltage
      Taillight 47 - Ground Constant Battery positive voltage
      Taillight 48 - Ground Constant Continuity
      Taillight 50 - Ground Constant Continuity

      If the circuit is not as specified, inspect the circuits connected to other parts.

  5. INSPECT PASSENGER SIDE JUNCTION BLOCK CIRCUIT

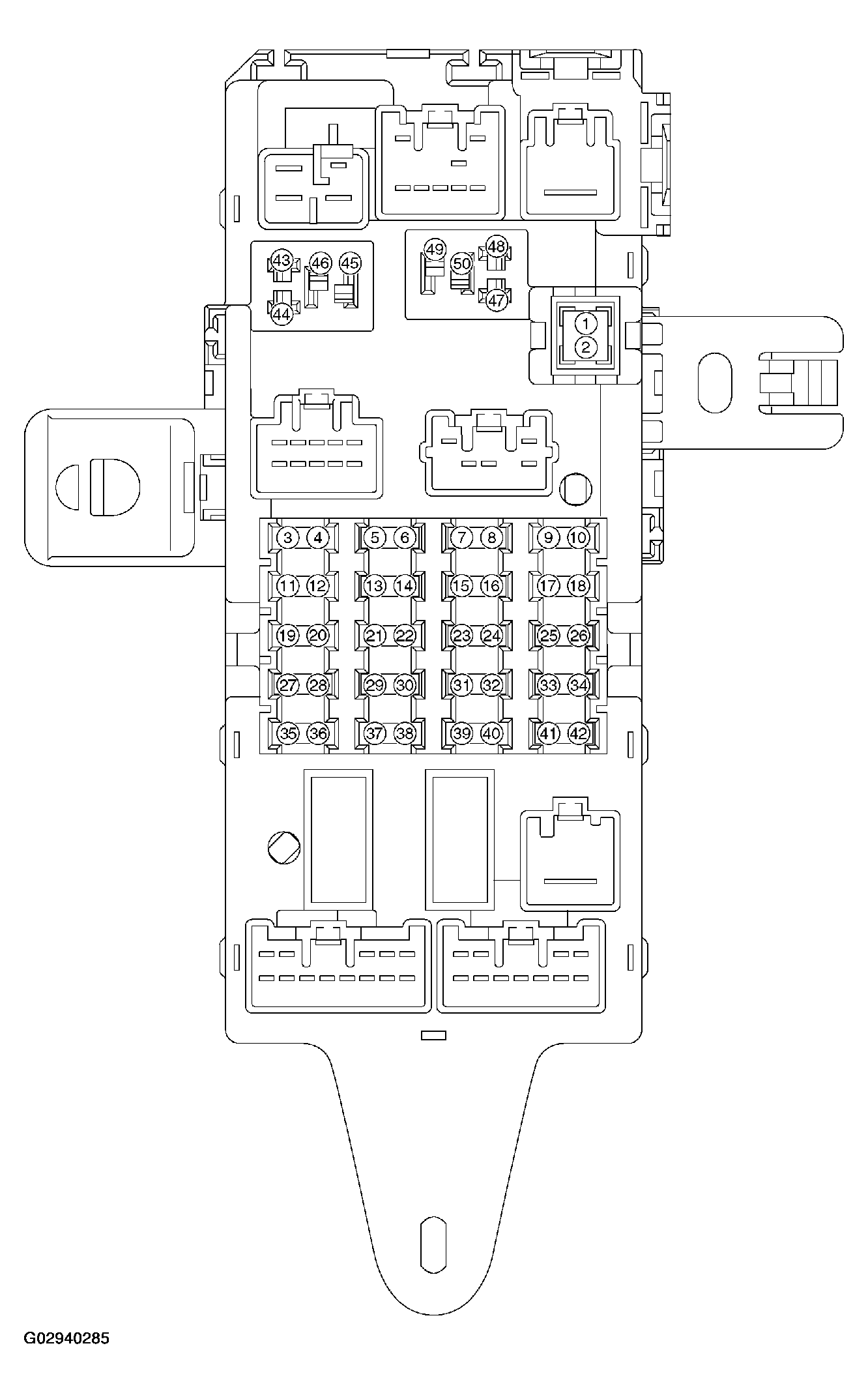

    Fig 5: Identifying Passenger Side Junction Block Circuits (Terminal Connectors)
    G02940285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the fuse from the junction block and inspect the connector on junction block side.
      CONNECTOR ON JUNCTION BLOCK SIDE

      Fuse Tester connection Condition Specified condition
      DEF 1 - Ground Constant Battery positive voltage
      MIR HTR 7 - Ground Ignition switch ON Battery positive voltage
      S/ROOF 13 - Ground Constant Battery positive voltage
      ECU-B3 15 - Ground Constant Battery positive voltage
      P P/SEAT 23 - Ground Constant Battery positive voltage
      DOME 25 - Ground Constant Battery positive voltage
      S-HTR 27 - Ground Ignition switch ON Battery positive voltage
      TV 31 - Ground Constant Battery positive voltage
      ECU-B2 33 - Ground Constant Battery positive voltage
      P FR DOOR 41 - Ground Constant Battery positive voltage

      If the circuit is not as specified, inspect the circuits connected to other parts.

    2. Remove the relay from the junction block and inspect the connector on junction block side.
      RELAY & TESTER CONNECTION

      Relay Tester connection Condition Specified condition
      Ignition Main 43 - Ground Ignition switch ON Battery positive voltage
      Mirror Heater 47 - Ground Ignition switch ON Battery positive voltage
      Mirror Heater 50 - Ground Constant Battery positive voltage

      If the circuit is not as specified, inspect the circuits connected to other parts.

  6. INSPECT PASSENGER COWL SIDE RELAY BLOCK CIRCUIT

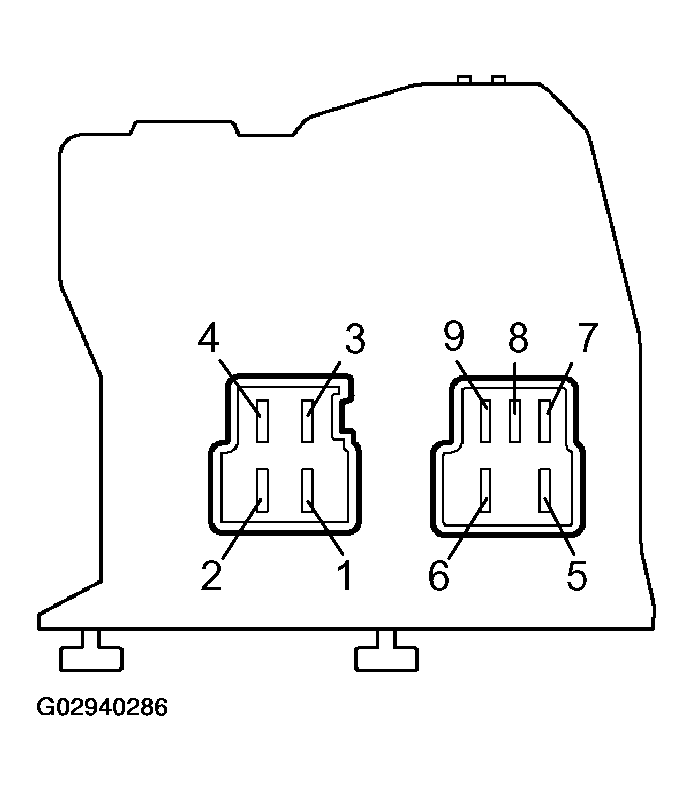

    Fig 6: Identifying Passenger Cowl Side Relay Block (Terminal Connectors)
    G02940286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove the relay from the relay block and inspect the connector on relay block side.

    RELAY & TESTER CONNECTION

    Relay Tester connection Condition Specified condition
    DEF 1 - Ground Constant Battery positive voltage
    HEATER 5 - Ground Constant Battery positive voltage

    If the circuit is not as specified, inspect the circuits connected to other parts.
