Ignition Coil: Replacement
- REMOVE V-BANK COVER
- REMOVE INTAKE AIR CONNECTOR PIPE
- REMOVE IGNITION COILS
- Disconnect the 8 ignition coil connectors.

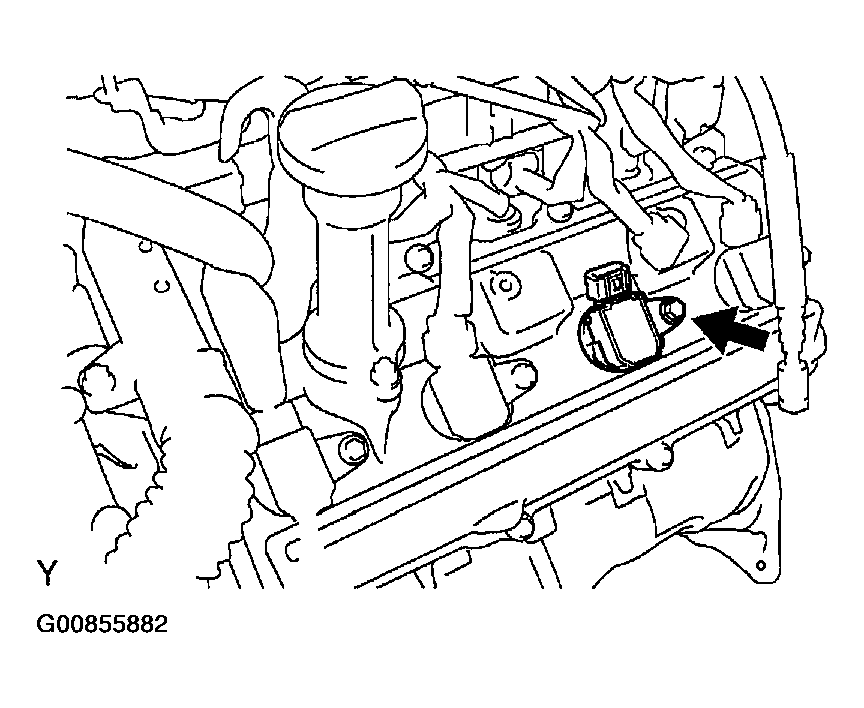

- Remove the bolt, and pull out the ignition coil. Remove the 8 ignition coils.
- REINSTALL NEW IGNITION COILS
- Connect a new ignition coil to the spark plug, and attach the ignition coil to the cylinder head cover, and install the bolt. Install the 8 ignition coils.
Torque: 7.5 N-m (80 kgf-cm, 66 in.-lbf)
- Connect the 8 ignition coil connectors.
- Connect a new ignition coil to the spark plug, and attach the ignition coil to the cylinder head cover, and install the bolt. Install the 8 ignition coils.
- REINSTALL INTAKE AIR CONNECTOR PIPE
- REINSTALL V-BANK COVER
