Camshaft Position Sensor: Replacement
- REMOVE V-BANK COVER
- DRAIN ENGINE COOLANT
- DISCONNECT UPPER RADIATOR HOSE FROM FRONT WATER BYPASS JOINT
- REMOVE LH NO. 3 TIMING BELT COVER (See REMOVAL , TIMING BELT )

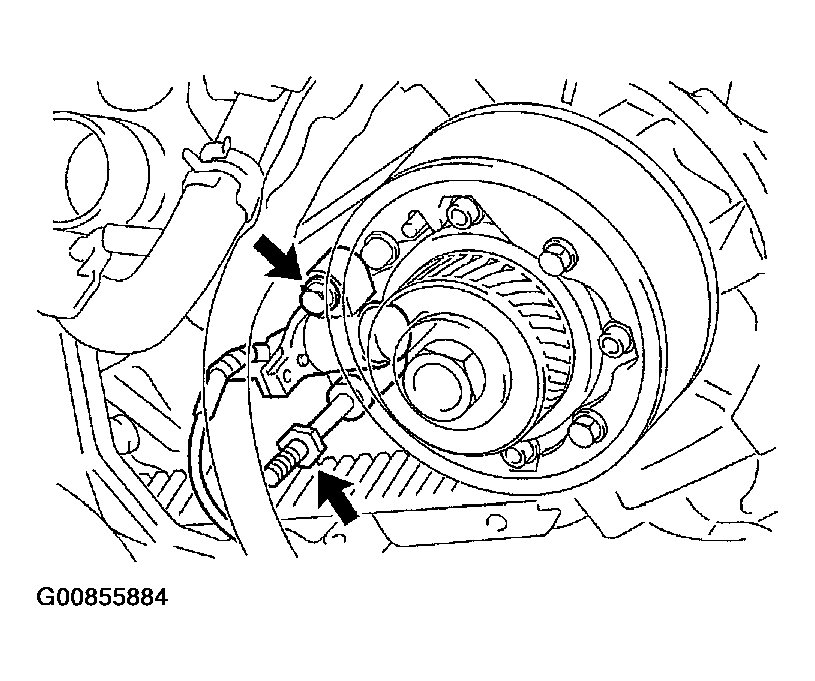

- REMOVE CAMSHAFT POSITION SENSOR
Remove the bolt, stud bolt and camshaft position sensor.
- REINSTALL NEW CAMSHAFT POSITION SENSOR
Install a new camshaft position sensor with the bolt and stud bolt.
Torque: 7.5 N-m (80 kgf-cm, 66 in.-lbf)
- REINSTALL LH No. 3 TIMING BELT COVER (See INSTALLATION , TIMING BELT )
- RECONNECT UPPER RADIATOR HOSE TO FRONT WATER BYPASS JOINT
- REFILL WITH ENGINE COOLANT (See COOLANT )
- START ENGINE AND CHECK FOR ENGINE COOLANT LEAKS
- REINSTALL V-BANK COVER
