2003 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

Combination Meter: Disassembly

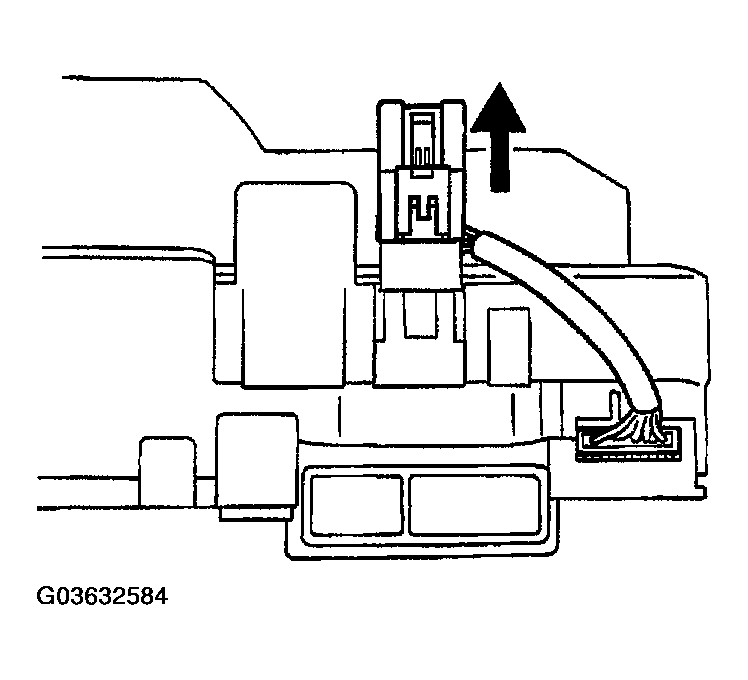

  1. DISCONNECT TELLTALE LIGHT ASSEMBLY CONNECTOR
    Fig 1: Disconnecting Telltale Light Assembly Connector
    G03632584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

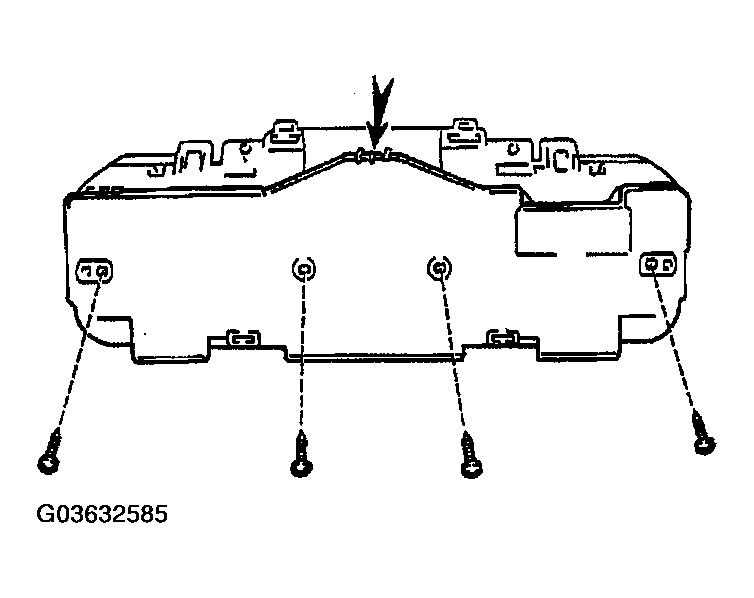

  2. REMOVE METER COVER
    1. Disengage a claw.
    2. Remove the 4 screws and the meter cover.
      Fig 2: Removing Meter Cover
      G03632585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

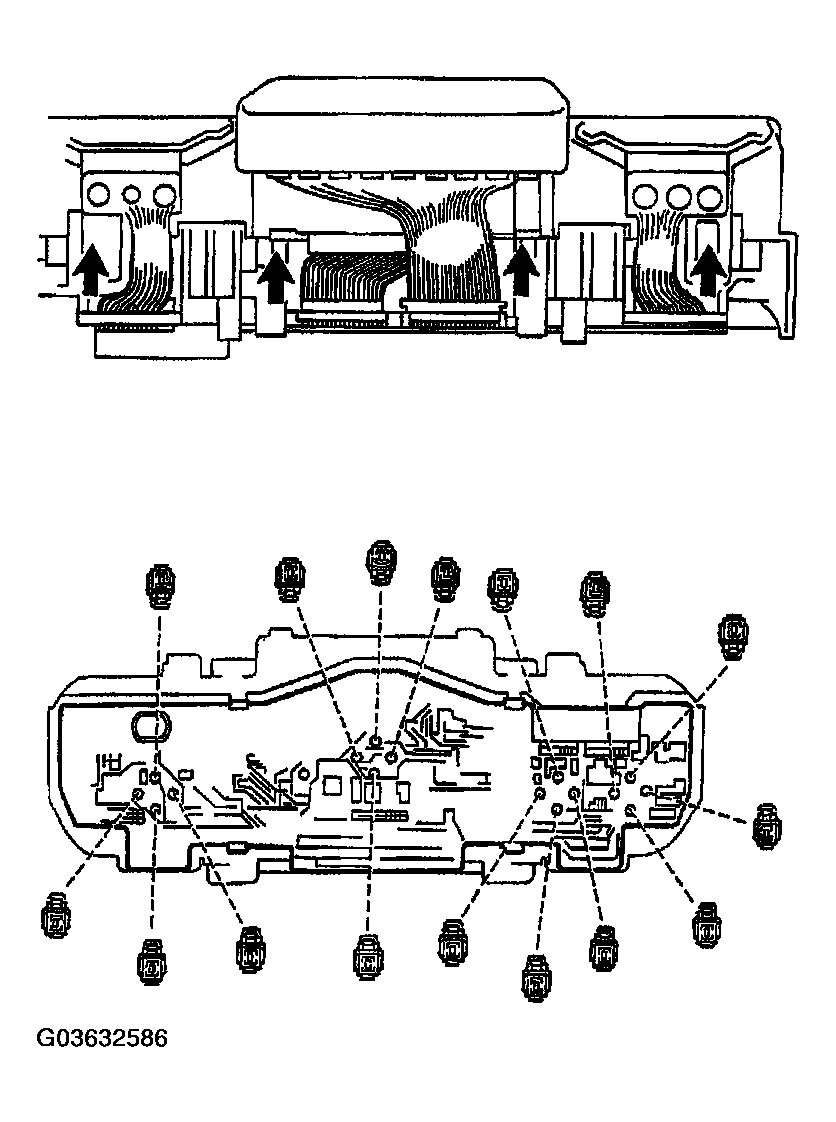

  3. REMOVE ECU PLATE
    1. Disconnect the 4 flat circuit plates.
    2. Remove the 16 clips and the ECU plate.
      Fig 3: Removing ECU Plate
      G03632586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

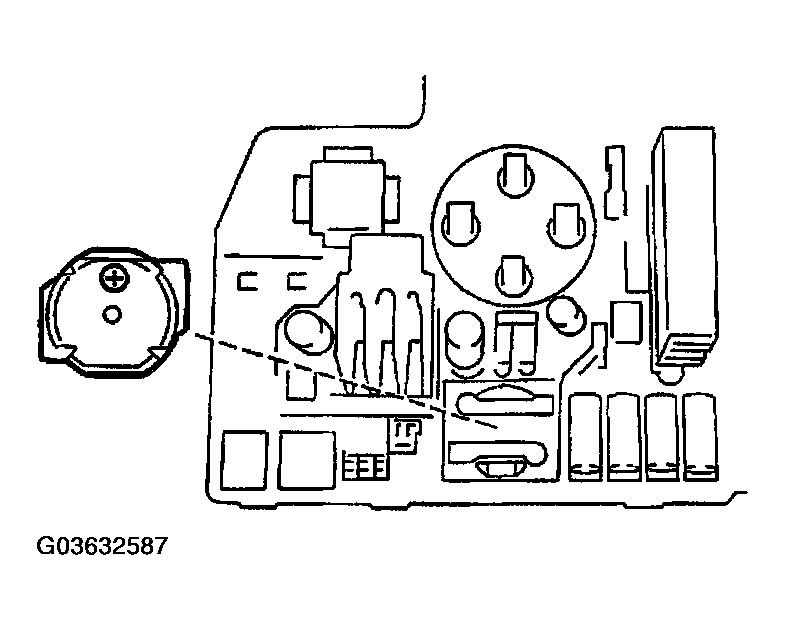

  4. REMOVE BUZZER
    Fig 4: Removing Buzzer
    G03632587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

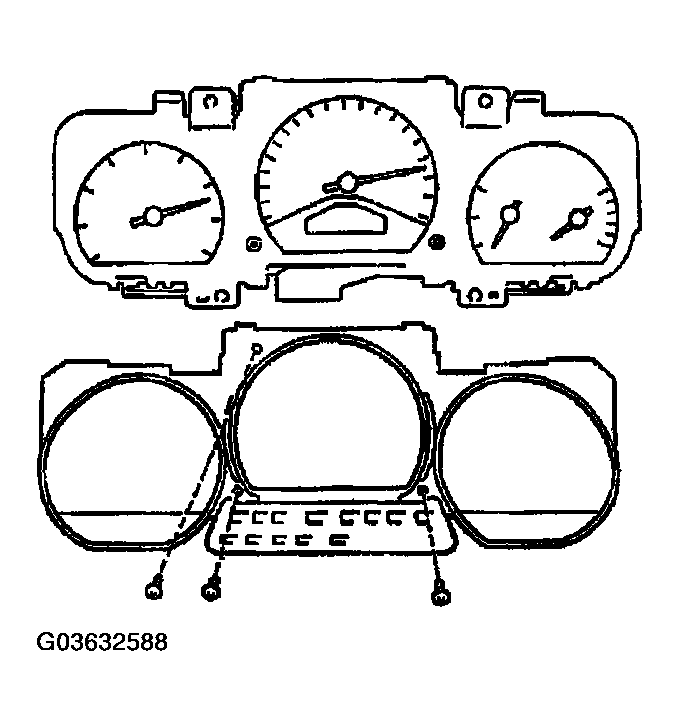

  5. REMOVE METER GLASS

    Remove the 3 screws and the meter glass.

    Fig 5: Removing Meter Glass
    G03632588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

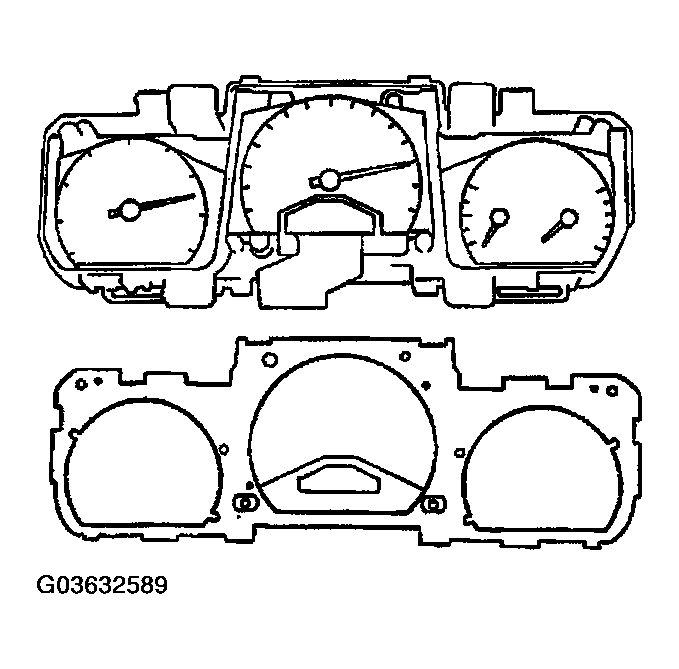

  6. REMOVE DECORATION PLATE
    Fig 6: Removing Decoration Plate
    G03632589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

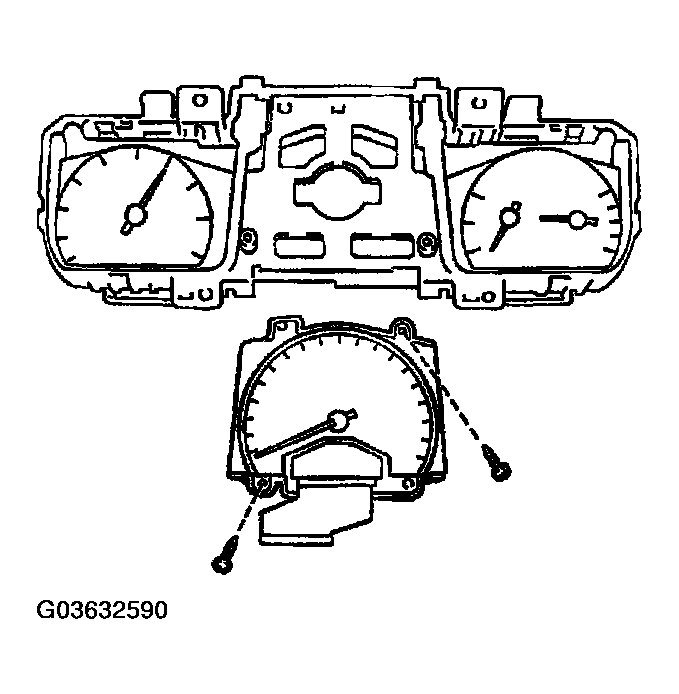

  7. REMOVE SPEEDOMETER

    Remove the 2 screws.

    Fig 7: Removing Speedometer
    G03632590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

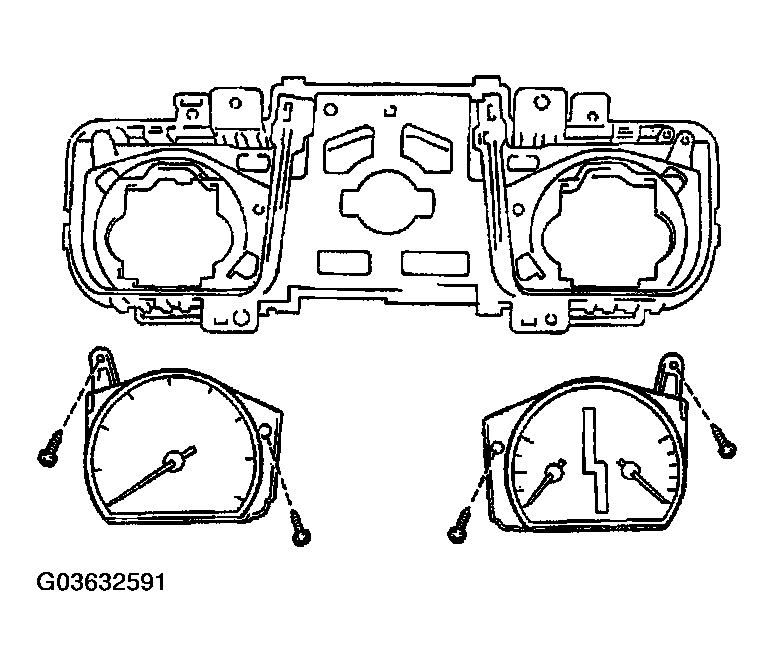

  8. REMOVE TACHOMETER, FUEL RECEIVER GAUGE AND ENGINE COOLANT TEMPERATURE RECEIVER GAUGE

    Remove the 4 screws.

    Fig 8: Removing Tachometer, Fuel Receiver Gauge And Engine Coolant Temperature Receiver Gauge
    G03632591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

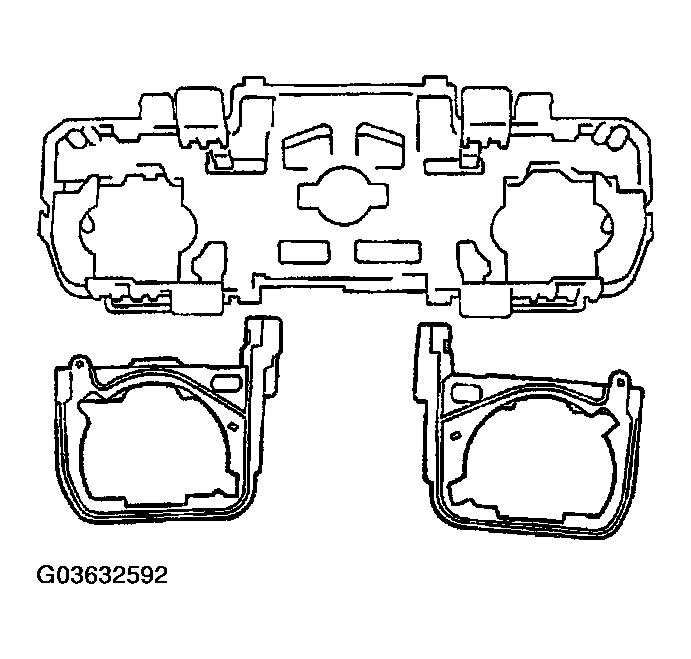

  9. REMOVE COLD CATHODE TUBE WITH PLATE
    Fig 9: Removing Cold Cathode Tube With Plate
    G03632592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
